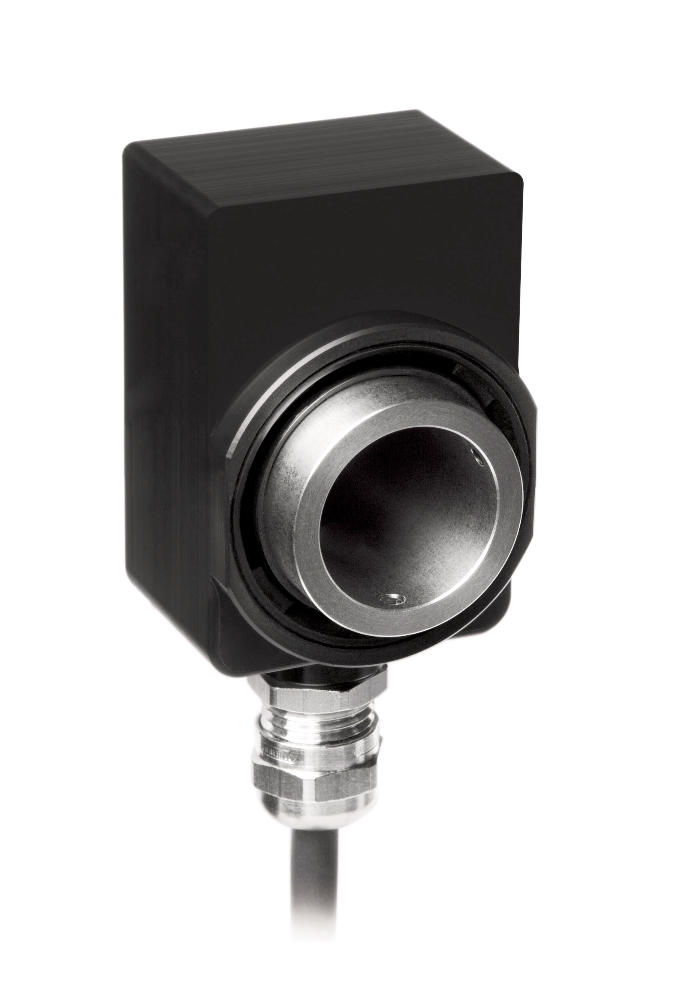

Hollow shaft sensor GS04

System component for AP10S, MA503/2, MA504/1
SIKO Global, Hollow shaft sensor GS04
SIKO Global, Hollow shaft sensor GS04
  • Rotatively measuring sensor with magnetic scanning
  • Pluggable connection to AP10S, AP20S, MA503/2, MA504/1 position indicators
  • Easy hollow-shaft mounting, max. Ø 20 mm
  • IP65 protection class
SIKO Products Inc., Headquarters/Sales North America
+1 734 426-3476 sales.us(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • Purchase order
  • Downloads
  • Accessories

Technical drawing

SIKO Global, Hollow shaft sensor GS04

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
shaft
 rustproof stainless steel
Housing
 plastic
Color
 black, RAL 9005
Speed
≤600  min-1
Cable sheath
 PUR
E15 type of connection
 PVC
E16 type of connection
Cable bending radius
≥52  mm
permanently/flexibly laid (E15 type of connection)
>17  mm
hard-wired (E16 type of connection)
Feature
Technical Specifications
Enhancement
Operating voltage
 supply via downstream electronic unit
Type of connection
 M8 plug connector
6-pole, 1x pin (E15 type of connection)
 flat connector
8-pole, 1x pin (E16 type of connection)
Feature
Technical Specifications
Enhancement
Scanning
 magnetic
polewheel with 18 poles of 5 mm each
Resolution
 depending on downstream electronic unit
Measuring range
 depending on downstream electronic unit
Feature
Technical Specifications
Enhancement
Ambient temperature
 0 …  60 °C
Storage temperature
-20 …  70 °C
Relative humidity
condensation inadmissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP65
EN 60529

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

hollow shaft/
diameter

20

20

20

ø20 mm

RH14

Adapter sleeve

0

others on request

Type of connection

E15

E15

E15

M8 plug connector

suitable for AP04S and AP10S
E16

connector

suitable for MA503/2 and MA504/1

Cable length

00,5

00.5

00.5
m, in intervals of 0.5 m
01.0
01.5
02.0

Your order key

GS04 - 20 - E15 - 00.5
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

Accessories

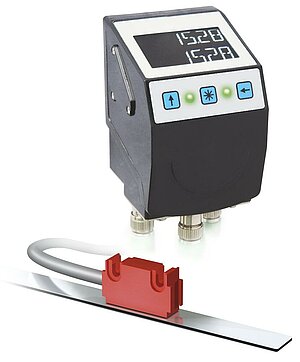

SIKO Global, Electronic position indicator AP10S
Electronic position indicator AP10S

  • Electronic position indicator with plug connection for magnetic sensor

  • Optimally readable backlit display

  • Two-line LCD for target and actual values

Go to Product
SIKO Global, Electronic position indicator AP20S
Electronic position indicator AP20S

  • Electronic position indicator with plug connection for magnetic sensor

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

Go to Product
SIKO Global, Measurement display MA504/1
Measurement display MA504/1

  • Display accuracy max. 10 μm

  • Repeat accuracy max. ±0.01 mm

  • Lowest-power LCD

Go to Product
SIKO Global, Measurement display MA503/2
Measurement display MA503/2

  • Max. display accuracy 10 μm or 1/64 inch

  • Repeat accuracy max. ±0.01 mm

  • Low-power LCD with decimal and fraction-inch function

Go to Product

Scope of delivery

  • GS04
  • Installation Instructions
