Find the right encoder

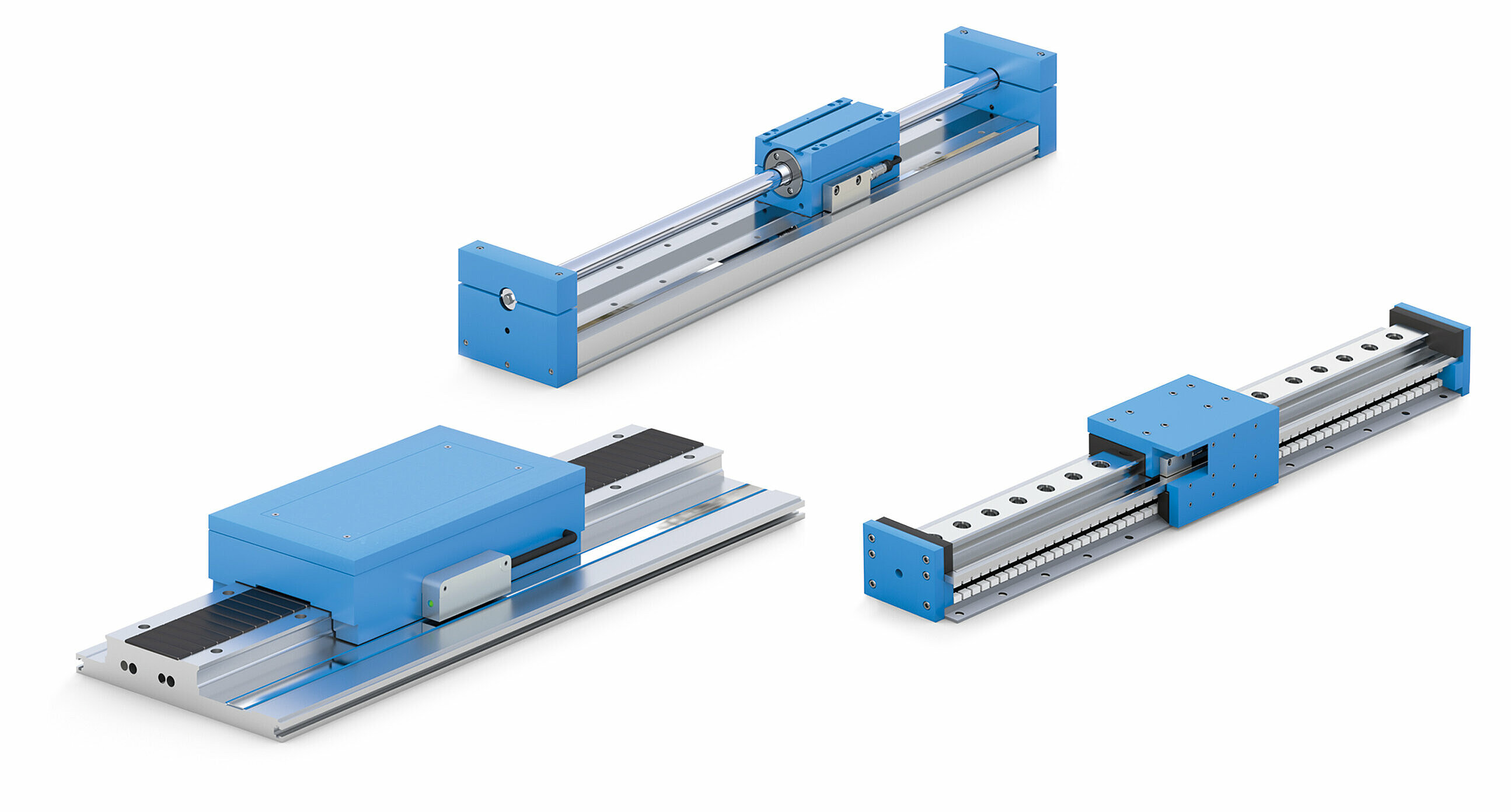

Encoder solutions for linear motors

1

Position and speed detection with incremental, magnetic measuring systems

Fitting Products

1

Position and speed detection with incremental, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products

2

Position and speed detection with absolute, magnetic measuring systems

Fitting Products

3

Position and speed detection using pole sensors

Fitting Products

3

Position and speed detection using pole sensors

Fitting Products
1

Position and speed detection with incremental, magnetic measuring systems

  • Path information either digital or analog in real time for fast and dynamic control
  • Wear-free thanks to non-contact scanning
  • High vibration and shock resistance
  • Various sizes down to circuit board solutions

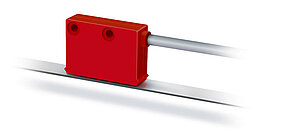

SIKO Global, Magnetic sensor LEC100
Magnetic sensor LEC100

  • Repeat accuracy max. ±1 μm

  • Max. resolution 0.1 µm (LD output circuit)

  • Reading distance 0.1 … 0.4 mm

Go to Product

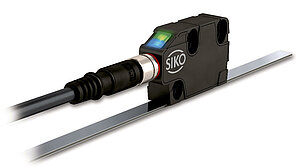

SIKO Global, Magnetic sensor LEC160
Magnetic sensor LEC160

  • Repeat accuracy max. ±1 μm

  • Max. resolution 0.1 µm (LD output circuit)

  • Reading distance 0.1 … 0.8 mm

Go to Product

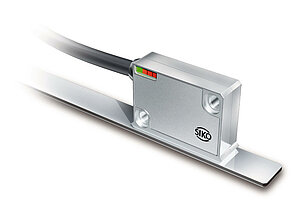

SIKO Global, Magnetic sensor LEC200
Magnetic sensor LEC200

  • Repeat accuracy max. ±2 μm

  • Max. resolution 0.2 µm (LD output circuit)

  • Reading distance 0.1 … 1 mm

Go to Product

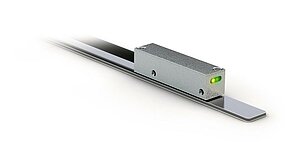

SIKO Global, Magnetic sensor LE100/1
Magnetic sensor LE100/1

  • Repeat accuracy max. ±1 μm

  • LED status display

  • Works with MB100/1 magnetic tape

Go to Product

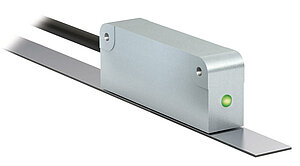

SIKO Global, Magnetic sensor MSK1000
Magnetic sensor MSK1000

  • Max. resolution 0.2 μm

  • Repeat accuracy ±1 μm

  • LED status display

Go to Product

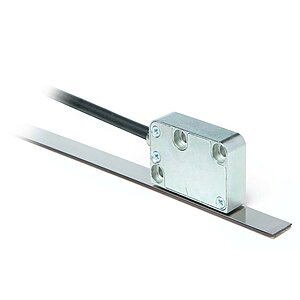

SIKO Global, Magnetic sensor MSK200/1
Magnetic sensor MSK200/1

  • Max. resolution 0.4 μm

  • Works with MB200/1 magnetic tape, MR200 magnetic ring, MBR200 magnetic tape ring

  • Reading distance ≤1 mm

Go to Product
SIKO Global, Magnetic sensor MSK320
Magnetic sensor MSK320

  • Max. resolution 12.5 μm

  • max. resolution 0.006° with MR320 or MBR320 (250 poles)

  • Repeat accuracy ±0.04 mm

Go to Product
SIKO Global, Magnetic sensor MSC500
Magnetic sensor MSC500

  • max. resolution 1 μm

  • max. 200000 pulses/revolution in conjunction with MR500 or MBR500 (160 poles)

  • Repeat accuracy ±0.005 mm

Go to Product
2

Position and speed detection with absolute, magnetic measuring systems

  • Precise, repeatable and robust encoders
  • Wear-free thanks to non-contact scanning
  • No referencing necessary after power cut-off
  • Industry 4.0-ready

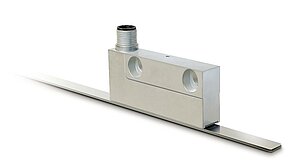

SIKO Global, Magnetic sensor MSA111C
Magnetic sensor MSA111C

  • Additional analog real-time signal output Sin/Cos 1 VSS for highly dynamic control (SSI/RS485)

  • Repeat accuracy 2 μm

  • System accuracy up to 10 μm

Go to Product
SIKO Global, Magnetic sensor MSA213C
Magnetic sensor MSA213C

  • High absolute resolution 1 μm

  • Repeat accuracy max. ±1 μm

  • Reading distance ≤0.8 mm

Go to Product
3

Position and speed detection using pole sensors

  • Use of the motor magnets as a scale for speed and position
  • Adaptation of pole sensors to the pole length of the motor
  • Additional reading of the pole type (north/south) for motor commutation possible
  • Extremely compact
SIKO Global, Magnetic sensor MSA111C
Magnetic sensor MSA111C

  • Additional analog real-time signal output Sin/Cos 1 VSS for highly dynamic control (SSI/RS485)

  • Repeat accuracy 2 μm

  • System accuracy up to 10 μm

Go to Product
SIKO Global, Magnetic sensor MSA213C
Magnetic sensor MSA213C

  • High absolute resolution 1 μm

  • Repeat accuracy max. ±1 μm

  • Reading distance ≤0.8 mm

Go to Product
