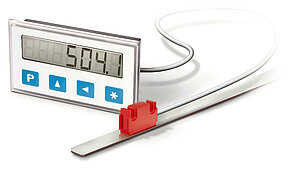

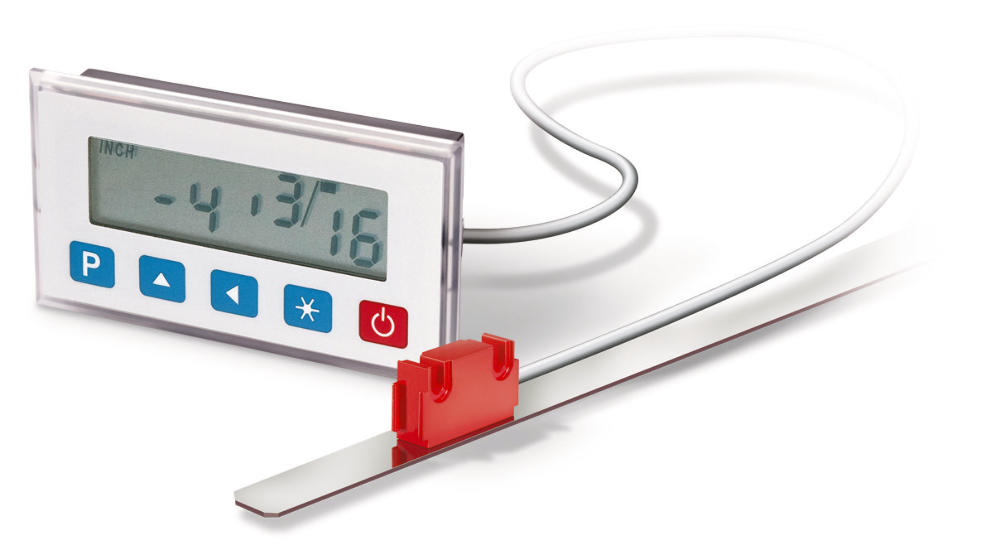

Measurement display MA503/2
Quasi-absolute, mains-independent LCD display, display accuracy 10 μm
- Max. display accuracy 10 μm or 1/64 inch
- Repeat accuracy max. ±0.01 mm
- Low-power LCD with decimal and fraction-inch function
- Reading distance ≤2 mm
- Incremental measurement and reset function
- Direct reference/offset value input
- Battery-buffered memory
- Battery operation
- MS500H sensor pluggable
Ben
King
Inside Sales
Edward
Stuart
Product Manager Business Unit MagLine
Technical drawing
Technical Specifications
Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing design
built-in housing, plastic
Control panel excerpt 92+0.8 x 45+0.6
Feature
Technical Specifications
Enhancement
Operating voltage
3 V DC
reverse polarity protection
Current consumption
~220 µA at 3 V DC
Display/display range
Low-power LCD, ~13 mm high
decimal until 10 µm, inch fraction to 1/64 inch
-1999999 … 1999999
Battery monitoring
<1.1 V
low-batt symbol
Type of connection
integrated battery compartment
supply
Feature
Technical Specifications
Enhancement
Resolution
0.01, 0.05, 0.1, 1 mm
programmable angle display
0.01, 0.0625, 0.03125, 0.015625 in
System accuracy
±(0.1 + 0.01 x L) mm, L in m at TU = 20° C
±(0.05 + 0.01 x L) mm, L in m at TU = 20° C
optional
Repeat accuracy
±0.01 mm
±1 digit
Travel speed
≤5 m/s
Feature
Technical Specifications
Enhancement
Ambient temperature
… 60 °C
Storage temperature
-10 … 70 °C
Relative humidity
≤95 %
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP40 whole device
EN 60529
IP54 at the front
EN 60529
Purchase order
Scope of delivery
- MA503/2
- Installation Instructions
