Find the right sensor technology

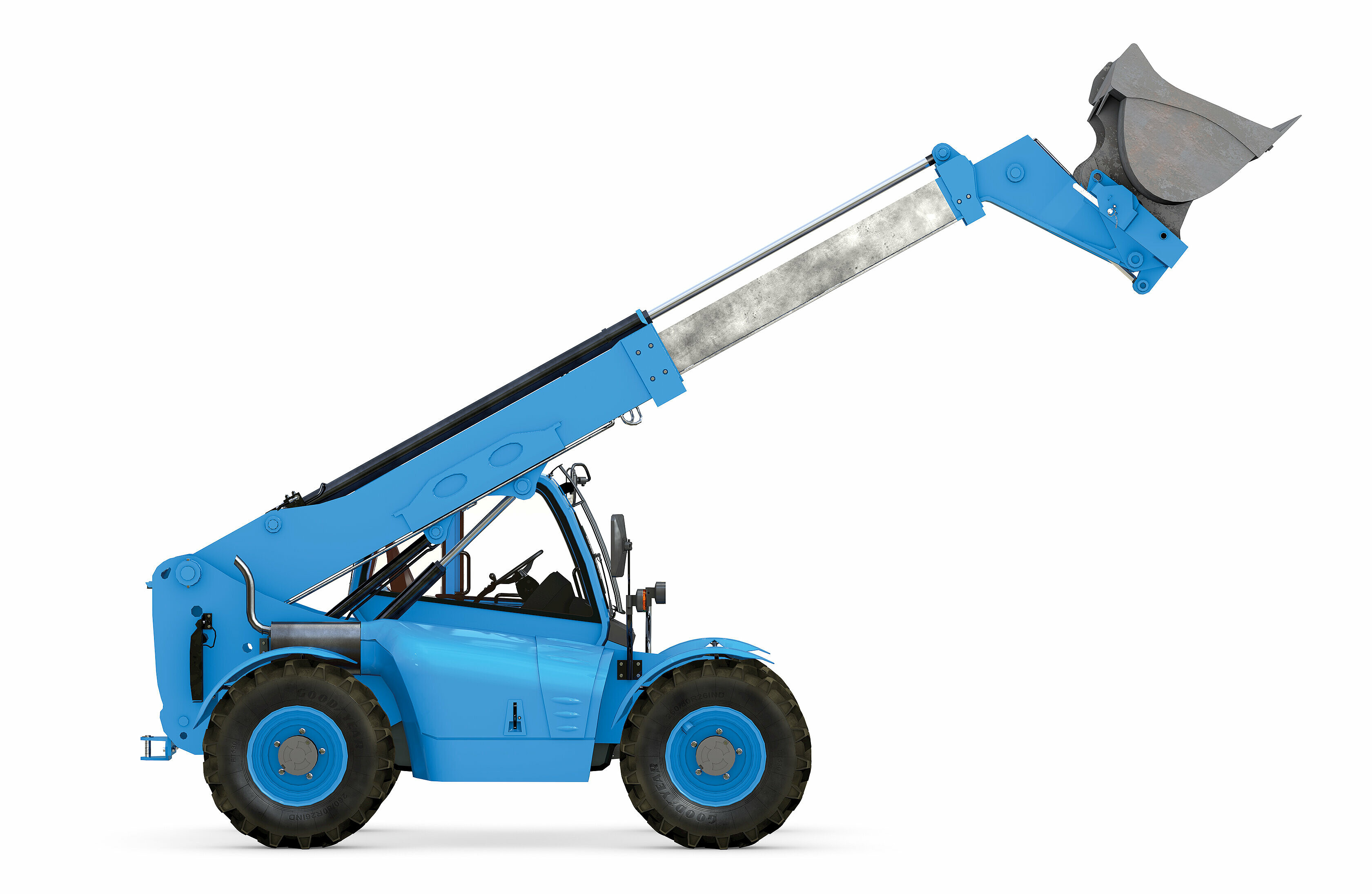

SIKO sensor solutions for telescopic loaders

1

Detection of the mast installation angle

Fitting Products

1

Detection of the mast installation angle

Fitting Products

2

Position detection of the telescope

Fitting Products

2

Position detection of the telescope

Fitting Products

3

Position detection of the bucket

Fitting Products

3

Position detection of the bucket

Fitting Products

4

Tilt detection of the entire vehicle

Fitting Products

4

Tilt detection of the entire vehicle

Fitting Products
1

Detection of mast installation angles

  • Cylinder-integrated: no drilling of the piston necessary
  • Rotary: robust single-turn encoder for angle detection
  • Inclination: inclination sensors for precise detection of the installation angle
SIKO Global, Absolute encoder WV3600MR
Absolute encoder WV3600MR

  • Smallest safety multiturn rotary encoder for mobile machines

  • Single turn or multiturn variant available

  • SIL2 (IEC 61508) PLd (DIN EN ISO 13849) certified (in preparation)

Go to Product
SIKO Global, Inclinometer IMS360
Inclinometer IMS360

  • 6 Axis Inertial Measurement Unit (IMU)

  • Compensation of external acceleration thanks to innovative sensor fusion

  • Dynamically compensated inclination measurement (360° or ±90°)

Go to Product
SIKO Global, Draw-wire encoder SGH25
Draw-wire encoder SGH25

  • Measuring range 0 … 2500 mm (98.42 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

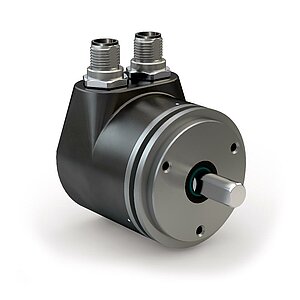

SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Inclinometer IKM360R
Inclinometer IKM360R

  • Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

  • Resolution of 0.001°

  • Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product
2

Position detection of telescopes

  • Cylinder-integrated: no drilling of the piston necessary
  • Compact draw-wire encoders enable simple integration in the boom, even with long measuring ranges
  • Safe and intelligent sensors enable flexible load torque limitation
SIKO Global, Draw-wire encoder SGH25
Draw-wire encoder SGH25

  • Measuring range 0 … 2500 mm (98.42 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

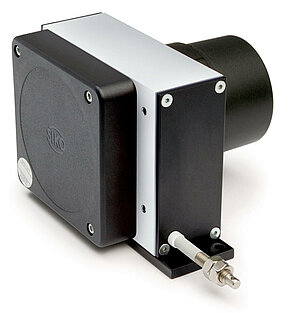

SIKO Global, Draw-wire encoder SG61
Draw-wire encoder SG61

  • Robust design

  • Easy mounting

  • Measurement lengths up to max. 6000 mm

Go to Product

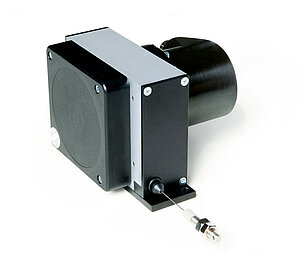

SIKO Global, Draw-wire encoder SGP/1
Draw-wire encoder SGP/1

  • Robust design

  • Measurement lengths up to max. 6000 mm

  • Potentiometer, voltage or power output

Go to Product

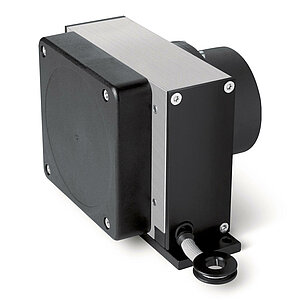

SIKO Global, Draw-wire encoder SG121
Draw-wire encoder SG121

  • Robust design

  • Easy mounting

  • Measurement lengths up to max. 12000 mm

Go to Product
3

Position detection of buckets

  • Cylinder-integrated: integration of the sensor in the hydraulic cylinder without drilling the piston
  • Inclination: flexible mounting, even outside the axis of rotation
  • Always precise position detection even under harsh environmental influences such as shock and vibrations
SIKO Global, Inclinometer IMS360
Inclinometer IMS360

  • 6 Axis Inertial Measurement Unit (IMU)

  • Compensation of external acceleration thanks to innovative sensor fusion

  • Dynamically compensated inclination measurement (360° or ±90°)

Go to Product
SIKO Global, Draw-wire encoder SGH10
Draw-wire encoder SGH10

  • Measuring range 0 … 1000 mm (39.37 inches)

  • Absolute measuring system

  • CANopen interface, analog: Current and voltage

Go to Product
SIKO Global, Draw-wire encoder SGH10L
Draw-wire encoder SGH10L

  • Measuring range 0 … 1000 mm (39.37 inches)

  • almost no stoke lost thanks to lateral mounting

  • Absolute measuring system

Go to Product
4

Tilt detection of entire vehicles

  • Reliable monitoring of stability
  • High accuracy even with strong interference and over the entire temperature and measuring range
  • High protection class IP6K9K makes it ideal for harsh environmental conditions
SIKO Global, Inclinometer IMS360
Inclinometer IMS360

  • 6 Axis Inertial Measurement Unit (IMU)

  • Compensation of external acceleration thanks to innovative sensor fusion

  • Dynamically compensated inclination measurement (360° or ±90°)

Go to Product
SIKO Global, Inclinometer IKM360R
Inclinometer IKM360R

  • Redundant one-axis or two-axis inclination sensor (0 … 360° oder -80 … +80°)

  • Resolution of 0.001°

  • Accuracy ±0.8°, over the entire measuring and temperature ranges

Go to Product
