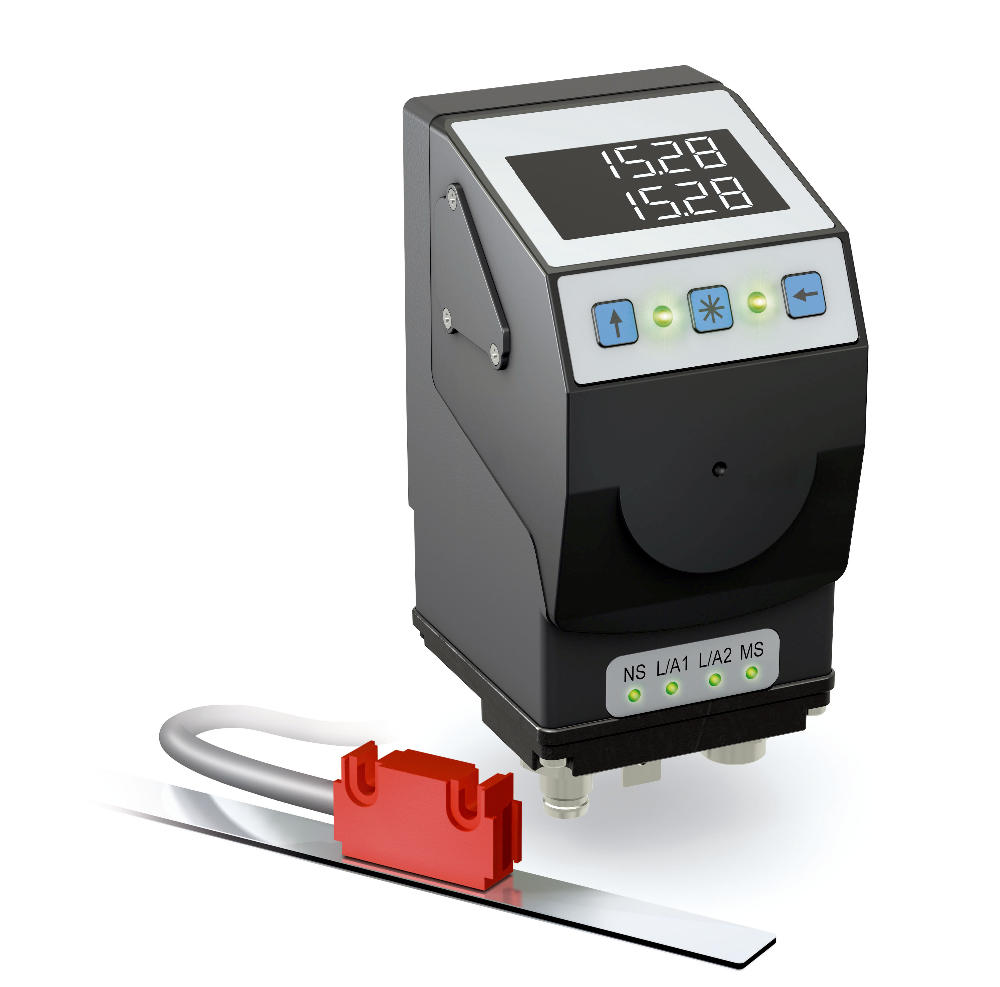

Electronic position indicator AP20S

Absolute linear adjustments, integrated Industrial Ethernet interface
SIKO Global, Electronic position indicator AP20S
SIKO Global, Electronic position indicator AP20S
Absolute position display with communication interface for linear or slide adjustment intuitively guides the operator to the correct machine setting when changing products or changing formats. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be mad.
  • Electronic position indicator with plug connection for magnetic sensor
  • Integrated Industrial-Ethernet-Fieldbus
  • Backlit two-row LCD
  • Display of target and actual value displays with integrated alignment
  • Display accuracy up to 0.01 mm
  • Absolute function via internal backup
  • Robust sensor technology unit thanks to magnetic scanning
  • User guidance through status LEDs
  • IP53 protection class, IP65 as an option
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • System components
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Electronic position indicator AP20S

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.2 kg
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
~100 mA
Battery service life
~8 Year(s)
Parameter storage
106 cycles
also applies to calibration operations
Display/display range
6-digit LCD 14-segment, ~8 mm high
decimal points, 2 rows, special characters (backlit LED red/white)
-199999 … 999999
expanded display area to -999999
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
incremental measurement function, parameterizing, resetting
Interface
EtherNet/IP
PROFINET
EtherCAT
POWERLINK
Type of connection
1x M8-plug connector (A-coded)
4-pole, 1x pin
1x M8-plug connector (A-coded)
6-pole, 1x socket (sensor)
2x M12 plug connectors (D-coded)
4-pole, 2x socket
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Scanning
external sensor
Resolution
0.01 mm
use with MS500H
720 Increments/revolution
displayed value/rotation freely configurable (use with GS04)
System accuracy
±35 µm
use with MS500H
Measuring range
±10485 m
use with MS500H
≤233016 rotation(s)
use with GS04
Feature
Technical Specifications
Enhancement
Ambient temperature
… 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Protection category
IP53
EN 60529, only with mating connector
IP65
EN 60529, only with mating connector
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Ethernet

Signal
 PIN
Tx+
 1
Rx+
 2
Tx-
 3
Rx-
 4

Operating voltage

Signal
 PIN
reserved
 1
reserved
 2
+UB
 3
GND
 4

Industry 4.0

In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 Battery voltage
 Battery change planning
"Target position "
 Presence, distance, alignment sensor
 Counting error

System components

SIKO Global, Electronic position indicator AP20S
Electronic position indicator AP20S
SIKO Global, Magnetic sensor MS500H
Magnetic sensor MS500H
SIKO Global, Magnetic tape MB500/1
Magnetic tape MB500/1
SIKO Global, Magnetic ring MR500
Magnetic ring MR500
SIKO Global, Magnetic band ring MBR500
Magnetic band ring MBR500
SIKO Global, Hollow shaft sensor GS04
Hollow shaft sensor GS04

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

interface/
protocol

ECT

ECT

ECT

EtherCAT

EIP

EtherNet/IP

EPL

POWERLINK

EPN

PROFINET

Protection category

IP53

IP53

IP53

IP53

IP65

IP65

Sight window

SF

SF

SF

front foil

K

plastic

impact protection

Your order key

AP20S - ECT - IP53 - SF - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

ECT

PDF

DE
EN

EIP

PDF

DE
EN

EPL

PDF

DE
EN

EPN

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN | FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

EPL

PDF

EN

EIP

PDF

EN

EPN

PDF

EN

CKCA conformity declarations

PDF

EN

Accessories

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
SIKO Global, Battery unit ZB1027
Battery unit ZB1027

  • Unit of battery and holder with contacts

  • For easy und reliable replacement of the backup battery

Go to Product
SIKO Global, Cable extension KV04S1
Cable extension KV04S1

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, angular pin
87600
Mating connector, 4-pole, pin
87601

Comparable products

SIKO Global, Electronic position indicator AP10S
Electronic position indicator AP10S

  • Electronic position indicator with plug connection for magnetic sensor

  • Optimally readable backlit display

  • Two-line LCD for target and actual values

Go to Product
SIKO Global, Electronic position indicator AP20
Electronic position indicator AP20

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product

Scope of delivery

  • AP20S
  • Installation Instructions

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
