Sensor solutions for hydraulic cylinders

Header Graphic Illustration Construction Machinery at Work

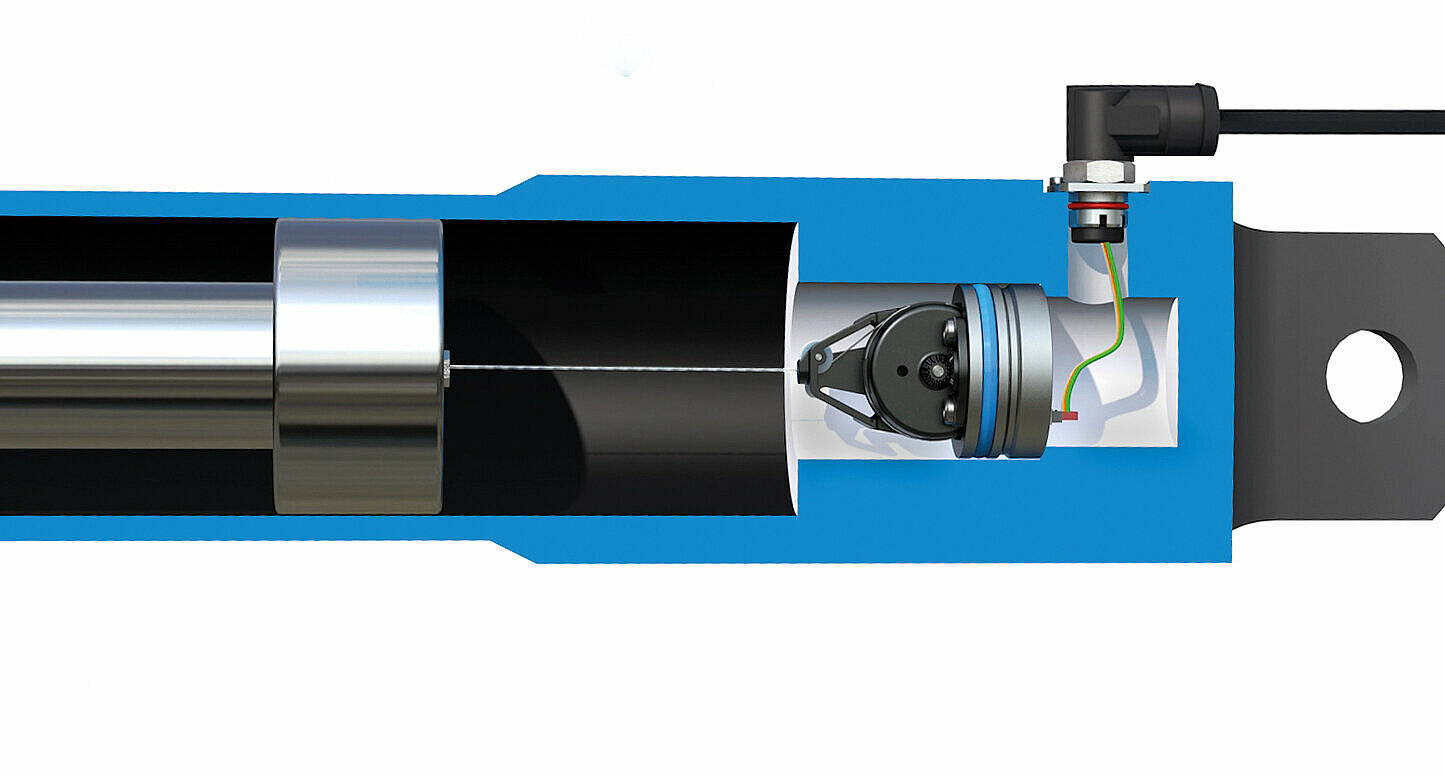

Developed to meet the requirements of mobile hydraulics, SGH sensors provide maximum robustness and durability. Fully integrated into a hydraulic cylinder, the sensors are optimally protected. The unique functional principle achieves an unprecedented degree of compactness. Use in safety-critical applications is no problem either with the safety variants with redundant outputs or CANopen safety interface.

August Meyers

Manager Business Unit Mobile Automation

+1 734 426-3476 august.meyers(at)siko-global.com

Edward Stuart

Product Manager Business Unit MagLine

+1 734 426-3476 edward.stuart(at)siko-global.com

Find suitable position sensors

SIKO position sensors for hydraulic cylinders

Position and speed detection of pistons

Complete integration of the sensor in hydraulic cylinders with measuring lengths of up to 5 m
No hollow drilling of the piston necessary
Durable & robust – developed according to the requirements of mobile hydraulics

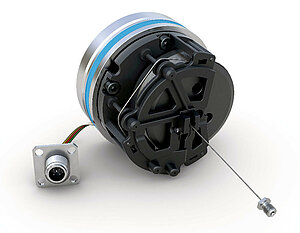

Measuring range 0 … 1000 mm (39.37 inches)

Absolute measuring system

CANopen interface, analog: Current and voltage

Go to Product

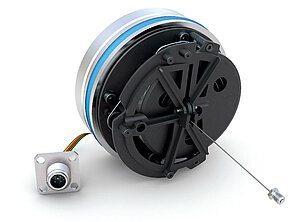

Measuring range 0 … 1000 mm (39.37 inches)

almost no stoke lost thanks to lateral mounting

Absolute measuring system

Go to Product

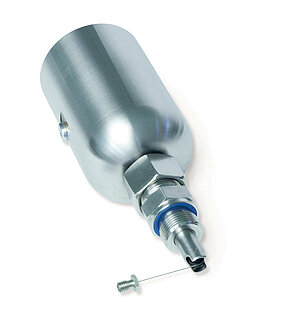

Measuring range 0 … 2500 mm (98.42 inches)

Absolute measuring system

Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

Measuring range 0 … 5000 mm (196.85 inches)

Absolute measuring system

Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

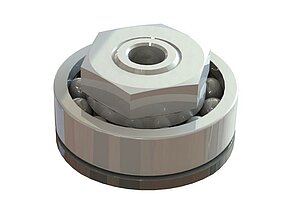

To compensate for the rotary movement of piston heads

To compensate for the rotary movement of a piston head in piston accumulators
For draw-wire encoders of the SGH series
Simple integration into cylinder design

to compensate for the rotary movement of the piston head in piston accumulators or hydraulic cylinders

suitable for speed and position capturing

for wire-actuated encoders in the SGH series

Go to Product

Extension of measuring cables

For extending a measuring cable or the distance to the measuring object (the measuring path is not extended)
For draw-wire encoders of the SGH series
Simple mounting
