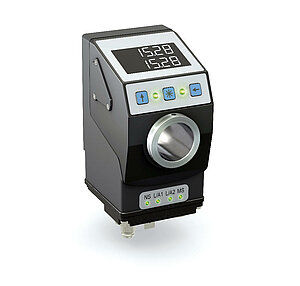

Electronic position indicator AP10S

With bus interface, for direct linear length measurement
SIKO Global, Electronic position indicator AP10S
SIKO Global, Electronic position indicator AP10S
SIKO Global, Electronic position indicator AP10S
SIKO Global, Electronic position indicator AP10S
Absolute position display with communication interface for linear or slide adjustment intuitively guides the operator to the correct machine setting when changing products or changing formats. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be made. The IO link interface enables easy and reliable integration into modular machines.
  • Electronic position indicator with plug connection for magnetic sensor
  • Optimally readable backlit display
  • Two-line LCD for target and actual values
  • Reset, incremental measurement, offset via keyboard
  • Integrated RS485 interface, CAN bus or IO-Link as an option
  • Display accuracy up to 0.01 mm
  • Absolute function via internal backup
  • User guidance via bicolor status LEDs
  • IP53 protection class, IP65 as an option
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • System components
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Electronic position indicator AP10S

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.11 kg
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black, RAL 9005
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Current consumption
~30 mA
when operated with LEDs additionally ~3 mA per LED
Power input
~0.72 VA
max. power supply of the power supply unit used: 100 VA. The power supply used corresponds to SELV/Limited Energy (IEC 61010-1) or SELV/LPS (IEC 60950-1) or Class 2 (UL 1310).
Battery service life
~8 Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
6-digit LCD 14-segment, ~8 mm high
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
incremental measurement function, parameterizing, resetting
Interface
RS485, CANopen, IO-Link
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pin, 1x socket, 1x pin (RS485, CANopen)
1x M8-plug connector (A-coded)
4-pin, 1x pin (IO-Link)
1x M8-plug connector (A-coded)
6-pole, 1x socket (sensor)
grounding via flat male tab 6.3 mm or terminal lug
Feature
Technical Specifications
Enhancement
Scanning
external sensor
Resolution
720 Increments/revolution
displayed value/rotation freely configurable (use with GS04)
0.01 mm
use with MS500H
System accuracy
±35 µm
use with MS500H
Measuring range
±20971 m
use with MS500H
≤233016 rotation(s)
use with GS04
Approval
UL
UL 61010-1, File No. E503367
Feature
Technical Specifications
Enhancement
Ambient temperature
… 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
Industry immunity requirement, class B emission limit, shielded line required
Safety regulations
DIN EN 61010-1 (VDE 0411-1), UL 61010-1
Limited power supply according to DIN EN 61010-1 Section 9.4.
Protection category
IP53
EN 60529, with mating connectors (degree of protection not tested by UL)
IP65
EN 60529, with mating connectors (degree of protection not tested by UL)
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Interfaces

RS485
 CAN-Bus
 IO-Link
 PIN
TxRx-/DÜB
 CANL
 L+ (+UB)
 1
TxRx+/DÜA
 CANH
 nc
 2
+UB
 +UB
 L- (GND)
 3
GND
 GND
 C/Q
 4

Industry 4.0

In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 Battery voltage
 Battery change planning
"Target position "
 Presence, distance, alignment sensor
 Counting error

System components

SIKO Global, Electronic position indicator AP10S
Electronic position indicator AP10S
SIKO Global, Magnetic sensor MS500H
Magnetic sensor MS500H
SIKO Global, Magnetic tape MB500/1
Magnetic tape MB500/1
SIKO Global, Magnetic ring MR500
Magnetic ring MR500
SIKO Global, Magnetic band ring MBR500
Magnetic band ring MBR500
SIKO Global, Hollow shaft sensor GS04
Hollow shaft sensor GS04

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

interface/
protocol

CAN

CAN

CAN

CANopen

S3/09

RS485/SIKONETZ5

IOL

IO-Link

Protection category

IP53

IP53

IP53

IP53

IP65

IP65

Sight window

SF

SF

SF

front foil

K

plastic

impact protection

Your order key

AP10S - CAN - IP53 - EX - SF - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE
EN

SIKONETZ5

PDF

DE
EN

IO-Link

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN | FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

UL

PDF

EN

CKCA conformity declarations

PDF

EN

Accessories

SIKO Global, Easy touch control ETC5000
Easy touch control ETC5000

  • Control system for position indicators and actuators

  • Intuitive touchscreen control concept for format adjustment

  • up to 31 devices can be actuated

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product

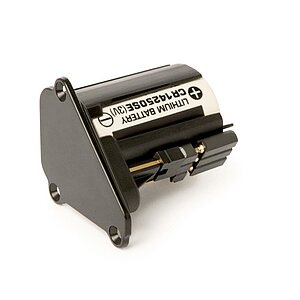

SIKO Global, Battery unit ZB1027
Battery unit ZB1027

  • Unit of battery and holder with contacts

  • For easy und reliable replacement of the backup battery

Go to Product
SIKO Global, Cable extension KV04S1
Cable extension KV04S1

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Bus terminating connector, 4-pole, pin
BAS-0005

Comparable products

SIKO Global, Electronic position indicator AP05
Electronic position indicator AP05

  • Electronic position indicator with bus/data interface

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product
SIKO Global, Electronic position indicator AP20
Electronic position indicator AP20

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product

Scope of delivery

  • AP10S
  • Documentation on CD
  • Installation Instructions

SIKO Application Reports

Labeling machine with SIKO position indicators and positioning drives

Pharma 4.0 with intelligent size changeover

“Size changeover" is not necessarily a term that immediately makes people stop and pay attention in the pharmaceutical industry. However, considering the challenges in pharmaceutical manufacturing, which are characterized by cost and competitive pressure as well as strict regulations, intelligent…

Learn more
Packaging machine by Zahoransky company

Packaging machine from ZAHORANSKY benefits from bus-compatible SIKO position indicator for size changeover

“Increase system availability. Reduce setup times. Minimize waste. Ensure product safety.” These are the requirements for optimizing size changeover in production systems. Intelligent systems that make product changes faster and more ergonomic are in demand. The same applies to ZAHORANSKY, the…

Learn more
Packsys Global FlexSeamer machine for tube production

Process Reliability in Tube Production: How PackSys Global Optimizes Production Using SIKO Technology

Large tubes, small tubes, long tubes, thick tubes, flat tubes, miniature tubes - tubes are produced in countless sizes and formats for oral care, cosmetics, and in the pharmaceutical industry. The machines that produce the packaging for toothpaste and cosmetic products come from PackSys Global AG in…

Learn more

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
SIKO positioning systems for packaging technology
Packaging Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
