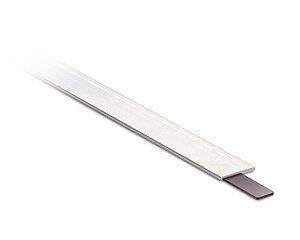

Magnetic tape MB500/1
Incrementally coded scale, pole length 5 mm
- Easy adhesive mounting, self-assembly possible
- Reels up to 100 m available
- Linearity deviation up to ±35 μm
Technical drawing
Technical Specifications
Dimensions
Reference points [m] |
|
Fixed distance X |
0.05 |
Periodic P |
0.2, 0.3, 0.5 |
Onetime E |
0.05, 0.1, 0.2, 0.5, 1, 2 |
Purchase order
Ordering information
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
S |
see the drawing of the sensor used |
B |
10 mm (forerun and overrun) |
1 |
7 |
Product configuration
Feature
Select specifications
Enhancement
length
000.10
tapewidth
10/10
Accuracy class
50
material carrier tape
St
adhesive carrier tape
TM
cover strip
AM
masking tape width
10.0
reference point
O
reference point position
0.05
reference point position
0.2

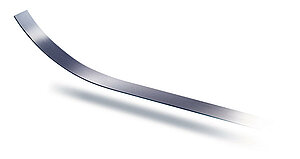

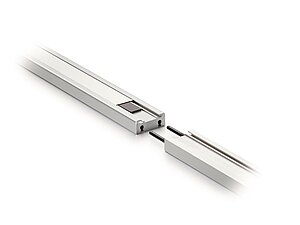

Accessories
Scope of delivery
- MB500/1
