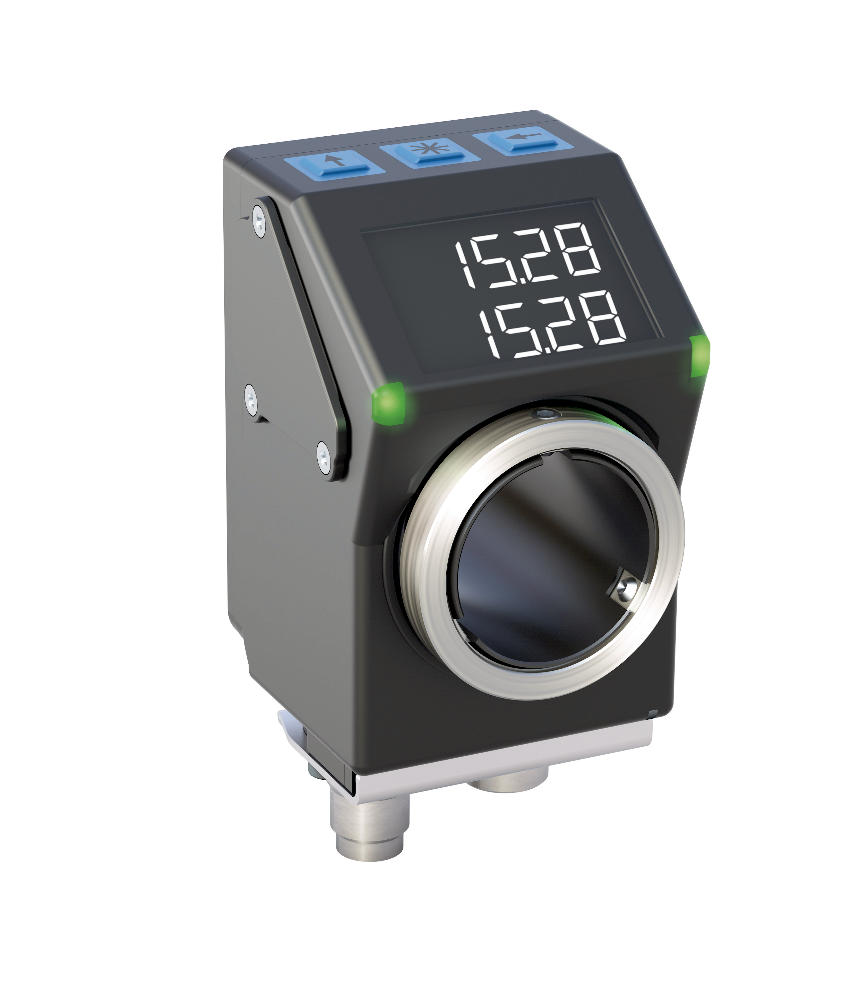

Electronic position indicator AP05

With bus interface
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
SIKO Global, Electronic position indicator AP05
The AP05 position indicator guides the user intuitively to the correct machine setting in the case of product or format change. The optimized backlit display indicates target values and actual values straight to the point. Two LEDs show the machine operator precisely the direction whereto the adjustment is to be performed.The AP05 helps avoid wrong machine settings and enhances process safety of flexible production machines.
  • Electronic position indicator with bus/data interface
  • Backlit two-row LCD
  • Display of target and actual value displays with integrated alignment
  • User guidance through status LEDs
  • Hollow shaft with  Ø 20 mm and clamping ring made of stainless steel
  • Enhanced shock resistance owing to protective display glass
  • Integrated RS485 interface, CAN bus or IO-Link as an option
  • Robust sensor technology unit thanks to magnetic scanning
  • Mechanically compatible with the AP04 and DA04 position indicators
  • IP53 protection class, IP65 as an option
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Electronic position indicator AP05

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.07 kg
Shaft
plastic
Housing
reinforced plastic
plug thread, nickel-plated brass/cover, metal ground connection
Color
black, RAL 9005
clamping ring
rustproof stainless steel
Speed
≤500 min-1
Cable sheath
PUR
E15X, E12X connection type
Cable bending radius
≥30 mm
permanently laid

Schnittstelle CANopen

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
~30 mA
Battery service life
~8 Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
CANopen
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
grounding via flat connector 6.3 mm

Schnittstelle RS485

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
reverse polarity protection
Current consumption
~30 mA
Battery service life
~8 Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
RS485
no galvanic isolation
Type of connection
2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
grounding via flat connector 6.3 mm

Schnittstelle IO-Link

Feature
Technical Specifications
Enhancement
Operating voltage
18 … 30 V DC
reverse polarity protection
Current consumption
~30 mA
Battery service life
~8 Year(s)
Parameter storage
105 cycles
also applies to calibration operations
Display/display range
5-digit LCD 7-segment, ~6 mm height
decimal points, 2 rows, special characters (backlit LED red/white)
Special character
cw arrow, ccw arrow, incremental measurement, battery
Status display
2x two-color LED (red/green)
position status, configurable
Keys
chain dimension function, parameterization, calibration
Interface
IO-Link version 1.1
according to IEC 61131-9 V1.1.2, incl. Package 2015 & Corrigendum
Type of connection
1x M8-plug connector (A-coded)
4-pole, 1x pin (EX connection type)
1x M12-plug connector (A-coded)
4-pole, 1x pin (E12X connection type)
grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Scanning
magnetic
Resolution
720 Increments/revolution
displayed value/rotation freely configurable
Measuring range
≤932067 rotation(s)
Feature
Technical Specifications
Enhancement
Ambient temperature
… 60 °C
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61326-1
immunity requirement of industrial applications, emission limit class B
Safety regulations
DIN EN 61010-1 (VDE 0411-1), UL 61010-1
Limited power supply according to DIN EN 61010-1 Section 9.4.
Protection category
IP53
EN 60529, in the fitted condition, with mating connector mounted
IP65
EN 60529, in the fitted condition, with mating connector mounted
Shock resistance
≤500 m/s2, 11 ms
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks
Vibration resistance
≤100 m/s2, 10 … 2000 Hz
EN 60068-2-6, 3 axes, each 10 cycles

More information

pin assignment

Interfaces

IO-Link
 RS485
 CAN
 PIN
L+ (+UB)
 TxRx-/DÜB
 CANL
 1
nc
 TxRx+/DÜA
 CANH
 2
L- (GND)
 +24 V DC
 +24 V DC
 3
C/Q
 GND
 GND
 4

Industry 4.0

In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 Battery voltage
 Battery change planning
"Target position "
 Speed
 Overload

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

interface/
protocol

IOL

IOL

IOL

IO-Link

S3/09

RS485/SIKONETZ5

CAN

CANopen

hollow shaft/
diameter

20

20

20

ø20 mm

RH12
RH14
RH15
RH16
reducing bushes
0

others on request

Intermediate plate

OZP

OZP

OZP

without

ZP04

ZP09

adaptation DA09S

Protection category

IP53

IP53

IP53

IP53

IP65

IP65

Type of connection

EX

EX

EX

industrial connector

without cable
E12X

cable outlet

only with IO-link
E15X

cable outlet

only with S3/09, CAN

Software

S

S

S

standard software

SW04

compatible to AP04-CAN

SW05

compatible to AP04-SN5

SW06

compatible to AP04-SN3/4

Your order key

AP05 - IOL - 20 - A - OZP - IP53 - EX - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

SW08

PDF

DE
EN

IO-Link

PDF

DE
EN

CANopen SW04

PDF

DE
EN

SIKONETZ5

PDF

DE
EN

CANopen

PDF

DE
EN

SW01

PDF

EN

3D-CAD model

Link/URL

CAD-Modell

CKCA conformity declarations

PDF

EN

Installation Instructions

PDF

DE | EN

SW02

PDF

DE | EN

SW03

PDF

DE | EN

SW04, SW05, SW08

PDF

DE | EN

SW06

PDF

DE | EN

Setup-Package

ZIP

Download

EU-conformity declarations

PDF

DE | EN | FR

Accessories

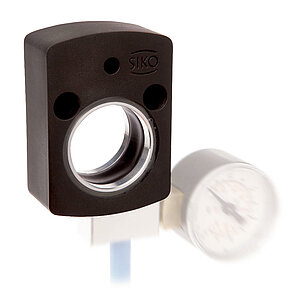

SIKO Global, Pneumatic clamping plate KP09P
Pneumatic clamping plate KP09P

  • Pneumatic clamping plate for shaft clamping

  • Selectable sizes of the compressed-air connection

  • Easy mounting and retrofitting

Go to Product

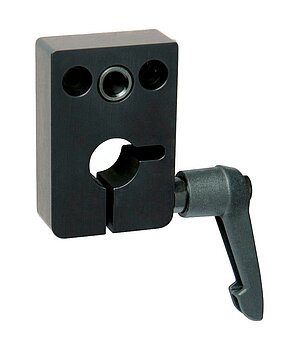

SIKO Global, Clamping plate KPE04
Clamping plate KPE04

  • Contour matching with DE04, AP05 position indicators

  • For shaft diameters 10 … 20 mm

  • Lateral position of the clamping lever

Go to Product

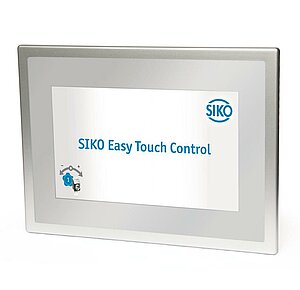

SIKO Global, Easy touch control ETC5000
Easy touch control ETC5000

  • Control system for position indicators and actuators

  • Intuitive touchscreen control concept for format adjustment

  • up to 31 devices can be actuated

Go to Product

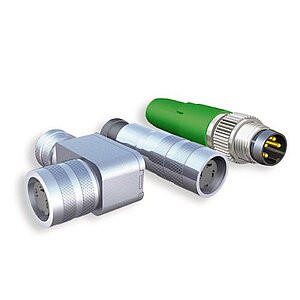

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product

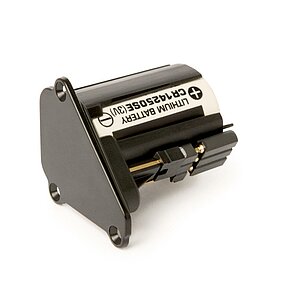

SIKO Global, Battery unit ZB1027
Battery unit ZB1027

  • Unit of battery and holder with contacts

  • For easy und reliable replacement of the backup battery

Go to Product

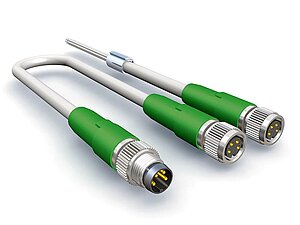

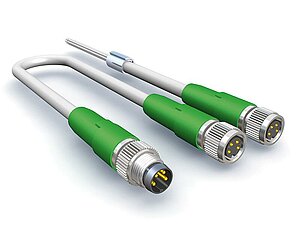

SIKO Global, Cable extension KV04S1
Cable extension KV04S1

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Bus terminating connector, 4-pole, pin
BAS-0005

Comparable products

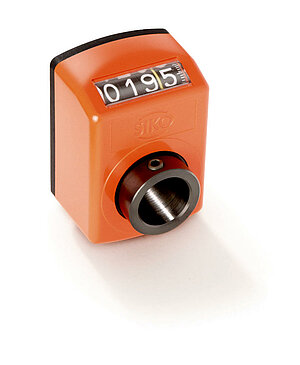

SIKO Global, Digital position indicator DA04
Digital position indicator DA04

  • Hollow shaft, max. Ø 14 mm

  • Counter with 4 decades and fine reading

  • Detent as an option

Go to Product

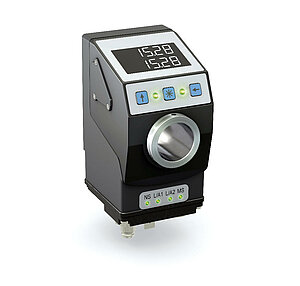

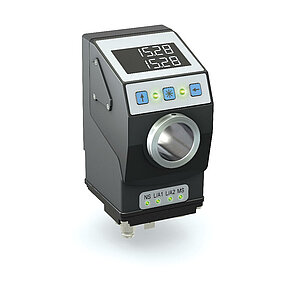

SIKO Global, Electronic position indicator AP20
Electronic position indicator AP20

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

  • Display of target and actual value displays with integrated alignment

Go to Product

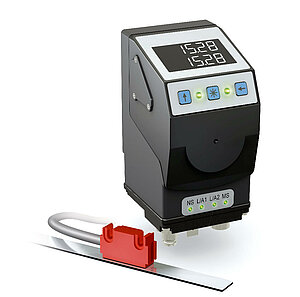

SIKO Global, Electronic position indicator AP20S
Electronic position indicator AP20S

  • Electronic position indicator with plug connection for magnetic sensor

  • Integrated Industrial-Ethernet-Fieldbus

  • Backlit two-row LCD

Go to Product

Scope of delivery

  • AP05
  • Installation Instructions

SIKO Application Reports

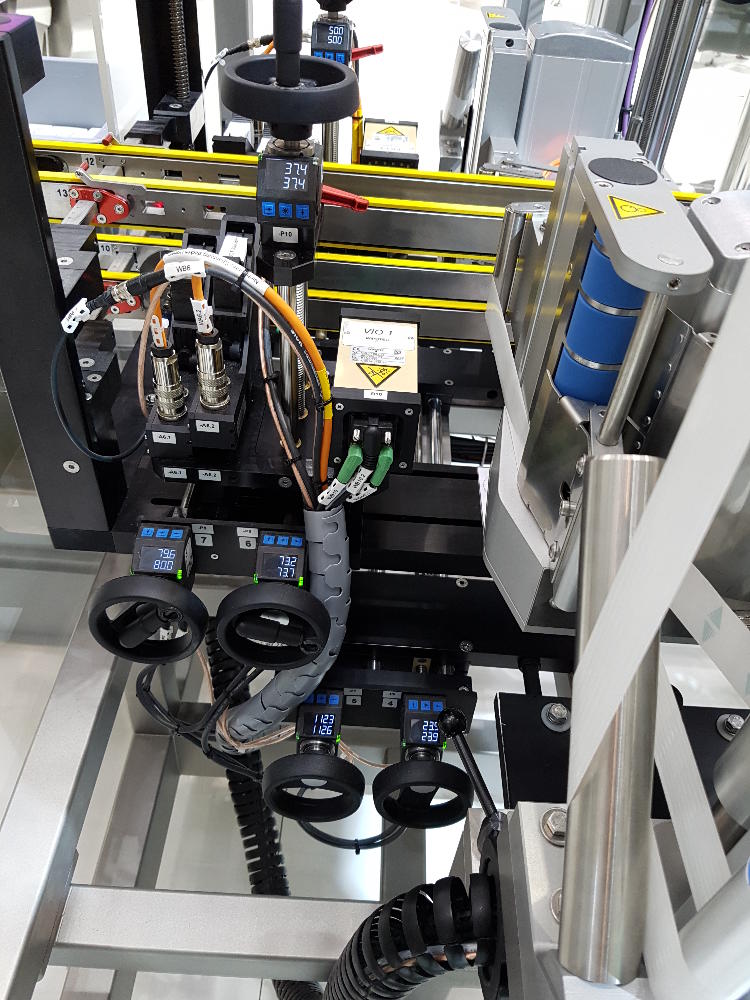

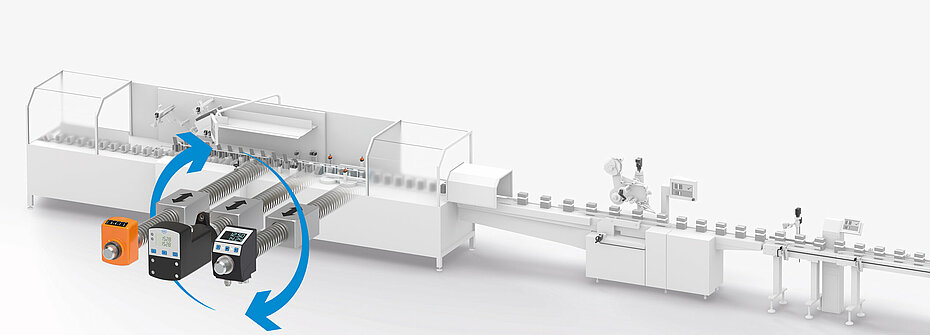

Labeling machine with SIKO position indicators and positioning drives

Pharma 4.0 with intelligent size changeover

“Size changeover" is not necessarily a term that immediately makes people stop and pay attention in the pharmaceutical industry. However, considering the challenges in pharmaceutical manufacturing, which are characterized by cost and competitive pressure as well as strict regulations, intelligent…

Learn more
Deckel-Tray-Packer SOMIC 424 DT

Packaging machine manufacturer SOMIC relies on AP05 electronic position indicators from SIKO

When companies need packaging machines for their products – whether it’s for coffee capsules, cough sweets, batteries or plasters – the most important aspect of the investment is to find the most flexible solution that can handle a wide range of package sizes and formats. However, this requires…

Learn more
Large packaging machine line in production hall

SIKO position indicators ensure process security in Track & Trace systems from WIPOTEC-OCS

In the pharmaceutical industry, this topic is still generating a great deal of attention: the European Falsified Medicines Directive (2011/62/EU), which entered into force on 9 February 2019, requires all prescription medicines to be clearly labeled in a way that allows the entire production and…

Learn more
Packsys Global FlexSeamer machine for tube production

Process Reliability in Tube Production: How PackSys Global Optimizes Production Using SIKO Technology

Large tubes, small tubes, long tubes, thick tubes, flat tubes, miniature tubes - tubes are produced in countless sizes and formats for oral care, cosmetics, and in the pharmaceutical industry. The machines that produce the packaging for toothpaste and cosmetic products come from PackSys Global AG in…

Learn more

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
SIKO positioning systems for packaging technology
Packaging Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
