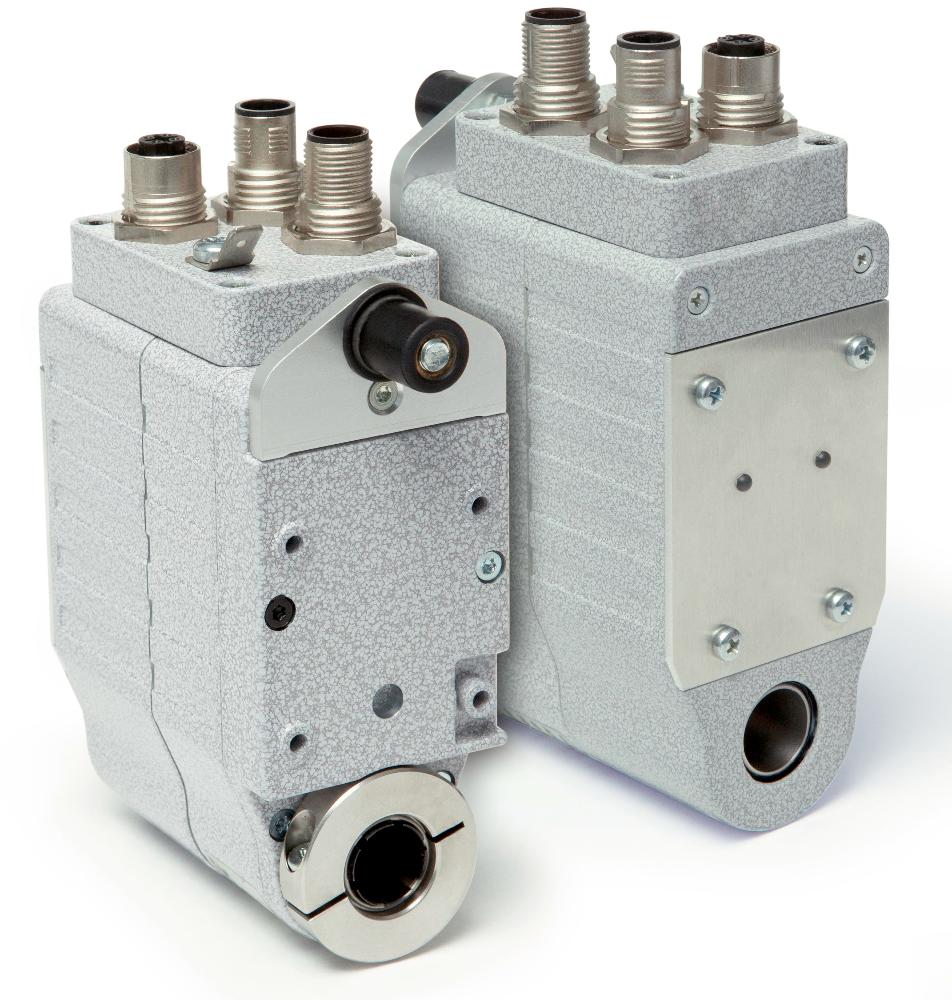

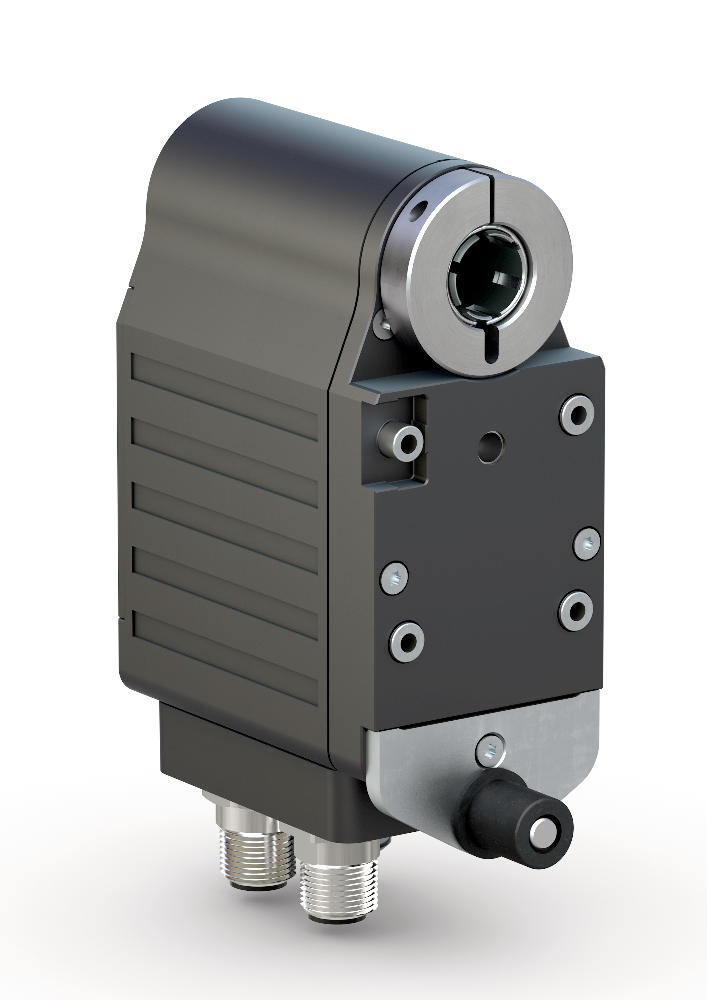

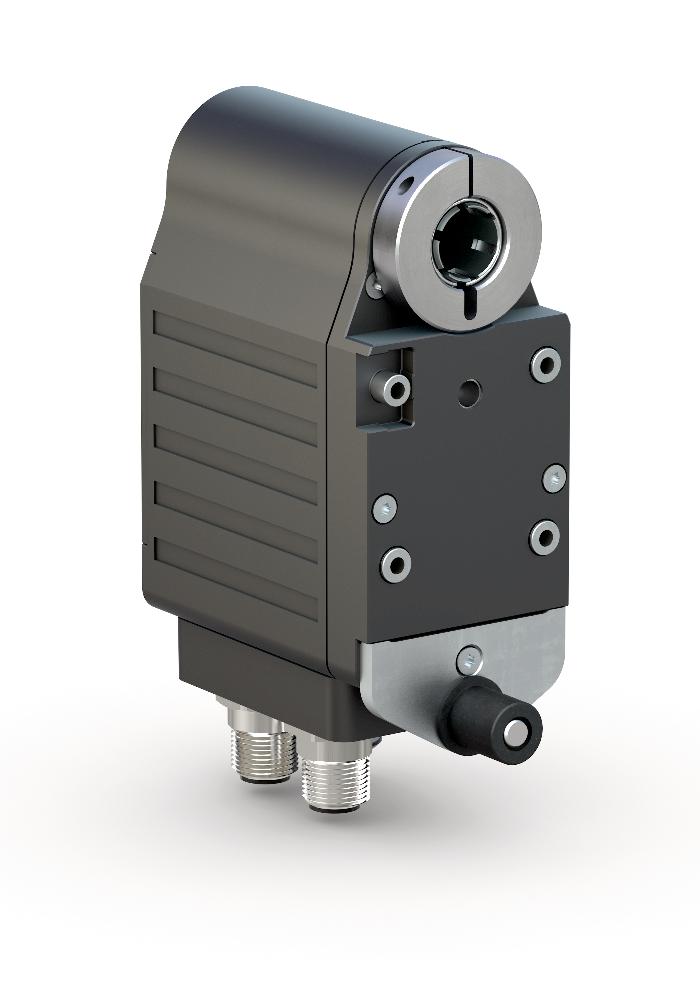

Positioning drive AG03/1
Integrated field bus or IO-Link interface
- Space-saving, easy mounting
- Through hollow shafts up to max. ø14 mm
- Brushless 50 W, 24 V EC motor with long service life
- Integrated power and control electronics with inverse polarity and overload protection
- Integrated absolute position encoder on the output shaft
- interfaces CANopen, Profibus-DP, RS485/SIKONETZ5 or IO-Link
- IO-Link optionally with 1 cable or 2 cable interface
- Industry 4.0 ready
Technical drawing
Technical Specifications
More information
pin assignment
Operating voltage
|
Assignment |
PIN |
|
+UB |
1 |
|
GND |
2 |
|
PE |
3 |
PB, CAN
|
PB |
CAN |
PIN |
|
nc |
nc |
1 |
|
BUS A |
nc |
2 |
|
nc |
CAN_GND |
3 |
|
BUS B |
CAN_H |
4 |
|
nc |
CAN_L |
5 |
S3/09
|
Signal |
PIN |
|
DÜB/TxRx- |
1 |
|
DÜB/TxRx+ |
2 |
|
nc |
3 |
|
SGND |
4 |
IOL, IOL2
|
IOL |
IOL 2 |
|
|
L+ (+UB control) |
L+ (+UB control) |
1 |
|
P24 (+UB output stage) |
nc |
2 |
|
L- (GND control) |
L- (GND control) |
3 |
|
C/Q |
C/Q |
4 |
|
N24 (GND output stage) |
nc |
5 |
Performance curve
Industry 4.0
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
Temperature |
Overlaod, ambient temperature |
|
"Target position " |
current |
Torque, overload |
|
Speed |
Volatage load Voltage control |
Voltage drop, line break |
|
On/Off time |
Operating time |
|
|
Battery voltage |
Battery change planning |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Gear ratio
48
Protection category
IP50
shaft design/
diameter
KR/14
Torque pin
A
fieldbus
CAN
Accessories
Comparable products
Scope of delivery
- AG03/1
- Quick Start Guide
