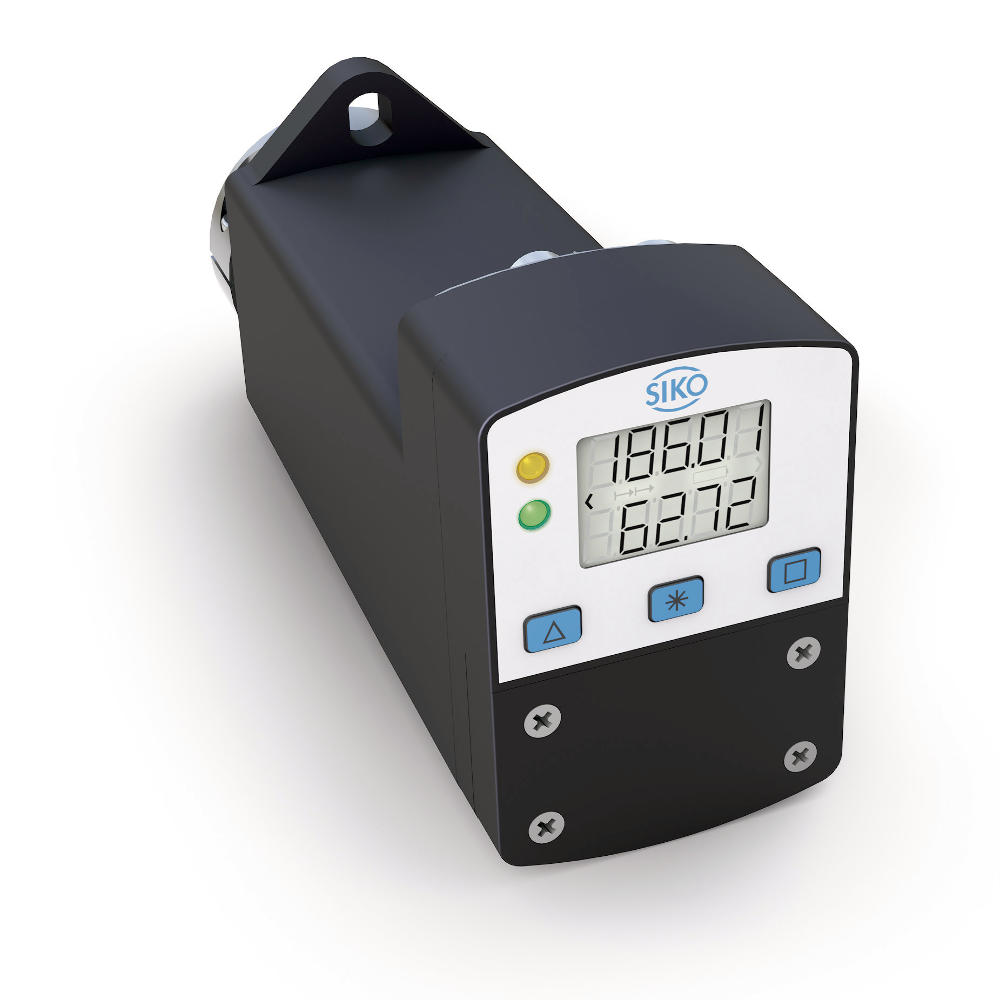

Positioning drive AG06

fieldbus

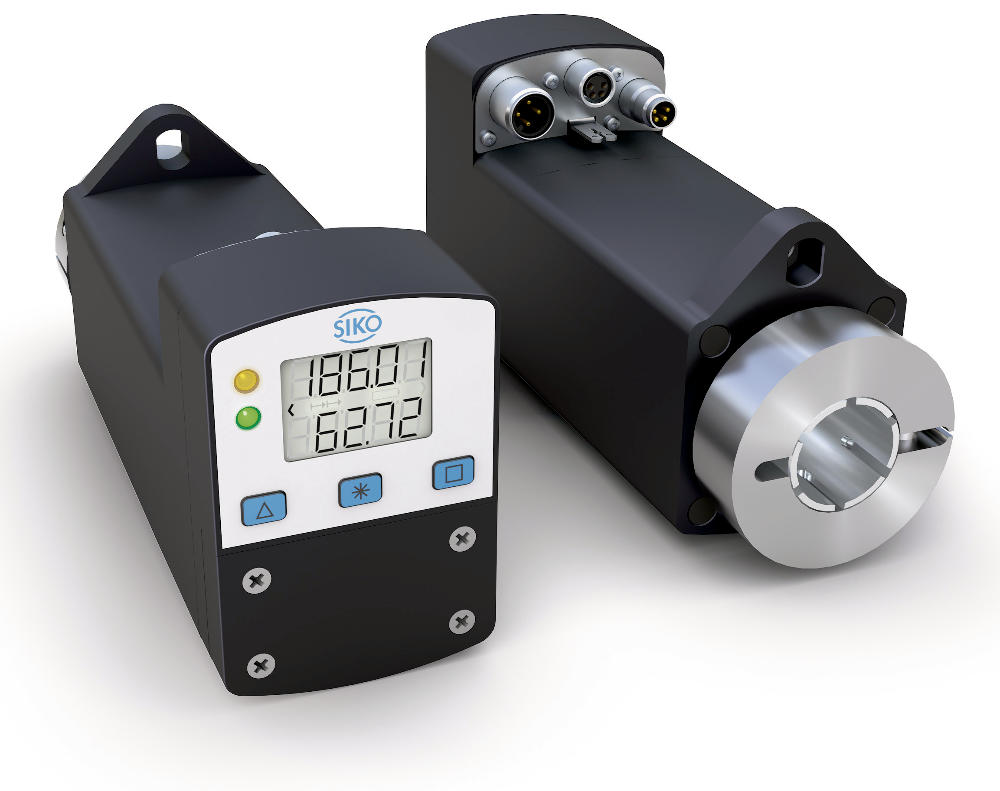

SIKO Global, Positioning drive AG06
SIKO Global, Positioning drive AG06
SIKO Global, Positioning drive AG06
SIKO Global, Positioning drive AG06
The AG06 actuator is a compact and powerful actuator with high torque and is particularly suitable for automated positioning tasks. The integrated position controller with magnetic absolute sensor ensures precise positioning.
  • easy mounting, no additional coupling needed
  • stainless steel hollow shaft, glass fibre reinforced casing
  • brushless 24 VDC motor with long service life
  • solid absolute sensor, magnetic sensing technology
  • 2-line LCD for target and position value and operating keys
  • 2 LEDs for user guidance
  • integrated RS485 or CANopen interface
  • Integrated positioning controller
  • M8 + M12 component mounting technology
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Positioning drive AG06

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.9  kg
shaft
 rustproof stainless steel
Housing
 glass-fiber reinforced plastic
clamping ring
 rustproof stainless steel
Torque pin
 rustproof stainless steel
Nominal torque/rated speed
 7  Nm  at 30 min-1 ±10%
i = 188
 13  Nm  at 15 min-1 ±10%
i = 368 (temporarily permissible breakaway torque 14 Nm)
Operating mode
 S3 intermittent operation: 25 % DC, 10 min.
EN 60034-1
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±10 %
reverse polarity protected, output stage
24 V DC ±10 %
reverse polarity protected, control
Current consumption
 2.42  A
max. adm. at set point 100% (output stage)
Power input
≤58  W
output stage
≤1.6  W
control
Battery
 CR2477N, 3 V lithium, 950 mAh
Battery service life
~5  Year(s)
depending on ambient conditions
Parameter storage
106 cycles
also applies to calibration operations
Rated current
2.2 A ±10 %
at max. adm. torque (output stage)
<60  mA  at 24 V DC (control)
Display/display range
 5-digit LCD 7-segment, ~7 mm height
decimal points, 2 rows, special characters
Special character
 battery, direction arrows
Status display
2 LEDs
Keys
 parameterizing, resetting, inching, setpoint definition
Bus connection
 RS485, CANopen
no galvanic isolation
Type of connection
 1x M12-plug connector (A-coded)
4-pole, 1x pin
 2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
 grounding via flat connector 6.3 mm
Feature
Technical Specifications
Enhancement
Resolution
 720  Increments/revolution  shaft
Repeat accuracy
±1  Increment(s)
Travel range
±697  rotation(s)
i = 188
±356  rotation(s)
i = 368
Failure rate
 31  Year(s)
CAN, at 60° C (MTBF) according to SN 29500
 31.3  Year(s)
S3/09, at 60° C (MTBF) according to SN 29500
Feature
Technical Specifications
Enhancement
Ambient temperature
 0 …  45 °C
Storage temperature
-20 …  60 °C
Relative humidity
condensation inadmissible
EMC
 EN 61800-3, second environment
interference resistance / immission
 EN 61800-3, C3
emitted interference / emission
Protection category
 IP54, IP65
EN 60529, with mating connector fitted
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Operating voltage M12 (A-coded)

Signal
 PIN
+24 V  Output stage
 1
+24 V Control
 2
GND Output stage*
 3
GND Control*
 4

Interfaces M8

Signal
 PIN
DÜB/TxRX-/CANL
 1
DÜA/TxRX+/CANH
 2
Do not connect!
 3
SGND*
 4
* internally connected

Performance curve

Industry 4.0

In most cases, data exchange with the actuators is limited to the exchange of process data. In addition to the process data, intelligent drives provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 Temperature
 Overlaod, ambient temperature
"Target position "
 current
 Torque, overload
Speed
 Volatage load Voltage control
 Voltage drop, line break
On/Off time
 Operating time
Battery voltage
 Battery change planning

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

188

188

188

i = 188

368

i = 368

Protection category

IP54

IP54

IP54

IP54

IP65

IP65

shaft design/
diameter

KR/20

KR/20

KR/20

clamping ring, ø20 mm

0

others on request

interface/
protocol

S3/09

S3/09

S3/09

RS485/SIKONETZ5

CAN

CANopen

Your order key

AG06 - 188 - 50W - IP54 - KR/20 - B - ABM - S3/09 - SW
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

SIKONETZ5

PDF

DE
EN
IT

CANopen

PDF

DE
EN
IT

3D-CAD model

Link/URL

CAD-Modell

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Accessories

SIKO Global, Easy touch control ETC5000

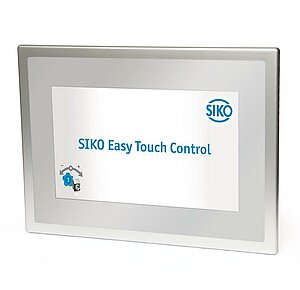

Easy touch control ETC5000

  • Control system for position indicators and actuators

  • Intuitive touchscreen control concept for format adjustment

  • up to 31 devices can be actuated

Go to Product
SIKO Global, Programming software ProTool DL

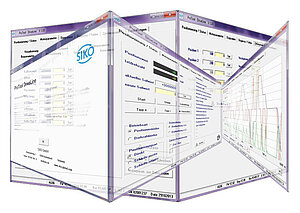

Programming software ProTool DL

  • Software can be run on systems with WinXP or newer without installation

  • intuitive and neat operation

  • graphical user interface

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
SIKO Global, Cable extension KV04S1

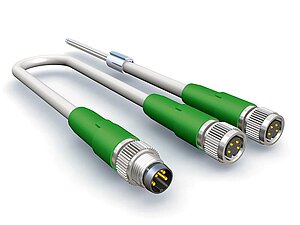

Cable extension KV04S1

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M8, 4-pole

Go to Product
SIKO Global, Cable extension KV04S2
Cable extension KV04S2

  • Ready-to-use cable connection

  • Cable lengths up to 10 m

  • Connection technology M12 (A-coded), 4-pole

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, angle socket
83091
Mating connector, 4-pole, socket
84209
Mating connector, 4-pole, pin
84210
Bus terminating connector, 4-pole, pin
BAS-0005

Comparable products

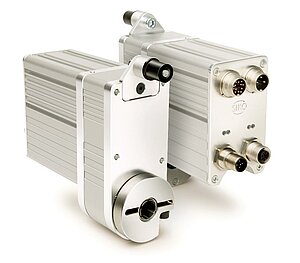

SIKO Global, Positioning drive AG02 analog
Positioning drive AG02 analog

  • Easy mounting

  • Optional through hollow shafts up to max. Ø 14 mm

  • Integrated analog absolute position encoder

Go to Product

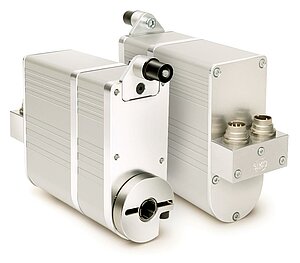

SIKO Global, Positioning drive AG02 Feldbus
Positioning drive AG02 Feldbus

  • Easy mounting

  • Through hollow shafts up to max. ø14 mm

  • Integrated absolute position encoder on the output shaft

Go to Product

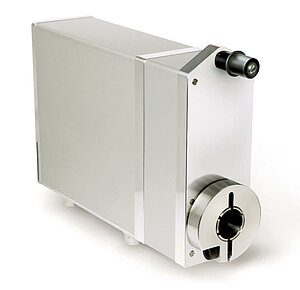

SIKO Global, Positioning drive AG04B
Positioning drive AG04B

  • Easy mounting

  • Stainless steel hollow shaft up to max. ø20 mm

  • """manual"" traveling without control unit by means of operator keys"

Go to Product
SIKO Global, Positioning drive AG05
Positioning drive AG05

  • easy mounting, no additional coupling needed

  • stainless steel 14 mm hollow shaft, glass fibre reinforced casing

  • brushless 24 VDC motor with long service life

Go to Product

Scope of delivery

  • AG06
  • Quick Start Guide

SIKO Application Reports

Labeling machine with SIKO position indicators and positioning drives

Pharma 4.0 with intelligent size changeover

“Size changeover" is not necessarily a term that immediately makes people stop and pay attention in the pharmaceutical industry. However, considering the challenges in pharmaceutical manufacturing, which are characterized by cost and competitive pressure as well as strict regulations, intelligent…

Learn more
SIKO positioning drive AG05 on Homag woodworking machine

300% Process Acceleration – SIKO’s retrofit solution optimized double-sided format and edge banding machine from HOMAG

SIKO GmbH has a versatile system solution that can be adapted to the requirements of individual size changeover in existing machine installations through a variety of retrofit components. This system solution is already in use in metal processing, carpentry, medical, and pharmaceutical applications.…

Learn more

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
SIKO positioning systems for packaging technology
Packaging Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Xing

Linkedin

Instagram

Youtube

X

Solutions
  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
Products
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
Services
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Tutorials and Videos
Company
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2024 SIKO GmbH
