Draw-wire encoder SG62

robust design and redundant sensor system with 6000 mm measuring length

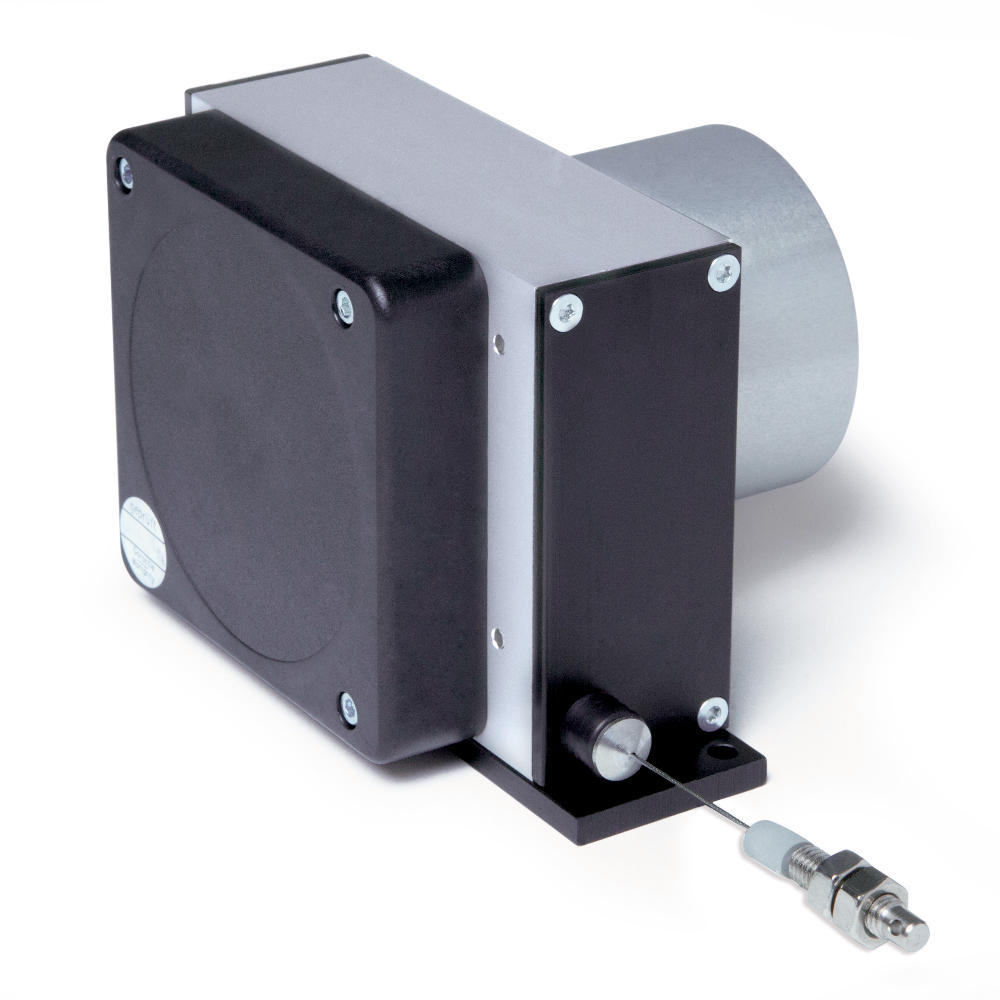

SIKO Global, Draw-wire encoder SG62
SIKO Global, Draw-wire encoder SG62
Very robust wire-actuated encoder in compact design for numerous areas of application including crane construction, stage construction, warehousing technology, etc., up to a measuring length of 6000 mm, with signal output in redundant design.
  • Robust design
  • Measuring lengths up to 6000 mm
  • Analogue signal output in redundant design (2x 4…20 mA or potentiometer)
  • Very robust measuring rope (stainless steel)
  • IP65 protection class
  • M12 plug connection
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Draw-wire encoder SG62

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.8  kg
Housing
 aluminum/plastic
Wire design
ø0.54  mm
rustproof stainless steel
Extension force
≥8  N
Measured distance/ rope drum revolution
 200  mm

Geber Potentiometer

Feature
Technical Specifications
Enhancement
Operating voltage
≤30  V DC
power loss on the potentiometer <1 W
Power rating
 2  W  at 70 °C
resistance
 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
0.5 % or 1 Ω
the higher value always applies
Linearity tolerance
±0.25  %
Type of connection
M12 plug connector (A-coded)
8-pole, 1x pin

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
 10 …  30 V DC
between I+ and I-, at ≤500 Ω load
Output current
 4   …  20 mA  (2x)
4/20mA 4/20mA
 20   …  4 mA  (2x)
20/4mA 20/4mA
4 … 20 mA, 20 … 4 mA
4/20mA 20/4mA
Type of connection
 M12 plug connector (A-coded)
8-pole, 1x pin
* Transducers enable optimal adaptation of output current or output voltage to the measuring range. The measuring transformer is factory preset so that an output signal of 4 … 20 mA or 20 … 4 mA is available between the start and end points of the measuring range.
Feature
Technical Specifications
Enhancement
Repeat accuracy
±0.25  mm
per direction of approach
Measuring range
 5000  mm , 6000  mm
Travel speed
≤800  mm/s
Failure rate
 166.7  Year(s)
at 60 °C (MTBF)
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 …  80 °C
Relative humidity
 condensation inadmissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP65 (for electronic unit)
EN 60529, certonally coated electronics

More information

pin assignment

Potentiometer pin assignment

Signal
 PIN
 Additional information
Po
 1
 Potentiometer 1
Po
 2
 Potentiometer 2
S
 3
 Potentiometer 2
Pe
 4
 Potentiometer 2
nc
 5
Pe
 6
 Potentiometer 1
S
 7
 Potentiometer 1
nc
 8

Connection assignment of transducer

Signal
 Additional information
I+
 1
 Transducer 1
I+
 2
 Transducer 2
nc
 3
I-
 4
 Transducer 2
nc
 5
I-
 6
 Transducer 1
nc
 7
nc
 8

Hint for mounting

When securing the wire it must be ensured that the wire is straight and vertical in relation to the wire outlet. Recommendation: Only select the starting position after an unwound length of approx. 5 mm. This prevents the wire hitting the end stop when it is rewound.
Symbolic representation

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Measuring range

5000

5000

5000
in mm
6000

rope fixture

GW

GW

GW

wire suspension with thread

HK

wire suspension with hook

encoder type

P10_P10

P10_P10

P10_P10

2x potentiometers 10 kΩ

4/20mA_4/20mA

2x transducers 4 … 20 mA

20/4mA_20/4mA

2x transducers 20…4 mA

4/20mA_20/4mA

2x transducers 4 … 20 mA counter-rotating

series impedance

1k2

1k2

1k2

1.2 kΩ

0

0 Ω

Your order key

SG62 - 5000 - GW - S/FLEX - P10_P10 - 0 - 1k2
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

CKCA conformity declarations

PDF

EN

Installation Instructions

PDF

DE | EN

EU-conformity declarations

PDF

DE | EN

Accessories

SIKO Global, Wire extension piece SV
Wire extension piece SV

  • For extending the measurement wire or bridging the gap to the object to be measured. This does not extend the actual measurement range of the encoder, however

  • Easy mounting

Go to Product
SIKO Global, Guide roller UR
Guide roller UR

  • For changing the measurement direction. Guide rollers are used when the wire-actuated encoder cannot be installed inline with the extension direction of the wire

  • Several guide rollers can be combined

Go to Product

Comparable products

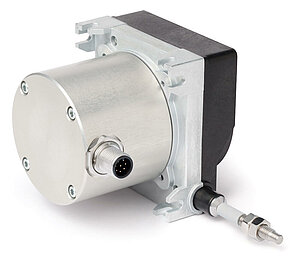

SIKO Global, Draw-wire encoder SG32
Draw-wire encoder SG32

  • Robust design

  • Measuring lengths up to 3000 mm

  • Analogue signal output in redundant design (2x 4…20 mA or potentiometer)

Go to Product

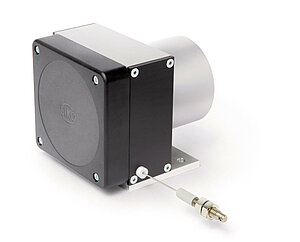

SIKO Global, Draw-wire encoder SG42
Draw-wire encoder SG42

  • Robust design

  • Measuring lengths up to 4000 mm

  • Analogue signal output in redundant design (2x 4…20 mA or potentiometer)

Go to Product

Scope of delivery

  • SG62
  • Installation Instructions
