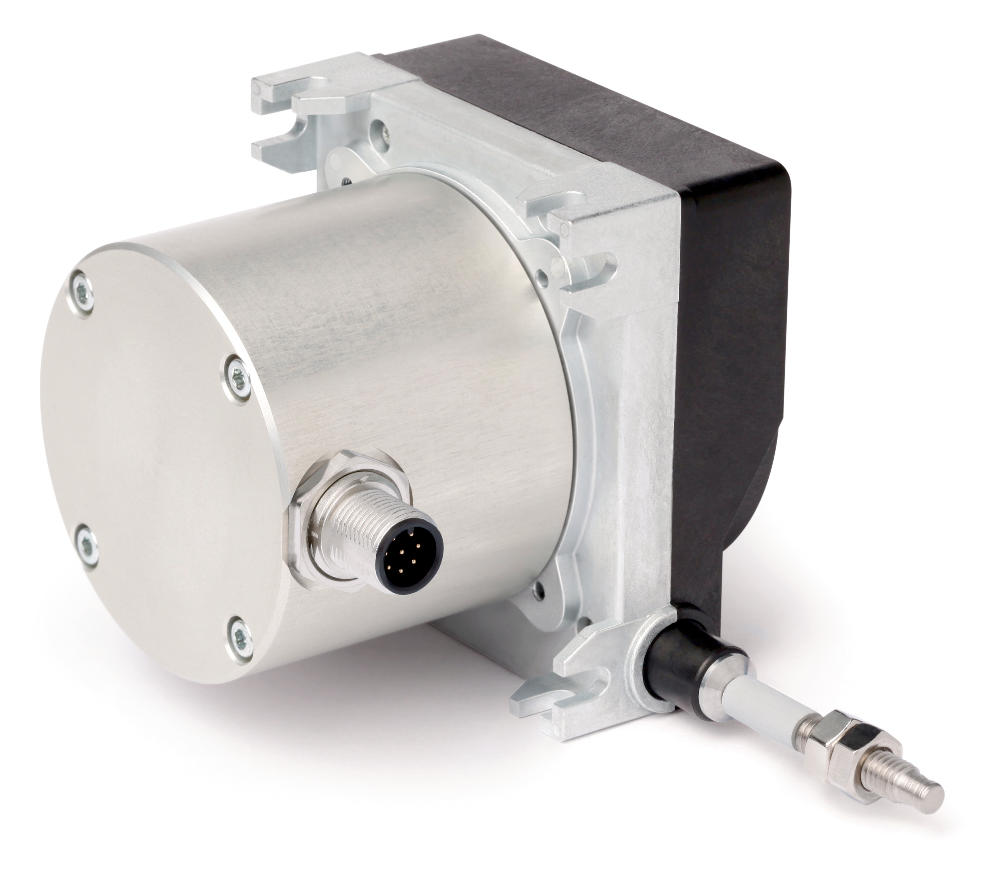

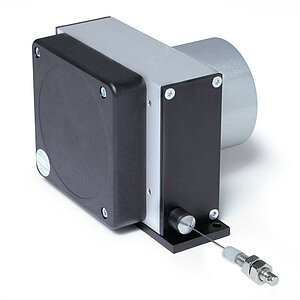

Draw-wire encoder SG32
robust design and redundant sensor system with 3000 mm measuring length
- Robust design
- Measuring lengths up to 3000 mm
- Analogue signal output in redundant design (2x 4…20 mA or potentiometer)
- Variable mounting options
- Lockable vent and water drain holes
- Very robust measuring rope (stainless steel)
- IP65 protection class
- M12 plug connection
Technical drawing
Technical Specifications
Geber Potentiometer
Messwandler, Stromausgang
More information
pin assignment
Potentiometer pin assignment
|
Signal |
PIN |
Additional information |
|
Po |
1 |
Potentiometer 1 |
|
Po |
2 |
Potentiometer 2 |
|
S |
3 |
Potentiometer 2 |
|
Pe |
4 |
Potentiometer 2 |
|
nc |
5 |
|
|
Pe |
6 |
Potentiometer 1 |
|
S |
7 |
Potentiometer 1 |
|
nc |
8 |
Connection assignment of transducer
|
Signal |
Additional information |
|
|
I+ |
1 |
Transducer 1 |
|
I+ |
2 |
Transducer 2 |
|
nc |
3 |
|
|
I- |
4 |
Transducer 2 |
|
nc |
5 |
|
|
I- |
6 |
Transducer 1 |
|
nc |
7 |
|
|
nc |
8 |
Hint for mounting
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Measuring range
2000
wire design
S
encoder type
P10_P10
position of electrical connection
1
series impedance
0
Accessories
Scope of delivery
- SG32
- Installation Instructions
