Geared potentiometer GP04/1

With solid or blind hole shaft
SIKO Global, Geared potentiometer GP04/1
SIKO Global, Geared potentiometer GP04/1
  • Extremely resistant to external influences
  • Solid or blind-hole hollow shaft, max. Ø 20 mm
  • Adaptation to various measurement distances owing to a wide range of gear ratios
  • Integrated slip clutch to protect the potentiometer
  • Potentiometer, power or voltage output
  • IP65 protection class
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Comparable products

Technical drawing

SIKO Global, Geared potentiometer GP04/1

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
shaft
 aluminum
IP52
 black-finished steel
IP65
Housing
 aluminum
Gear ratio
 0.2 …  256
Speed
≤500  min-1
depending on transmission
Shaft load rating
≤1000  N
radial
≤1700  N
axial
Potentiometer service life
1 x 106 rotation(s)

Geber Potentiometer Typ 01, 1 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 1  W  at 70 °C
≤30 V
resistance
 5  kΩ , 10  kΩ
Resistance tolerance
±10  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±1  %
Design
 hybride

Geber Potentiometer Typ 02, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±0.25  %
Design
 wire

Geber Potentiometer Typ 03, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±0.25  %
Design
 hybride

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output current
 4 …  20 mA  at load 500 Ω

Messwandler, Spannungsausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output voltage
 0 …  10 V
Feature
Technical Specifications
Enhancement
Measuring range
340° ±5°  (mechanical full-length)
potentiometer type 01
3600° +10°
potentiometer types 02, 03
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 …  80 °C
Relative humidity
condensation inadmissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP52, IP65
EN 60529

More information

pin assignment

without transducer

Signal
 Terminal
Po
 1
Pe
 2
S
 3

MWI transducer

Signal
 Terminal
I+
 1
I-
 2
nc
 3

MWU transducer

Signal
 Terminal
+24 V DC
 1
GND
 2
Uout
 3

Purchase order

Gear ratio calculation

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

0,1

0.1

0.1
0.166
0.25
0.333
0.5
1
2
3
4
5
6
10
12
15
20
24
30
40
55
0

others on request

drive shaft

H/20

H/20

H/20

hollow shaft ø20 mm

H/16

hollow shaft ø16 mm

V/20

solid shaft ø20 mm

V/16

solid shaft ø16 mm

potentiometer type

01

01

01

1 helix, hybrid

only for P05 or P10 analog output
02

10 helices, wire

03

10 helices, hybrid

analog output

MWI

MWI

MWI

transducer 4 … 20 mA

MWU

transducer 0 … 10 V

P01

potentiometer 1 kΩ

P05

Potentiometer 5 kΩ

P10

potentiometer 10 kΩ

Sense of rotation

<leer>

<leer>

<leer>

no information required

only for P01, P05, or P10 analog output
e

counter-clockwise ascending values

only for MWI or MWU analog output
i

clockwise ascending values

only for MWI or MWU analog output

Protection category

52

52

52

IP52

65

IP65

Your order key

GP04/1 - 0.1 - H/20 - 01 - MWI - <leer> - 52
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR
DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Comparable products

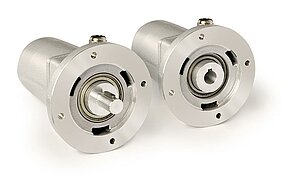

SIKO Global, Geared potentiometer GP44
