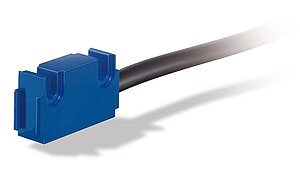

Magnetic sensor LE100/1
Incremental, analog interface 1 VSS
- Repeat accuracy max. ±1 μm
- LED status display
- Works with MB100/1 magnetic tape
- Works with MBR100 magnetic tape ring
- Reading distance ≤0.4 mm
- Signal period 1000 μm
- Output circuit sin/cos 1 VSS
- Robust metal housing
Technical drawing
Technical Specifications
Signal image
F: 1 VSS ±10 %
J: ≥0.2 V
K: ≥0.3 V
L: 100° ±20 %
M: 90° ±1.0° / ±3° (25 kHz)
X: 1 VSS
More information
pin assignment
without reference signal
Signal |
E1 |
E6X |
GND |
black |
1 |
sin |
red |
2 |
/sin |
orange |
3 |
cos |
yellow |
4 |
/cos |
green |
5 |
+UB |
brown |
6 |
nc |
7 |
with reference signal
Signal |
E1 |
E6X |
sin |
red |
1 |
cos |
yellow |
2 |
index |
blue |
3 |
+UB |
brown |
4 |
GND |
black |
5 |
/sin |
orange |
6 |
/cos |
green |
7 |
/index |
violet |
8 |
Hint for mounting
Reference signal |
O, I |
R |
A, Sensor/tape reading distance |
≤0.4 mm |
≤0.2 mm |
B, Lateral offset |
±2 mm |
±0.5 mm |
C, Alignment error |
±3° |
±3° |
D, Longitudinal inclination |
±1° |
±1° |
E, Lateral inclination |
±3° |
±3° |
3 |
2 |
2 |
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Operating voltage
10
design
M
Type of connection
E1
Cable length
1.0
reference signal
O

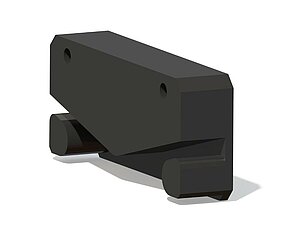

Accessories
Comparable products
Scope of delivery
- LE100/1
- Fastening set
- Quick Start Guide
