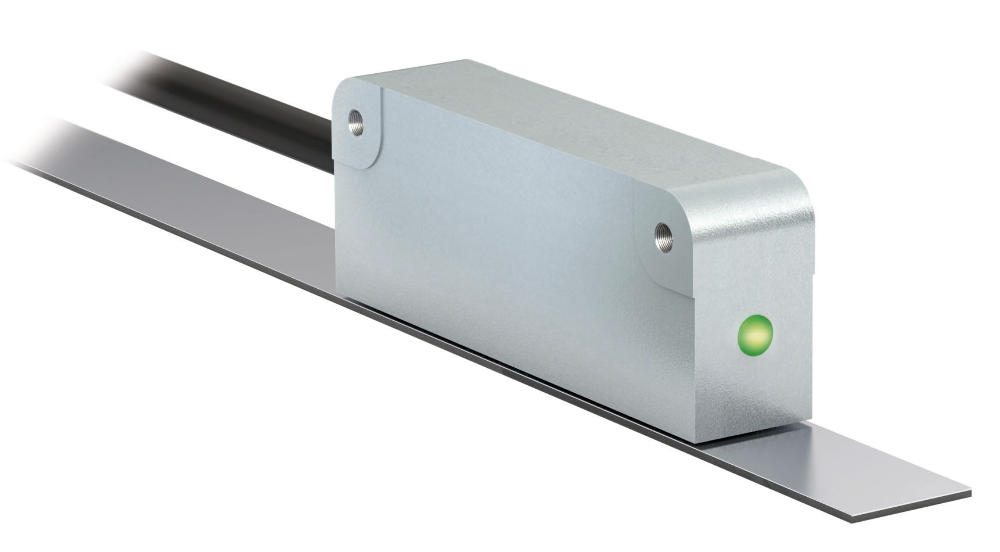

Magnetic sensor MSA213C
Absolute high-resolution, numerous interfaces, very small design
- High absolute resolution 1 μm
- Repeat accuracy max. ±1 μm
- Reading distance ≤0.8 mm
- Measuring range 0 … 16 m
- Function and status display LED
- Interface BiSS C, SSI, IO-Link
- Optionally analog Sin/Cos 1 Vss or digital line driver
- Industry 4.0 ready
Technical drawing
Technical Specifications
Signal pattern, Sin/Cos output
F: 1 VSS ±10 %
M: 90° ±1.0° / ±3° (25 kHz)
Signal pattern, LD output circuit
Pulse interval, LD output circuit
Travel speed, LD output circuit
|
Travel speed Vmax [m/s] |
|||||||
|
Resolution [µm] |
1 |
10.00 |
5.00 |
2.00 |
1.00 |
0.50 |
0.20 |
|
5 |
25.00 |
25.00 |
10.00 |
5.00 |
2.50 |
1.00 |
|
|
10 |
25.00 |
25.00 |
20.00 |
10.00 |
5.00 |
2.00 |
|
|
Pulse interval [μs] |
0.10 |
0.20 |
0.50 |
1.00 |
2.00 |
5.00 |
|
|
Counting frequency [kHz] |
2500.00 |
1250.00 |
500.00 |
250.00 |
125.00 |
50.00 |
|
|
3 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
More information
pin assignment
SSI, BiSS C interface without LD, 1 Vss
|
SSI |
BiSS C |
Cable color |
|
GND |
GND |
black |
|
+UB |
+UB |
brown |
|
nc |
nc |
red |
|
nc |
nc |
yellow |
|
nc |
nc |
orange |
|
nc |
nc |
green |
|
T+ |
MA |
blue |
|
T- |
NMA |
violet |
|
D+ |
SLO |
gray |
|
D- |
NSLO |
white |
SSI, BiSS C interface with LD, 1 Vss
|
SSI |
BiSS C |
Cable color |
|
GND |
GND |
black |
|
+UB |
+UB |
brown |
|
A, Sin+ |
A, Sin+ |
red |
|
/A, Sin- |
/A, Sin- |
yellow |
|
B, Cos+ |
B, Cos+ |
orange |
|
/B, Cos- |
/B, Cos- |
green |
|
T+ |
MA |
blue |
|
T- |
NMA |
violet |
|
D+ |
SLO |
gray |
|
D- |
NSLO |
white |
IO-Link interface
|
Signal |
PIN |
|
L+ (+UB) |
1 |
|
I/Q |
2 |
|
L- (GND) |
3 |
|
C/Q |
4 |
Industry 4.0
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
-- |
Plausibility monitoring |
Hint for mounting
|
A, Sensor/tape reading distance |
≤0.8 mm |
|
B, Lateral offset |
±0.6 mm |
|
C, Alignment error |
±1° |
|
D, Longitudinal inclination |
max. sensor/tape A reading distance must never be exceeded. |
|
E, Lateral inclination |
max. sensor/tape A reading distance must never be exceeded. |
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Type of connection
E1
Cable length
00.3
Interface
BiSS/C
Output circuit
1Vss
incremental resolution
1
Pulse interval
0.1
Scope of delivery
- MSA213C
- Distance gage
- Quick Start Guide
