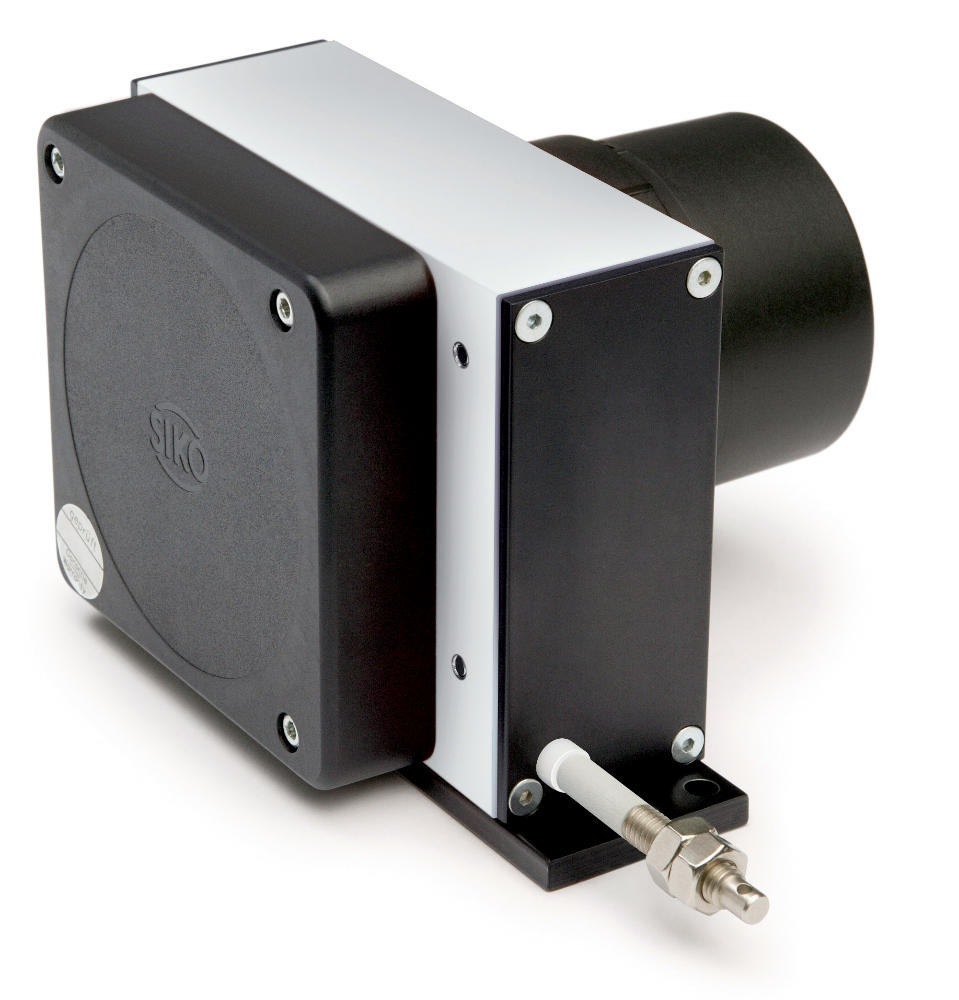

Draw-wire encoder SGP/1
robust design with analog output and 6000 mm measurement length
- Robust design
- Measurement lengths up to max. 6000 mm
- Potentiometer, voltage or power output
- Housing made of aluminum and plastic
- Potentiometer/resistance range adapted to actual measurement length via an integrated gear
- Various wire types
Technical drawing
Technical Specifications
Travel speed
|
Measuring range [mm] |
750 |
1000 |
1250 |
1500 |
1750 |
2000 |
2250 |
2500 |
2750 |
3000 |
3250 |
3500 |
6000 |
|
Travel speed [mm/s] |
≤200 |
≤300 |
≤300 |
≤400 |
≤490 |
≤500 |
≤600 |
≤700 |
≤800 |
≤800 |
≤900 |
≤1000 |
≤1000 |
|
4 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Geber Potentiometer
Messwandler, Stromausgang
Messwandler, Spannungsausgang
More information
pin assignment
Potentiometric outputs P10
|
Signal |
E1 (terminal) |
EX (connector pin) |
|
Po |
3 |
1 |
|
Pe |
1 |
2 |
|
S |
2 |
3 |
|
nc |
4 |
MWI transducer
|
Signal |
E1 (terminal) |
EX (connector pin) |
|
I+ |
1 |
1 |
|
I- |
2 |
2 |
|
nc |
3 |
3 |
|
nc |
4 |
MWU transducer
|
Signal |
E1 (terminal) |
EX (connector pin) |
|
+24 V DC |
1 |
1 |
|
GND |
2 |
2 |
|
Uout |
3 |
3 |
|
nc |
4 |
Hint for mounting
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Measuring range
750
rope fixture
GW
wire design
S
Type of connection
E1
potentiometer type
02
analog output
MWI
operating temperature
T1

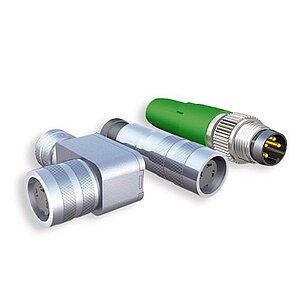

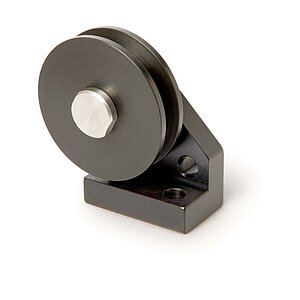

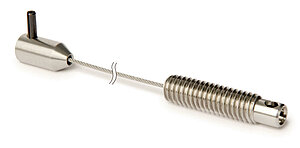

Accessories
Scope of delivery
- SGP/1
- Installation Instructions
