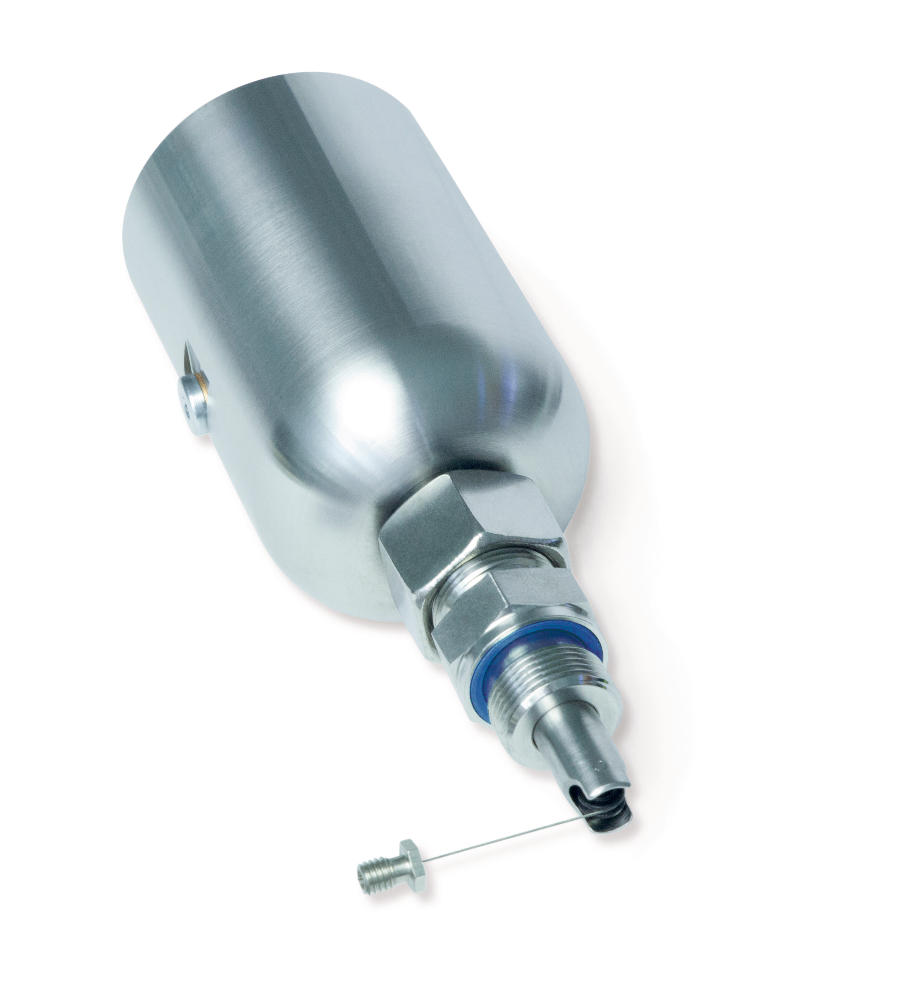

Draw-wire encoder SGH10L

Position sensor for hydraulic cylinders for lateral mounting
SIKO Global, Draw-wire encoder SGH10L
SIKO Global, Draw-wire encoder SGH10L
The SGH10 wire-actuated encoder measures the absolute direct cylinder stroke in a hydraulic cylinder. The new measuring system eliminates costly boring of the piston.As a result, integration costs are reduced compared to other measuring systems and a possible weakening of the piston is avoided effectively.The highlight of the SGH10L: Thanks to its unique lateral installation, the SGH10L can also be used in almost unsolvable applications,regardless of whether for applications in which no stoke lost can be accepted, extremely small piston diameters or in the case of cylinders with mechanical end position cushioning.
  • Measuring range 0 … 1000 mm (39.37 inches)
  • almost no stoke lost thanks to lateral mounting
  • Absolute measuring system
  • CANopen interface, analog: Current and voltage
  • Operating voltage 9 ... 32 VDC
  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
  • High flexibility, thanks to teach-in to any measuring length
  • High EMC compatibility
  • High shock and vibration resistance
  • with PURE.MOBILE technology
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Draw-wire encoder SGH10L

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~2.1  kg
V4A housing without spacer tube
~2  kg
St housing without spacer tube
Housing
 rustproof stainless steel
V4A housing, 1.4404 uncoated
 steel
St housing, 1.7225 not coated
Seal
 HNBR
sensor
 Viton
Screw-in connector housing V4A
 NBR
Screw-in connector housing St
Wire design
ø0.45  mm
rustproof stainless steel
Extension force
≥2  N
Acceleration
≤10  m/s²

Schnittstelle analog

Feature
Technical Specifications
Enhancement
Operating voltage
 9 …  32 V DC
with output 0 … 5 V, 0.5 … 4.5 V, 0.25 … 4.75 V, 1.0 … 4.9 V, reverse polarity protected
 12 …  32 V DC
with output 0 … 10 V, reverse polarity protected
 12 …  32 V DC
at output 0 ... 20 mA, 4 … 20 mA, but UB > Uload +2.0 V, reverse polarity protected
Current consumption
<32  mA
without load
Power input
<0.5  W
without load
Digital inputs
 2
limit inputs
Input signal level high
>8.4  V
Input signal level low
<2.8  V
Output voltage
 0 …  10 V
load current <1 mA
 0 …  5 V
load current <1 mA
 0.5 …  4.5 V
load current <1 mA
 0.25 …  4.75 V
load current <1 mA
 1 …  4.9 V
load current <1 mA
Output current
 0 …  20 mA
load ≤500 Ω
 4 …  20 mA
load ≤500 Ω
Linearity tolerance
±0.25  %
1000 mm measuring length, ±0.5% output value range ≤15 mV
±0.5  %
500 mm measurement length
Settling time
<150  ms
Type of connection
 1x M12-plug connector (A-coded)
5-pole, 1x pin

Schnittstelle CANopen

Feature
Technical Specifications
Enhancement
Operating voltage
 10 …  30 V DC
reverse polarity protection
Power input
<0.8  W
Parameter storage
105 cycles
also applies to calibration operations
Linearity tolerance
±0.25  %
1000 mm measurement length
±0.5  %
500 mm measurement length
Interface
 according to ISO 11898, not isolated
CANopen, CiA 301, CiA 305, CiA 406
Address
 1 …  127
Node ID, via SDO or Layer Setting Service (LSS)
Baud rate
≤1  Mbit/s
Cycle time
 1.5  ms  typical
Settling time
<150  ms
Type of connection
 1x M12-plug connector (A-coded)
5-pole, 1x pin
Feature
Technical Specifications
Enhancement
Scanning
 magnetic
Resolution
 12  bit
analog output
Repeat accuracy
±0.15  mm
Measuring range
 500  mm
Measuring range flexibly usable between 0 ... 500 mm
 1000  mm
Measuring range flexibly usable between 0 ... 1000 mm
Travel speed
≤1  m/s
Failure rate
 235.6  Year(s)
analog output, at 60 °C (MTBF)EN/IEC 61709 (SN 29500)
 253.3  Year(s)
CANopen, at 60 °C (MTBF)EN/IEC 61709 (SN 29500)
Approval
 E1 compliant
UN /ECE R10 approval number: E1 10 R - 05 8507
Feature
Technical Specifications
Enhancement
Ambient temperature
 -40 …  105 °C
electronics
 -30 …  105 °C
mechanics
Storage temperature
 -40 …  85 °C
Relative humidity
 100  %
condensation admissible in the mounted and plugged condition
Operating pressure
<350  bar
Pn based on ISO19879
Overload pressure
<450  bar
Pmax based on ISO 19879
Test pressure
 650  bar
Pstatic based on ISO 19879
EMC
 EN 61326-3.1
immunity requirement of industrial applications, emission limit class B
 ISO 11452-1, -2, -3, -4, -5
Interference radiation ESA
 ISO 7637-1, -2
transient pulses
 ISO 10605
Electrostatic discharge (ESD)
Protection category
 IP6K9K
ISO 20653 installed with suitable mating connector
Shock resistance
1000 m/s2, 11 ms
EN 60068-2-27, additional support is recommended
Vibration resistance
70 m/s2, 10 … 2 kHz
EN 60068-2-64, additional support is recommended at >150 Hz

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Measuring range

500

500

500
in mm
1000

installation depth

30

30

30
in mm
36
110
140
320
0

others on request

Interface

0/5V

0/5V

0/5V

0 … 5 V

voltage output
0/10V

0 … 10 V

voltage output
0,25/4,75V

0.25 … 4.75 V

voltage output
0,5/4,5V

0.5 … 4.5 V

voltage output
1,0/4,9V

1.0 … 4.9 V

voltage output
0/20mA

0 … 20 mA

current output
4/20mA

4 … 20 mA

current output
CAN

CANopen

Housing

St

St

St

steel

V4A

rustproof stainless steel

Your order key

SGH10L - 500 - 30 - GW6 - 0/5V - St - DS - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

E1

PDF

DE | EN

CKCA conformity declarations

PDF

EN

Accessories

SIKO Global, Programming tool ProTool SGH

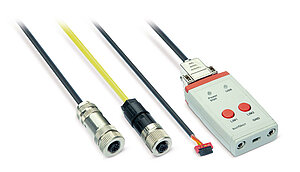

Programming tool ProTool SGH

  • Programming tool for analog sensors of the SGH series

  • Free programming of the measuring range and of the analog interface

  • Windows-compatible - plug & play

Go to Product
SIKO Global, Rope swivel ZB4009

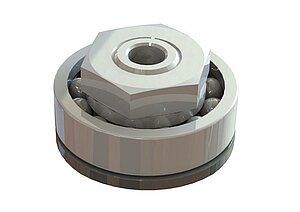

Rope swivel ZB4009

  • to compensate for the rotary movement of the piston head in piston accumulators or hydraulic cylinders

  • suitable for speed and position capturing

  • for wire-actuated encoders in the SGH series

Go to Product
SIKO Global, Socket wrench ZB4008

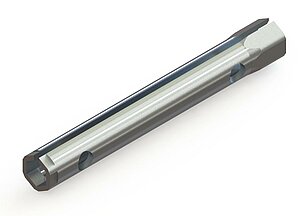

Socket wrench ZB4008

  • for easy mounting of the M6 fastening screw of wire-actuated encoders in the SGH series

  • slotted side prevents damage to the wire during assembly

Go to Product
SIKO Global, Wire extension piece SVH

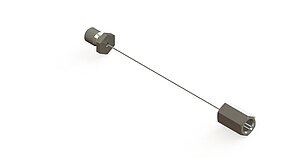

Wire extension piece SVH

  • for wire-actuated encoders in the SGH series

  • for lengthening the measuring wire or the distance to the measuring object (the measuring path is not lengthened)

  • Easy mounting

Go to Product

Comparable products

SIKO Global, Draw-wire encoder SGH10

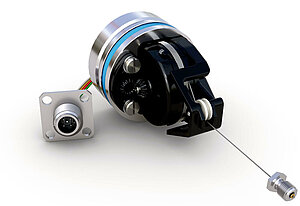

Draw-wire encoder SGH10

  • Measuring range 0 … 1000 mm (39.37 inches)

  • Absolute measuring system

  • CANopen interface, analog: Current and voltage

Go to Product
SIKO Global, Draw-wire encoder SGH25

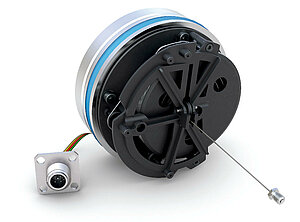

Draw-wire encoder SGH25

  • Measuring range 0 … 2500 mm (98.42 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product
SIKO Global, Draw-wire encoder SGH50

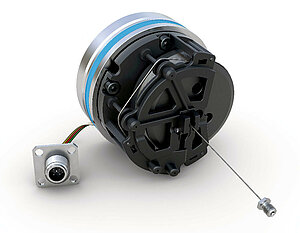

Draw-wire encoder SGH50

  • Measuring range 0 … 5000 mm (196.85 inches)

  • Absolute measuring system

  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar

Go to Product

Scope of delivery

  • SGH10L
  • Quick Start Guide

Industries relevant to the product

Hydraulic cylinder on yellow construction machine
Mobile Hydraulics

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Xing

Linkedin

Instagram

Youtube

X

Solutions
  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
Products
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
Services
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Tutorials and Videos
Company
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2024 SIKO GmbH
