Cable adaptor KA485ETC
Accessories
- easy adaptation to the ETC5000 (25-pole DSUB pin)
- M8 socket (for bus connection)
- integrated bus termination
- feed-in of the bus operating voltage for position indicators
Technical drawing
Technical Specifications
Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Housing
 metal
Feature
Technical Specifications
Enhancement
Operating voltage
24
 V DC
bus, 2 strands, feed to ETC5000
Type of connection
 D-SUB
25-pole, 1x pin (RS485, suitable for ETC5000)
 M8 plug connector
4-pole, 1x socket (bus, suitable for SIKONETZ5)
Feature
Technical Specifications
Enhancement
Protection category
 IP20
EN 60529
More information
pin assignment
RS485, 25-pole D-SUB
Signal |
PIN |
GND |
1 |
Do not connect! |
2 … 6 |
GND |
7 |
Do not connect! |
8 |
nc |
9 … 11 |
DÜA |
12 |
DÜB |
13 |
Do not connect! |
14 … 20 |
+5 V Out (for level determination) |
21 |
Do not connect! |
22 … 25 |
RS485, 4-pole M8
Signal |
PIN |
DÜB |
1 |
DÜA |
2 |
+UB |
3 |
GND |
4 |
Operating voltage
Assignment |
Cable color |
+UB |
red |
GND |
black |
Accessories
Additional Accessories
Order key

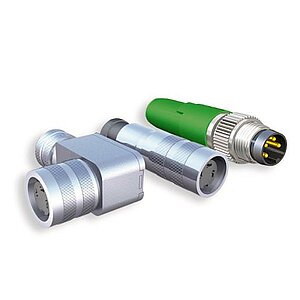

Mating connector, 4-pole, pin
84210
Scope of delivery
- KA485ETC
