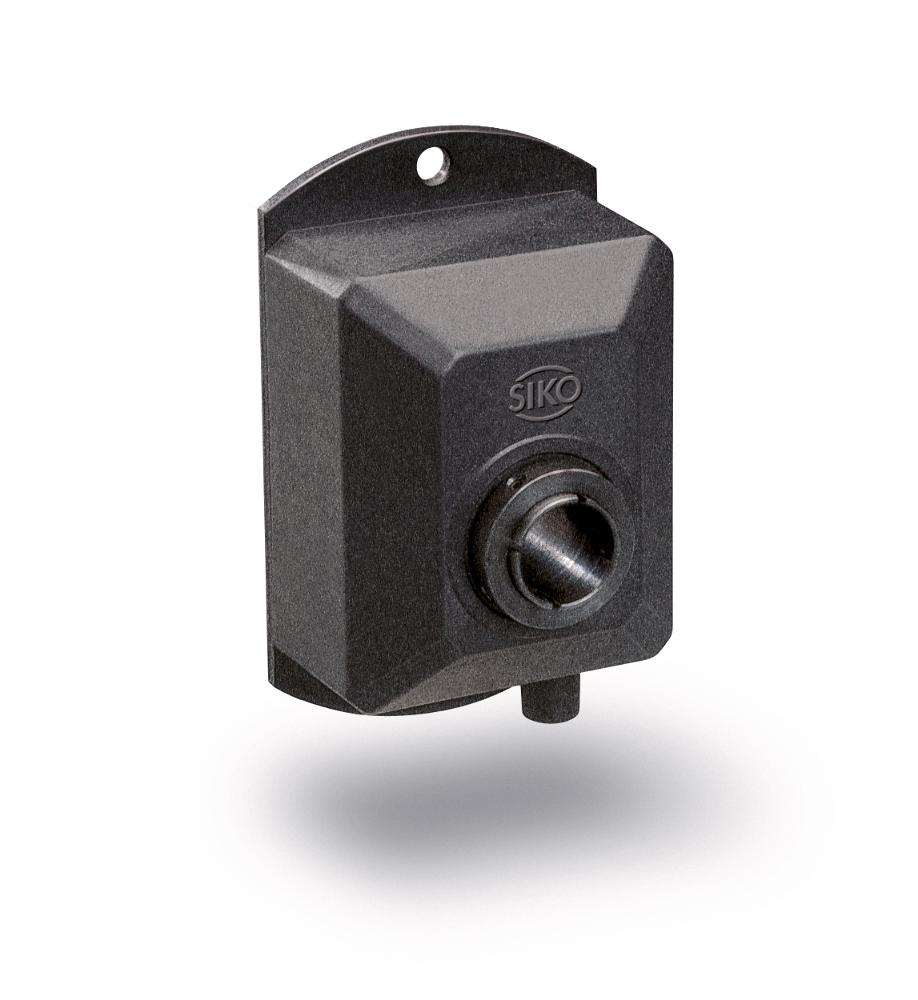

Incremental encoder IG06

Sturdy plastic housing with through hollow shaft
SIKO Global, Incremental encoder IG06
SIKO Global, Incremental encoder IG06
The IG06 incremental encoder features a low-cost design with through hollow shaft and can be mounted easily.
  • Resolutions of max. 1024 pulses/revolution
  • Through hollow shafts up to ø20 mm
  • Housing made of impact-resistant plastic
  • Low-cost version
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Incremental encoder IG06

Technical Specifications

Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.14  kg
shaft
 black-finished steel
Housing
 reinforced plastic
Speed
≤600  min-1
W01 shaft design
≤6000  min-1
W02, W04 shaft design
Moment of inertia
~10.5 x 10-6 kgm2
W01 shaft design
~9.5 x 10-6 kgm2
W02 shaft design
~9 x 10-6 kgm2
W04 shaft design
Starting torque
≤15  Ncm  at 20 °C
W01 shaft design
≤1.5  Ncm  at 20 °C
W02, W04 shaft design
Shaft load rating
 10  N  axial
W01 shaft design
 20  N  radial
W01 shaft design
 25  N  axial
W02, W04 shaft design
 50  N  radial
W02, W04 shaft design
Cable sheath
 PVC or PUR

Ausgangsschaltung PP

Feature
Technical Specifications
Enhancement
Operating voltage
 10 …  30 V DC
reverse polarity protection
Current consumption
 50  mA  typical
without load (AB0 output signals)
Output signal level high
UB -2 V  at 20 mA
Output signal level low
≤1  V  at 20 mA
Pulse frequency
≤25  kHz
Phasing
90° ±30°
Load
±40  mA  short-circuit proof
max. adm.

Ausgangsschaltung OC

Feature
Technical Specifications
Enhancement
Operating voltage
 10 …  30 V DC
reverse polarity protection
Current consumption
 50  mA  typical
without load (AB0 output signals)
Output signal level high
 wiring-dependent
Output signal level low
≤0.1  V DC
Pulse frequency
≤25  kHz
Phasing
90° ±30°
Load
±50  mA
max. adm.

Signal image

Feature
Technical Specifications
Enhancement
Ambient temperature
 0 …  60 °C
Storage temperature
-20 …  80 °C
Protection category
 IP54
EN 60529
Shock resistance
2000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
100 m/s2, 50 Hz
EN 60068-2-6

More information

pin assignment

Output circuit PP, OC

Signal
 E1
 E6X, E6
GND
 gray
 1
A
 yellow
 2
B
 white
 3
O/I
 green
 4
+UB
 brown
 5
nc
 6
nc
 7

Purchase order

maximum pulses in output signals

Output signal
 Plain bearing W01
 Ball bearing W02, W04
AXX
 500
 1024
ABX
 250
 500
AB0
 220
 250
ABI
 220
 250

Note

The max. permissible pulses/revs. must not be exceeded by the output signals.

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Output signals

AXX

AXX

AXX
ABX
AB0
ABI

pulses/
revolution

1

1

1
2
5
10
20
25
36
40
50
60
70
80
100
125
150
180
200
220
240
250
300
360
400
500
600
1000
1024
0

others on request

Cable sheath

PUR

PUR

PUR

PUR, oil-resistant

PVC

PVC

Type of connection

E1

E1

E1

open cable end

E6

cable coupler with cable extension

E6X

cable coupler

Cable length L

00,3

00.3

00,3

0.3 m

only PVC
02.0 0.3 m
02.0  40 m, in intervals of 1 m
only PVC

Cable length L2

00,3

00.3

00,3

0.3 m

only PVC
02.0 0.3 m
02.0  15 m, in intervals of 1 m
only PVC

Mounting type

1

1

1

with blind borehole

2

with mounting plate

Output circuit

PP

PP

PP

push-pull

OC

open collector

shaft design

W01

W01

W01

setscrew/friction bearing

W02

clamping ring/ball bearing

W04

setscrew/ball bearing

hollow shaft/
diameter

20

20

20

20 mm

with W01
14
mm
15
with W02
10
mm
12
with W04

Cable length L

00,3

00.3

00.3
02.0
03.0
only PUR

Cable length L2

00,3

00.3

00.3
02.0
03.0
only PUR

Your order key

IG06 - AXX - 1 - PUR - E1 - 00.3 - 00.3 - 1 - PP - W01 - 20 - 00.3 - 00.3
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Accessories

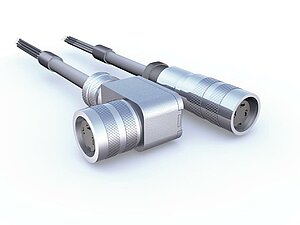

SIKO Global, Cable extension KV07S0
Cable extension KV07S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 7-pole

Go to Product

Comparable products

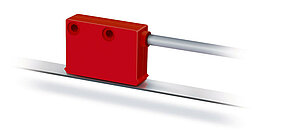

SIKO Global, Magnetic sensor MSK320
Magnetic sensor MSK320

  • Max. resolution 12.5 μm

  • max. resolution 0.006° with MR320 or MBR320 (250 poles)

  • Repeat accuracy ±0.04 mm

Go to Product

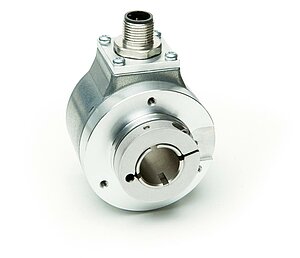

SIKO Global, Incremental encoder IH5815
Incremental encoder IH5815

  • Resolution max. 5000 pulses/revolution

  • Through hollow shaft up to max. ø15 mm

  • Robust bearing construction

Go to Product
