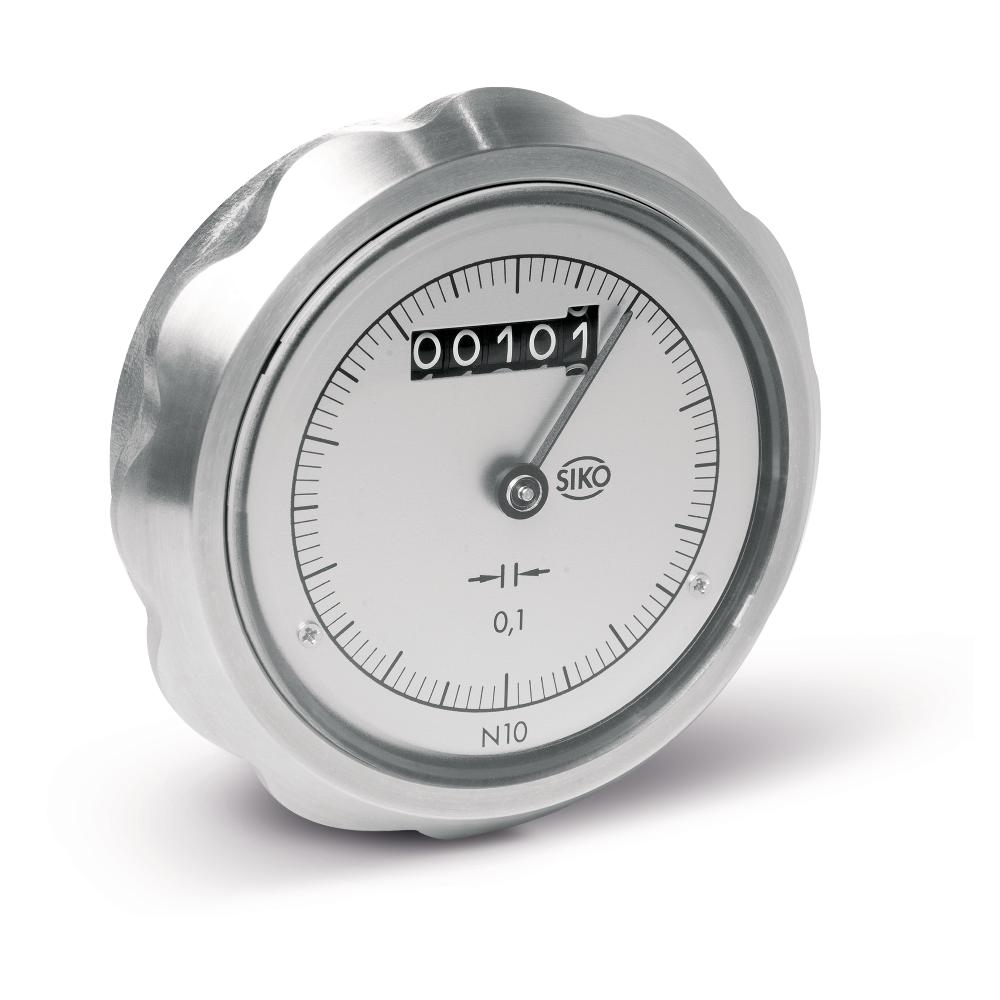

Handwheel HST11
Star wheel made of aluminum
- Plastic-coated or bright-finished surface
- Various hub versions
Technical drawing
Technical Specifications
Dimensions
øD |
ødv |
ødx |
ød1 |
ød2 |
a |
b |
c |
e |
Suitable for |
110 |
6.8 |
16 |
30 |
95 |
56 |
14 |
17 |
22 |
S80/1; SZ80/1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
special processing
Handwheel type |
HST11 |
||||
Bore dH7 |
7, 8 |
9, 10 |
11, 12 |
13 … 15 |
16 |
Groove width with keyway JS9 |
3 |
4 |
5 |
5 |
|
Pin hole |
3.8/12 |
3.8/12 |
3.8/12 |
4.8/12 |
4.8/12 |
Hub thread without keyway JS9 |
M4/12 |
M4/12 |
M4/12 |
M6/12 |
M6/12 |
Hub thread with keyway JS9 |
M3/12 |
M3/12 |
M4/12 |
||
4 |
2 |
2 |
2 |
2 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
surface
B
Bore diameter
6.8
feather key groove
OP
Pinhole
OS
hub thread
ONG
tapered hub
OAN
position indicator
PM
Accessories
Scope of delivery
- HST11
