Positioning drive AG26

Industrial Ethernet

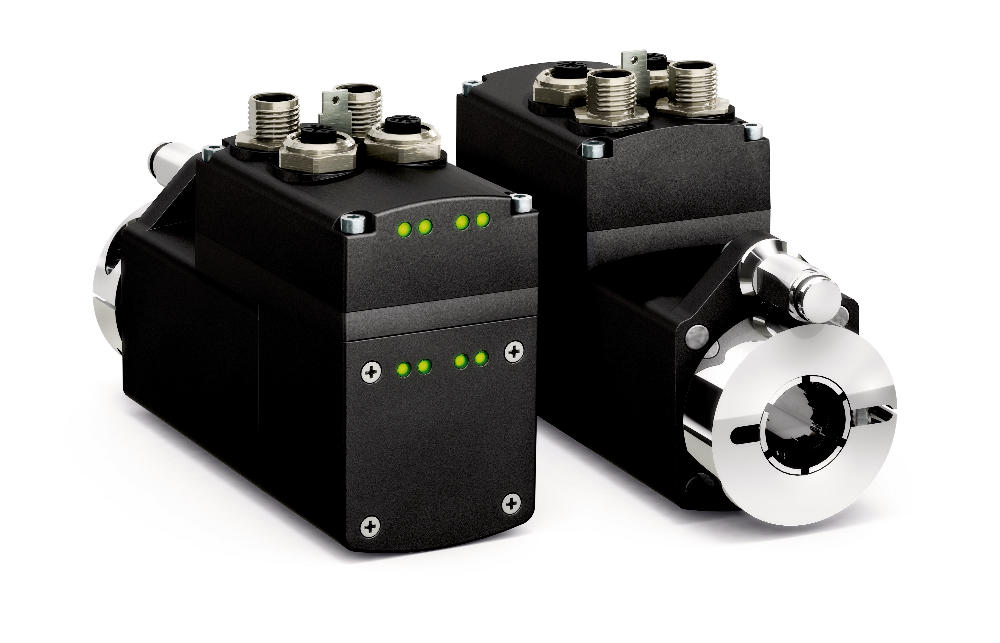

Thanks to special power and control electronics, absolute sensor technology and integrated position controller, the compact AG26 actuator is particularly well suited for optimizing for machining processes and setup times. Areas of application are to be found wherever positioning tasks are to be solved decentrally in the machine or system with as little installation space and low weight as possible. Even high torques can be implemented without problems.

compact dimensions, high power density
easy mounting and commissioning
High flexibility, high protection class
stainless steel 20 mm hollow shaft, robust housing
Brushless EC motor with a long service life
solid absolute sensor, magnetic sensing technology
integrated power and control electronics
Integrated Industrial-Ethernet-Fieldbus
Integrated positioning controller
M12 component mounting technology
Industry 4.0 ready

Ben King

Inside Sales

+1 734 426-3476 ben.king(at)siko-global.com

Cary Mulvany

Manager Business Unit Changeover Solutions

+1 734 426-3476 cary.mulvany(at)siko-global.com

Add to Watchlist

More information

pin assignment

EtherCAT, EtherNet/IP, POWERLINK, PROFINET

Signal	PIN
Tx+	1
Rx+	2
Tx-	3
Rx-	4

Operating voltage (output stage / control)

Signal	PIN
+UB (output stage)	1
+UB (control)	2
GND (output stage)*	3
GND (control)*	4

* internally connected with SGND

Digital inputs / outputs

Signal	PIN
Input 1	1
Input 2	2
Input 3	3
Input 4	4
"Output 1 "	5
RXD	6
TXD	7
SGND*	8

* internally connected with GND of operating voltage

Performance curve

Industry 4.0

In most cases, data exchange with the actuators is limited to the exchange of process data. In addition to the process data, intelligent drives provide additional information that can be evaluated for condition monitoring up to predictive maintenance:

Process data	Smart Value	Smart Function
Actual position	Temperature	Overlaod, ambient temperature
"Target position "	current	Torque, overload
Speed	Volatage load Voltage control	Voltage drop, line break
	On/Off time	Operating time
	Battery voltage	Battery change planning
		Web server (EPN, EIP)

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

188

i = 188

368

i = 368

Protection category

IP54

IP65

interface/
protocol

ECT

EtherCAT

EIP

EtherNet/IP

EPL

POWERLINK

EPN

PROFINET

Your order key

AG26 - 188 - 50W - IP54 - KR/20 - B - ABM - ECT - SW

Would you like to request a non-binding offer?

Quantity:

Downloads

Data sheet

PDF

Quick Start Guide

PDF

DE | EN

User manual

EPN

PDF

DE

EN

EPL

PDF

DE

EN

ECT

PDF

DE

EN

EIP

PDF

DE

EN

3D-CAD model

Link/URL

Installation Instructions

PDF

DE | EN

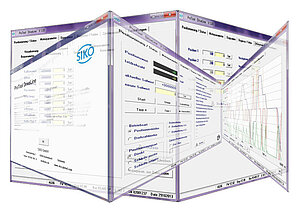

Setup-Package

ZIP

Download

Certificate

UR

PDF

EN

UL

PDF

EN

EPN

PDF

EN

EPL

PDF

EN

EIP

PDF

EN

Scope of delivery

AG26
