Draw-wire encoder SG21
small design for rotary encoder mounting with 2000 mm measuring length
- Wire-actuated encoder for rotary encoder with max. Ø36 mm flange
- Measurement lengths up to 2000 mm
- Sturdy zinc die-cast housing, robust design, stable measuring rope (stainless steel)
- Very compact design
Technical drawing
Technical Specifications
More information
Rotary encoders that can be combined with this wire-actuated encoder

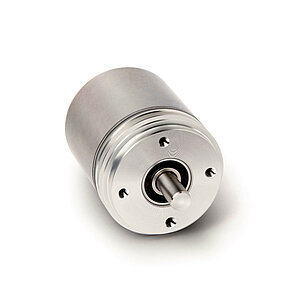

- for analog outputs such as current or voltage: AV3650M

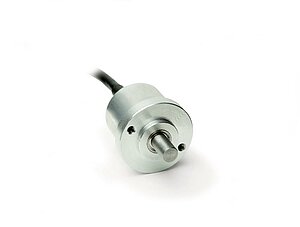

- for incremental outputs: IV2800

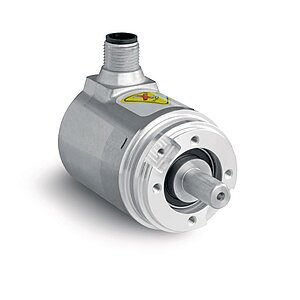

- for absolute outputs: WV3650M, WV36M/CAN
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
