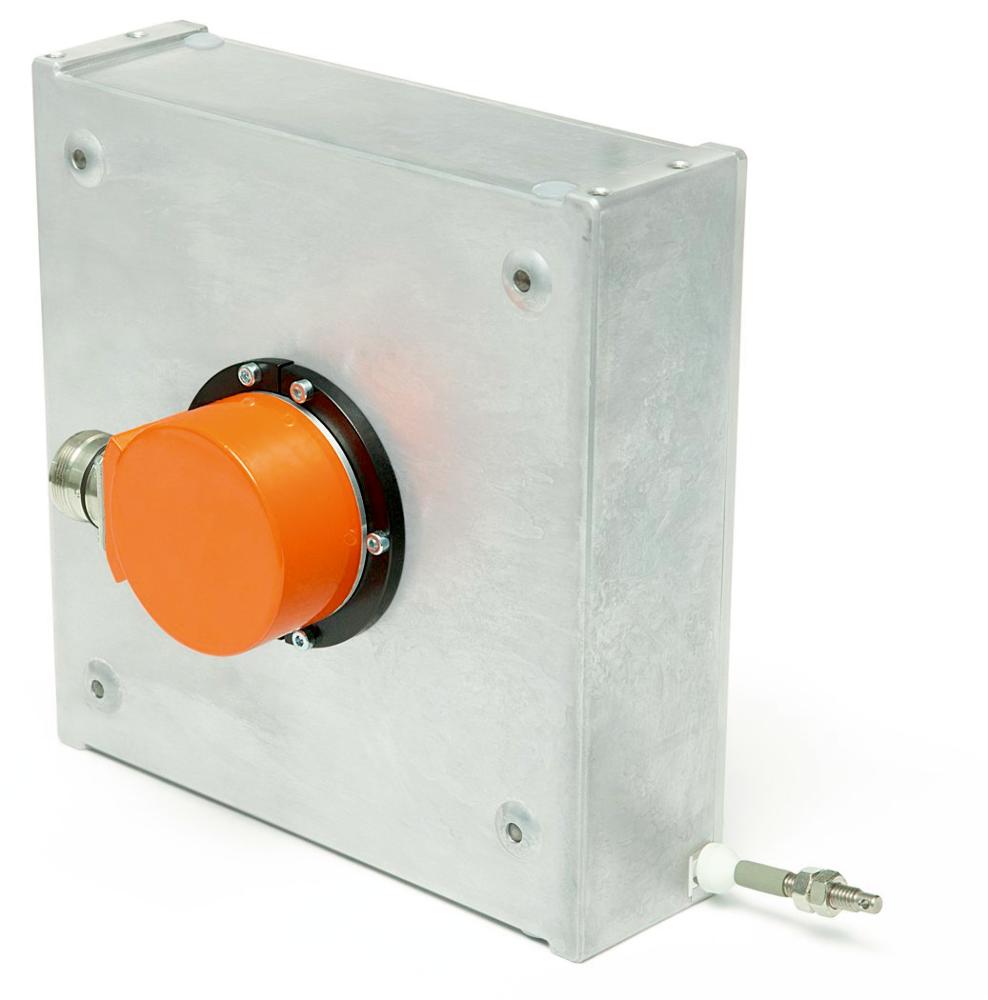

Draw-wire encoder SG150
Robust design with 15 m measuring length
- Very compact design
- Measurement lengths up to max. 15000 mm
- Flexible wire outlet thanks to Wire-Flex technology
- Wire-actuated encoder for rotary encoder with 58 mm servo-flange
- Robust design
- Very robust measuring rope (stainless steel)
- Also available as a safety version in combination with WV58MR rotary encoder
Technical drawing
Technical Specifications
More information
Rotary encoders that can be combined with this wire-actuated encoder
- for analog outputs such as current or voltage: AV3650M, AV58M
- for incremental outputs: IV5800
- for absolute outputs: WV58MR, WV5800M, WV5850, WV3650M, WV36M/CAN
The technical specifications for these devices can be found in the respective data sheets. In addition, numerous encoder variants from different manufacturers can be used.
Hint for mounting
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Measuring range
10000
wire design
S
encoder type
OG6
position of electrical connection
1
Accessories
Comparable products
Scope of delivery
- SG150
- User information
