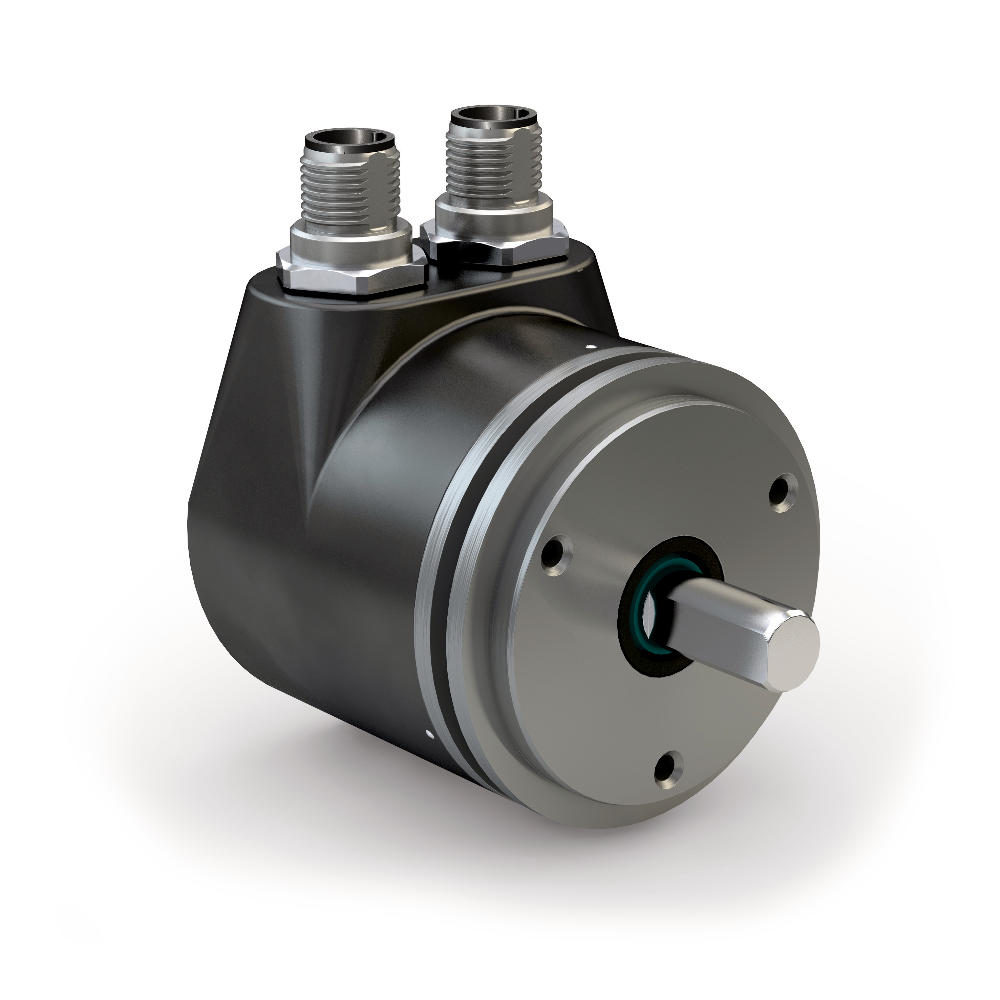

Absolute encoder WV5800M

absolute magnetic rotary encoder with solid shaft
SIKO Global, Absolute encoder WV5800M
SIKO Global, Absolute encoder WV5800M
The WV5800M rotary encoder is a magnetic absolute rotary encoder with solidshaft, which has been specially developed for use in mobile machines. Thanks to itsparticularly robust design and optionally a CANopen or SAE J1939interface, it is ideally suited for tough conditions in mobile machines. It can be flexibly expanded functionally with its PURE.MOBILE extension boards! For example: Integrated inclination sensors, rotary switches for parameterization or digital inputs and outputs. In combination with wire-actuated encoders, the WV5800M can also be used for linear position monitoring.
  • CANopen (DS406) or SAE J1939 interface
  • Salt spray tested housing available
  • High EMC compatibility
  • with PURE.MOBILE technology
  • Optional: Inclination sensor, bus address adjustable via rotary switch, digital I/O
  • E1 Approval by the German Federal Office for Motor Vehicles
  • Single turn or multiturn variant available
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Absolute encoder WV5800M

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.35  kg
shaft
 rustproof stainless steel
Flange
 aluminum
Housing
 aluminum die-cast
CDP-coated
Speed
≤6000  min-1
IP65
≤3000  min-1
IP67
Moment of inertia
≤8  gcm²
Starting torque
≤2  Ncm  at 20 °C
Shaft load rating
≤80  N
radial
≤40  N
axial
Cable sheath
 PVC
E1 connection type
Cable bending radius
>25  mm
E1 connection type, static
Mounting type
 servo-flange
Feature
Technical Specifications
Enhancement
Operating voltage
 8 …  36 V DC
reverse polarity protection
Current consumption
 20  mA  at 36 V
 28  mA  at 24 V
 76  mA  at 8 V
Power input
≤800  mW
without load
Parameter storage
105 cycles
also applies to calibration operations
Status display
 three-color LED (red/green/yellow)
device status/CAN status
Power rating
±36  V
CAN interface
Interface
 according to ISO 11898-1, not electrically isolated
CANopen, CiA 301, CiA 303 Part 3, CiA 305, CiA 406
Address
 1 …  127
Node ID, via SDO or Layer Setting Service (LSS)
Baud rate
 20  kbit/s
 50  kbit/s
 125  kbit/s
 250  kbit/s
 500  kbit/s
 800  kbit/s
 1  Mbit/s
Cycle time
 1.5  ms  typical
Starting time
<150  ms
Parameter
 according to CiA 301, CiA 303 Part 3, CiA 305, CiA 406
CANopen
Type of connection
 1x M12-plug connector (A-coded)
5-pin, 1x pin (E12E connection type)
 2x M12 plug connectors (A-coded)
5-pin, 1x pin, 1x socket (E12 connection type)
 open cable end
E1 connection type
Feature
Technical Specifications
Enhancement
Scanning
 magnetic
Resolution
 14  bit
singleturn, 16384 steps/revolution
Measuring range
 1  rotation(s)
singelturn
 4096  rotation(s)
Approval
 E1
UN ECE R10 approval No.: E1*10R05/01*8898*00
Feature
Technical Specifications
Enhancement
Ambient temperature
-40 …  85 °C
Storage temperature
-40 …  85 °C
Relative humidity
 100  %
condensation admissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
 EN 61326-3.1
immunity requirement of industrial applications, emission limit class B
 ISO 11452-1, -2, -3, -4, -5
Interference radiation ESA
 ISO 7637-1, -2
transient pulses
 ISO 10605
Electrostatic discharge (ESD)
Protection category
 IP65
EN 60529 fitted with suitable mating connector
 IP67
EN 60529
Salt spray test
 severity level 4
EN 60068-2-52 (ambient condition SN)
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks
Vibration resistance
100 m/s2, 10 … 2000 Hz
EN 60068-2-6, 3 axes, each 10 cycles

More information

pin assignment

E12, E12E

Signal
 PIN
nc
 1
+UB
 2
GND
 3
CAN_H
 4
CAN_L
 5

E1

Signal
 Cable color E1
nc
 white
+UB
 brown
GND
 green
CAN_H
 yellow
CAN_L
 gray

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

number of revolutions

1

1

1

singleturn

4096

12 bit

shaft diameter x length

6x10

6x10

6x10

ø6 mm, length 10 mm

10x20

ø10 mm, length 20 mm

S4/10x20

Notch pin, ø10 mm, length 20 mm

S4/10x26

Notch pin, ø10 mm, length 26 mm

N3/10x20

feather key, ø10 mm, length 20 mm

Mounting type

M2

M2

M2

Servo flange, ø58 mm

M3

Servo flange, ø88 mm

ambient conditions

S

S

S

standard

SN

salt spray tested housing

Protection category

IP65

IP65

IP65

IP65

IP67

IP67

Type of connection

E1

E1

E1

open cable end

E12

Bus IN/Bus OUT

E12E

Bus IN

Cable length

01,0

01.0

01.0
in m
02.0
03.0
05.0
10.0
OK

without cable

option

O

O

O

without

DIP

rotary switch, address, baud rate

only with CANopen
IK1

inclination sensor, 1 axis

Your order key

WV5800M - CAN - 16384 - 1 - 6x10 - M2 - S - IP65 - R - E1 - 01.0 - SW - O
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE

3D-CAD model

Link/URL

CAD-Modell

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

E1

PDF

DE | EN

Accessories

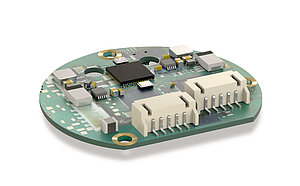

SIKO Global, Extension board DIP
Extension board DIP

  • easy manual setting of baud rate and bus address via rotary switch

  • No speical tools or programming knowledge required

  • easy commissioning

Go to Product
SIKO Global, Extension board IK1
Extension board IK1

  • single-axis inclination sensor 0 ... 360°

  • MEMS capacitive measurement principle

  • temperature-compensated from  -40 … 85° C

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
SIKO Global, Cable extension KV05S0
Cable extension KV05S0

  • Ready-to-use cable connection

  • Cable length 3 m

  • Connection technology M12 (A-coded), 5-pole

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109
Bus terminating connector, 5-pole, pin
82815

Comparable products

SIKO Global, Absolute encoder WH58MR
Absolute encoder WH58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV58MR-Testprodukt
Absolute encoder WV58MR-Testprodukt

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product

Scope of delivery

  • WV5800M
  • Quick Start Guide

SIKO Application Reports

Harvesting robot AurOra

SIKO supports development project for autonomously operating harvesting vehicle in fruit orchards

Measurement and sensor solutions from SIKO are not only found in established industrial applications, SIKO GmbH is also currently supporting an agricultural research and development project with two rotary encoders from its range for mobile machines.

Learn more

Industries relevant to the product

Yellow excavator at work
Construction Machines
Wooden boards at a woodworking company
Woodworking
Rear view of three yellow mobile cranes
Crane and Lifting Technology
SIKO encoder systems for linear or rotary motor feedback
Motor Feedback
SIKO positioning systems for packaging technology
Packaging Technology
Highly precise electronic manufacturing thanks to SIKO's encoder solutions
Assembly and Handling Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Xing

Linkedin

Instagram

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2024 SIKO GmbH
