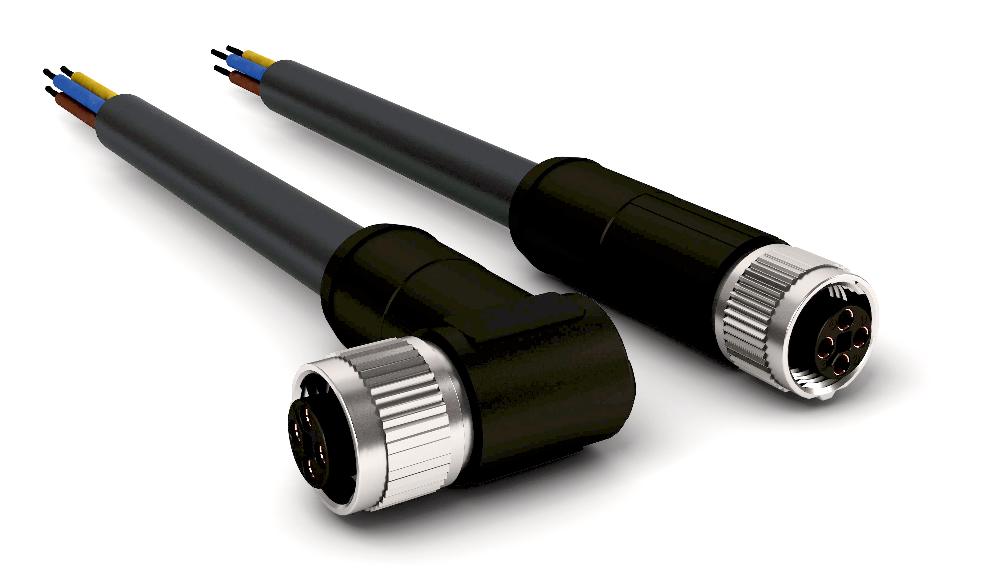

Cable extension KV04S4
Accessories
- Ready-to-use cable connection
- Cable lengths up to 5 m
- Connection technology M12 (T-coded), 4-pole, socket contact
Note
Voltage drop should be envisaged with increasing cable length. This should be taken into account for the electrical design.
Technical drawing
Technical Specifications
More information
pin assignment
|
Cable color |
PIN |
|
brown |
1 |
|
white |
2 |
|
blue |
3 |
|
black |
4 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Type of connection
GE
Cable length
01.5
Scope of delivery
- KV04S4
