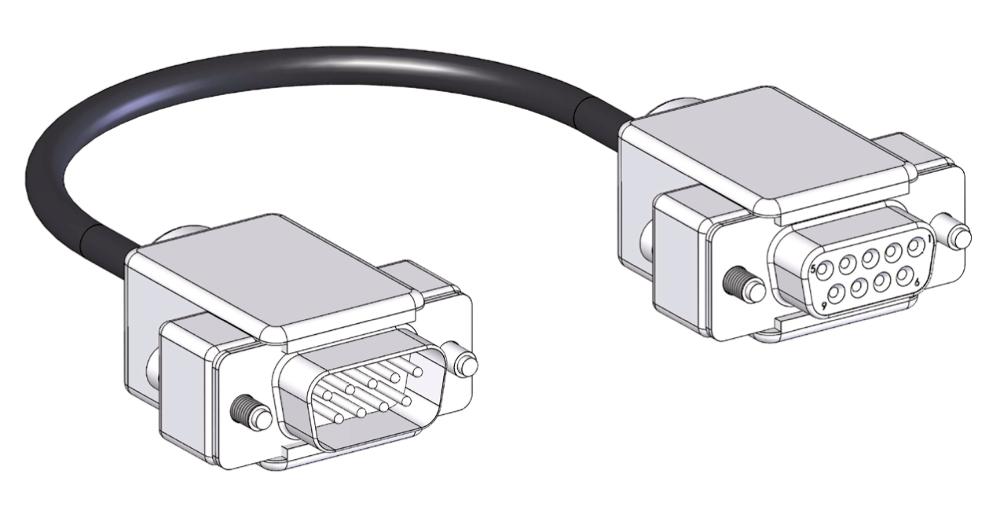

Cable adaptor KA485BAS
Accessories
- Accessories for the interface converter for SIKONETZ5 devices
- integrated level specification for the RS485 network
- with 24 V supply as an option
- 9-pole DSUB pin/socket or 9-pole DSUB pin/4-pole M8 socket
Technical drawing
Technical Specifications
More information
pin assignment
9-pole DSUB socket
|
Signal |
PIN |
|
nc |
1 |
|
nc |
2 |
|
nc |
3 |
|
nc |
4 |
|
SGND |
5 |
|
nc |
6 |
|
nc |
7 |
|
TxRx+ |
8 |
|
TxRx- |
9 |
4-pole M8 socket
|
Signal |
PIN |
|
TxRx-/DÜB |
1 |
|
TxRx+/DÜA |
2 |
|
+UB |
3 |
|
GND |
4 |
litz wires
|
Signal |
Color |
|
+24 V |
red |
|
GND |
black |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Cable length
00.2
Type of connection
DSUB/DSUB
Cable length strands
O
Scope of delivery
- KA485BAS
