Geared potentiometer GP03/1

Compact design with solid shaft
SIKO Global, Geared potentiometer GP03/1
SIKO Global, Geared potentiometer GP03/1
  • Solid shaft Ø 4 mm or Ø 6 mm
  • Adaptation to various measurement distances owing to a wide range of gear ratios
  • Integrated slip clutch to protect the potentiometer
  • Compact design
  • Potentiometer, power or voltage output
  • IP65 protection class
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Geared potentiometer GP03/1

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
shaft
 rustproof stainless steel
Housing
 reinforced plastic / aluminum
Gear ratio
 0.2 …  256
Speed
≤500  min-1
depending on transmission
Shaft load rating
≤400  N
radial
≤150  N
axial
Potentiometer service life
1 x 106 rotation(s)

Geber Potentiometer Typ 01, 1 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 1  W  at 70 °C
≤30 V
resistance
 5  kΩ , 10  kΩ
Resistance tolerance
±10  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±1  %
Design
 hybride

Geber Potentiometer Typ 02, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±0.25  %
Design
 wire

Geber Potentiometer Typ 03, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±0.25  %
Design
 hybride

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output current
 4 …  20 mA  at load 500 Ω

Messwandler, Spannungsausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output voltage
 0 …  10 V
Feature
Technical Specifications
Enhancement
Measuring range
340° ±5°  (mechanical full-length)
potentiometer type 01
3600° +10°
potentiometer types 02, 03
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 …  80 °C
Relative humidity
condensation inadmissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP65
EN 60529

More information

pin assignment

without transducer

Signal
 Terminal E1
 PIN EX
Pe
 1
 1
Po
 2
 2
S
 3
 3
nc
 -
 4

MWI transducer

Signal
 Terminal E1
 PIN EX
I+
 1
 1
I-
 2
 2
nc
 3
 3
nc
 -
 4

MWU transducer

Signal
 Terminal E1
 PIN EX
+24 V DC
 1
 1
GND
 2
 2
Uout
 3
 3
nc
 -
 4

Purchase order

Gear ratio calculation

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

0,1

0.1

0.1
0.166
0.25
0.333
0.5
1
2
3
4
5
6
7
10
12
15
20
24
30
40
55
0

others on request

Type of connection

E1/7

E1/7

E1/7

PG7 cable gland

E1/9

PG9 cable gland

EX

M12 plug

potentiometer type

01

01

01

1 helix, hybrid

only for P05 or P10 analog output
02

10 helices, hybrid

03

10 helices, wire

analog output

MWI

MWI

MWI

transducer 4 … 20 mA

MWU

transducer 0 … 10 V

P01

potentiometer 1 kΩ

P05

Potentiometer 5 kΩ

P10

potentiometer 10 kΩ

Sense of rotation

<leer>

<leer>

<leer>

no information required

only for P01, P05, or P10 analog output
e

counter-clockwise ascending values

only for MWI or MWU analog output
i

clockwise ascending values

only for MWI or MWU analog output

Your order key

GP03/1 - 0.1 - V/6 - E1/7 - 01 - MWI - <leer>
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR
DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Accessories

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
SIKO Global, Flexible coupling AK18
Flexible coupling AK18

  • Backlash-free compensation of mechanical manufacturing tolerances

Go to Product

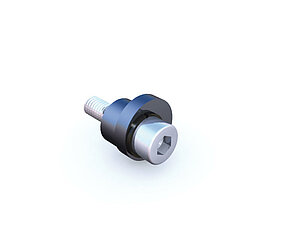

SIKO Global, Servo clamp SK
Servo clamp SK

  • For easy and secure fastening of rotary encoders with servo-flange

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
83419

Comparable products

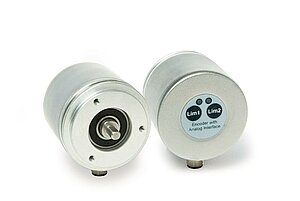

SIKO Global, Absolute encoder AV58M
Absolute encoder AV58M

  • Absolute analog encoder

  • 13 Bit (8192) resolution over the measuring range

  • Operating tmperature until -40 °C

Go to Product

Scope of delivery

  • GP03/1
  • Installation Instructions
