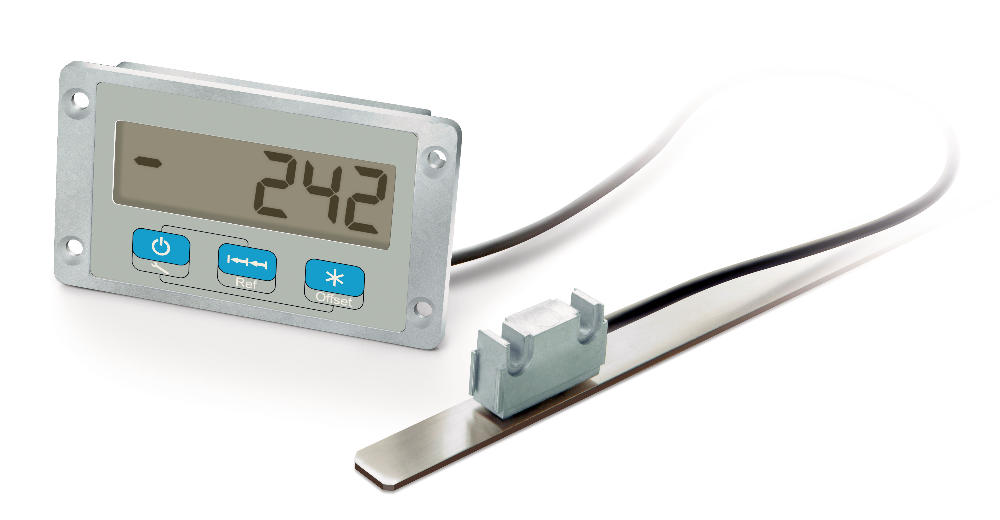

Measurement display MA508/1
quasi-absolute, mains-independent LCD display, robust metal housing
- Display accuracy max. 0.01 mm
- Repeat accuracy 0.01 mm
- Low-power LCD with integrated sensor
- Supply via integrated battery with up to 10 years of service life
- Freely programmable directly via buttons on the device
Technical drawing
Technical Specifications
More information
Hint for mounting
|
Sensor design |
ES |
|
A, Sensor/tape reading distance |
≤2 mm |
|
B, Lateral offset |
±2 mm |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±1° |
|
E, Lateral inclination |
±3° |
Note
The connection must not be changed(e.g., different cable, cable length …)
System components
Purchase order
Product configuration
Feature
Select specifications
Enhancement
sensor model
IS
sensor design
<leer>
sensor cable length
00.1
Scope of delivery
- MA508/1
- Installation Instructions
