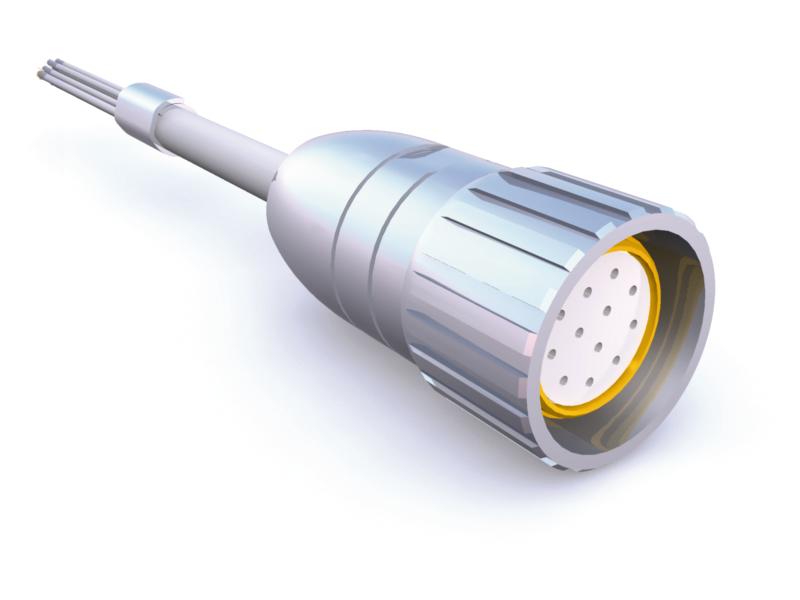

Cable extension KV12S1
Accessories
- Ready-to-use cable connection
- Cable lengths up to 20 m
Note
Voltage drop should be envisaged with increasing cable length. This should be taken into account for the electrical design.
Technical drawing
Technical Specifications
More information
pin assignment
KV12S2
|
Cable color |
PIN |
|
blue |
1 |
|
violet |
2 |
|
green |
3 |
|
red |
4 |
|
yellow |
5 |
|
Pink |
6 |
|
red-blue |
7 |
|
white |
8 |
|
gray-pink |
9 |
|
gray |
10 |
|
black |
11 |
|
brown |
12 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Cable length
01.0
Scope of delivery
- KV12S1
