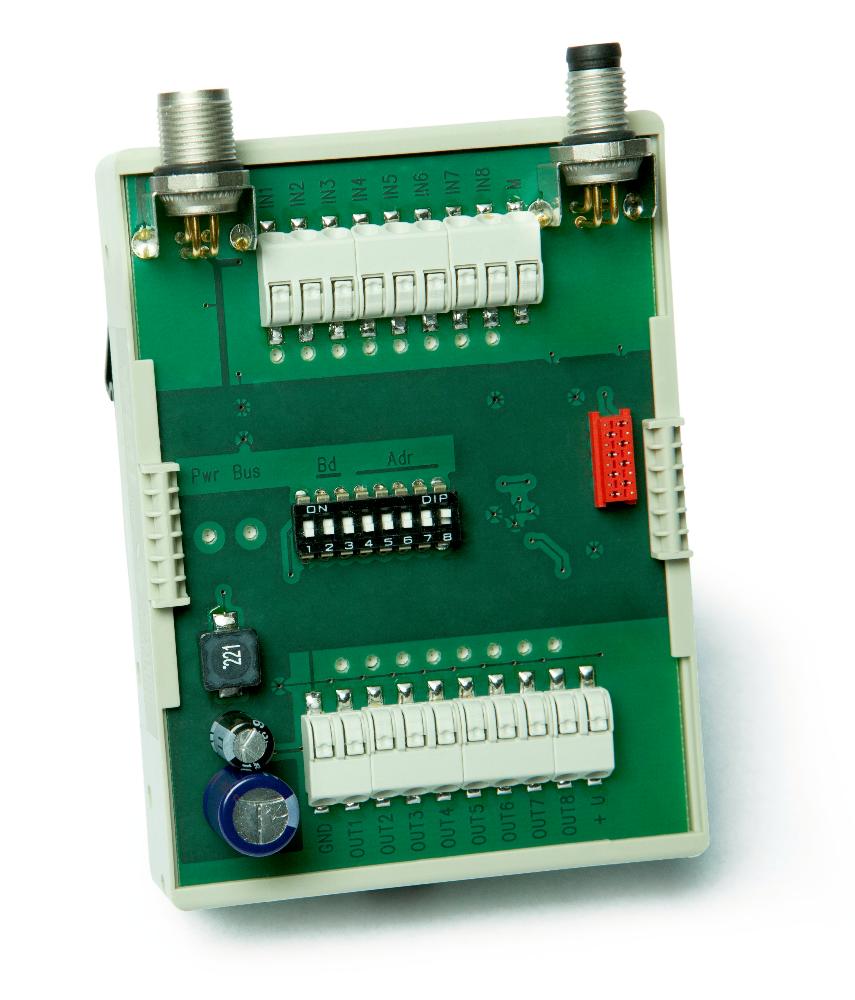

I/O module IO20
With bus interface
- IO module for evaluating digital sensors and controlling actuators
- Output of system information of ETC5000
- SIKONETZ5 interface
- 8 digital inputs
- 8 digital outputs
- Easy mounting (top-hat rail)
Technical drawing
Technical Specifications
Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.1
 kg
Housing
 plastic
Housing design
 snap module housing
top hat rail mounting
Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
via bus plug connector
Current consumption
~20
 mA
without load
Digital inputs
 8x opto-coupler inputs, PNP
24 V, threshold ~12 V - LED green
Digital outputs
 8x high side driver, PNP
≤30 V, ≤350 mA per channel, short-circuit proof, reverse polarity protectedthe total of all outputs must not exceed 2 A
Interface
 RS485
SIKONETZ5
Address
 bus addresses 0 … 31 can be set via DIP switches
factory setting: address 1
Baud rate
 can be set via dip switch
factory setting: 57.6 kBd
Type of connection
 2x M8 plug connectors (A-coded)
4-pole, 1x socket, 1x pin
 2x spring terminal
9-pole, 10-pole, 0.2 … 0.75 mm²
Feature
Technical Specifications
Enhancement
Ambient temperature
0 … 60 °C
Storage temperature
-30 … 85 °C
Relative humidity
condensation inadmissible
Protection category
 IP00
EN 60529
More information
pin assignment
Interfaces
RS485 |
PIN |
TxRx-/DÜB |
1 |
TxRx+/DÜA |
2 |
+24 V DC |
3 |
GND |
4 |
Purchase order
Accessories
Additional Accessories
Order key
Bus terminating connector, 4-pole, pin
BAS-0005
Scope of delivery
- IO20
- Installation Instructions
