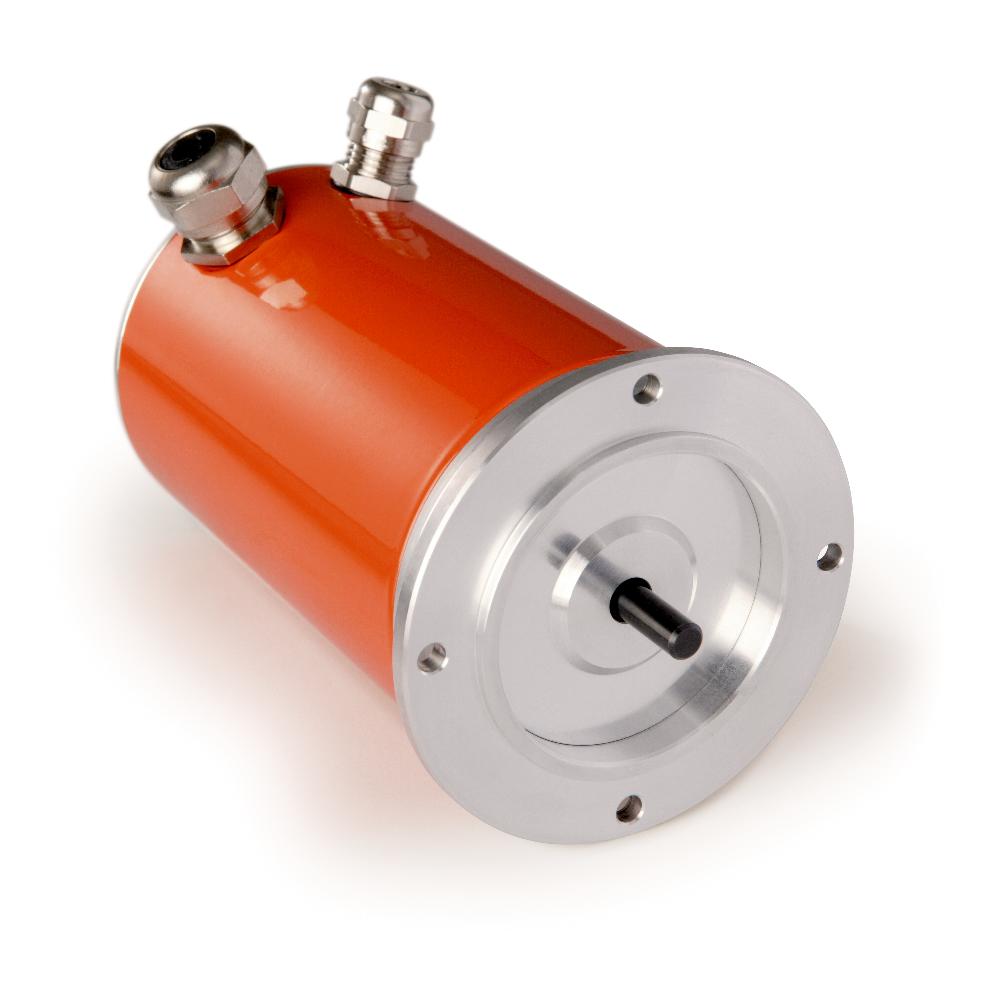

Geared potentiometer GP43

Aluminum housing with solid shaft

Solid shaft Ø 6 mm
Adaptation to various measurement distances owing to a wide range of gear ratios
Integrated slip clutch to protect the potentiometer
Compact design
Potentiometer or power output
IP65 protection class
Up to 3 cam-operated switch outputs, freely adjustable

Ben King

Inside Sales

+1 734 426-3476 ben.king(at)siko-global.com

August Meyers

Manager Business Unit Mobile Automation

+1 734 426-3476 august.meyers(at)siko-global.com

Add to Watchlist

More information

pin assignment

Potentiometric outputs P01, P05, P10

Signal	Terminal
Po	11
Pe	13
S	12

MMW transducer

Signal	Terminal
I+	12
I-	11
nc	13

Cam

Assignment	Switch cam A Terminal	Switching cam B terminal	Switching cam C terminal
	3	4	7
	2	5	8
	1	6	9

Purchase order

Gear ratio calculation

Switch cam order

Digit 1	"Digit 2 "	Digit 3	Ordering data
Cam shape 2			2
Cam shape 1	Cam shape 3		13
Cam shape 1	Cam shape 2	Cam shape 3	123

Example of order table, characteristic G

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

0,1/10

0.1/10

0.2/10

0.25/10

0.333/10

0.5/10

0.5/2.5

1

1.400

2

2.14

2.500

3

4

5

5.385

6

7

10

12

14

15

20

21

24

30

33

35

40

48

55

60.5

64

65.154

70

80

96

101.5

121

150

256

463.830

512

0

others on request

potentiometer type

01

1 helix, hybrid

02

10 helices, wire

03

10 helices, hybrid

03/0,1

10 helices, hybrid, linear tolerance ±0.1 %

resistance

1

potentiometer 1 kΩ

5

Potentiometer 5 kΩ

10

potentiometer 10 kΩ

transducer

MMW

transducer 4 … 20 mA

only only for resistance 10 and potentiometer type 02 or 03

OMW

without

Sense of rotation

<leer>

no information required

only for OMW transducer

e

counter-clockwise ascending values

only for MMW transducer

i

clockwise ascending values

only for MMW transducer

cam/
form

1

2

3

11

12

13

22

23

33

111

112

113

122

123

221

222

223

233

331

333

0

others on request

switching voltage

1

over 48 V electric strength

2

up to 48 V electric strength

Your order key

GP43 - 0.1/10 - V/6 - 01 - 1 - MMW - <leer> - 1 - 1

Would you like to request a non-binding offer?

Quantity:

Downloads

Data sheet

PDF

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Scope of delivery

GP43
Installation Instructions

SIKO Application Reports

The measurement technology manufacturer SIKO relies on high-precision MEGATRON potentiometers

SIKO GmbH from Buchenbach specializes in the production of industrial measurement and drive technology. The company places high demands on its products and has therefore further optimized its wire-actuated encoders and geared potentiometers. Precision potentiometers from MEGATRON will be used for…

Learn more

Geared potentiometer GP43

Technical drawing

Technical Specifications

Geber Potentiometer Typ 01, 1 Wendel

Geber Potentiometer Typ 02, 10 Wendel

Geber Potentiometer Typ 03, 10 Wendel

Geber Potentiometer Typ 03/0.1, 10 Wendel

Messwandler, Stromausgang

Load capacity of the switching cams
