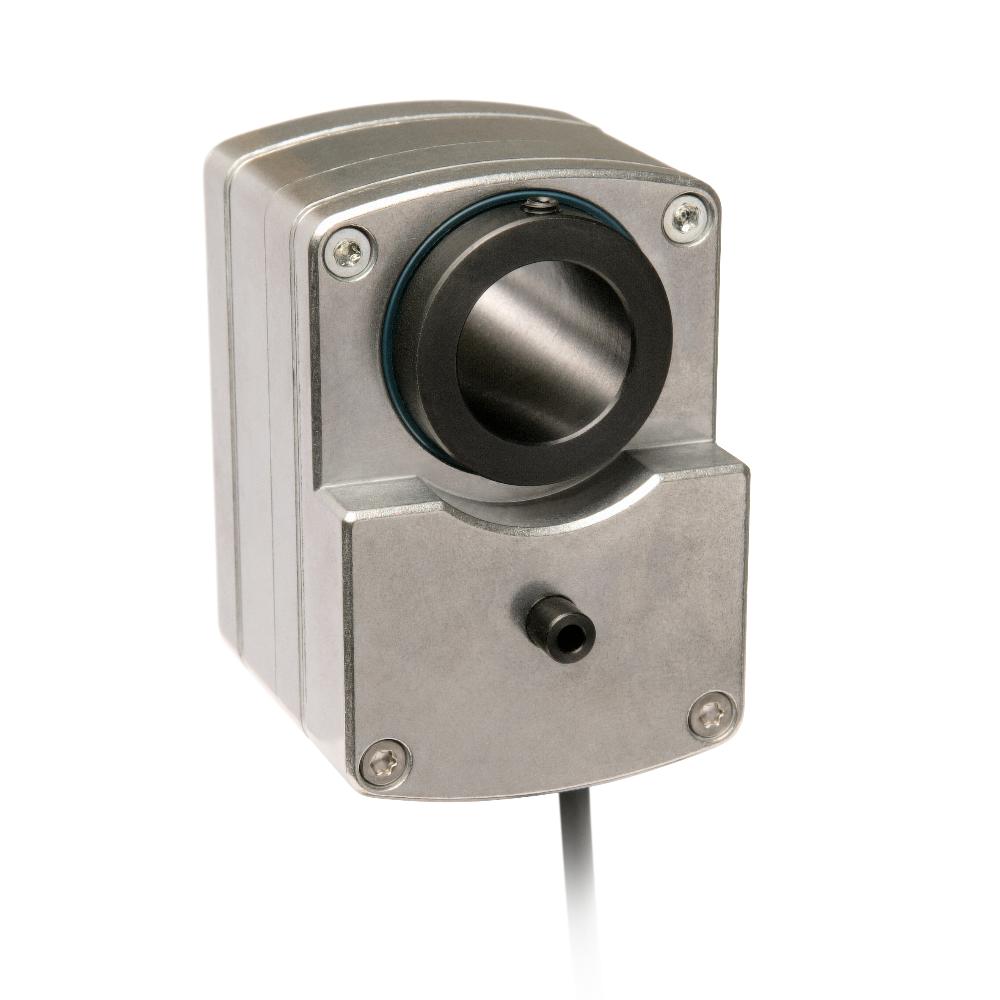

Geared potentiometer GP09

Robust housing with through hollow shaft
SIKO Global, Geared potentiometer GP09
SIKO Global, Geared potentiometer GP09
  • Resistant to external influences
  • Through hollow shafts up to ø20 mm
  • Adaptation to various measurement distances owing to a wide range of gear ratios
  • Integrated slip clutch to protect the potentiometer
  • Compact design
  • Potentiometer, power or voltage output
  • IP68 protection class with oil filling possible
  • Easy mounting
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
August Meyers
August Meyers
Manager Business Unit Mobile Automation
+1 734 426-3476 august.meyers(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • More information
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Geared potentiometer GP09

Technical Specifications

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical Specifications
Enhancement
shaft
 rustproof stainless steel
Housing
 zinc die-cast
Gear ratio
 0.2 …  244
Speed
≤500  min-1
depending on transmission
Shaft load rating
≤400  N
radial
≤150  N
axial
Potentiometer service life
1 x 106 rotation(s)

Geber Potentiometer Typ 01, 1 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 1  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±10  %
Standard terminal resistance
 0.5  %
Linearity tolerance
±1  %
Design
 hybride

Geber Potentiometer Typ 02, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.2  %
Linearity tolerance
±0.25  %
Design
 wire

Geber Potentiometer Typ 03/0.1, 10 Wendel

Feature
Technical Specifications
Enhancement
Power rating
 2  W  at 70 °C
≤30 V
resistance
 1  kΩ , 5 , 10  kΩ
Resistance tolerance
±5  %
Standard terminal resistance
 0.2  %
Linearity tolerance
±0.1  %
Design
 hybride

Messwandler, Stromausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output current
 4 …  20 mA  at load 500 Ω

Messwandler, Spannungsausgang

Feature
Technical Specifications
Enhancement
Operating voltage
24 V DC ±20 %
Output voltage
 0 …  10 V
Feature
Technical Specifications
Enhancement
Measuring range
340° ±5°  (mechanical full-length)
potentiometer type 01
3600° +10°
potentiometer types 02, 03/0.1
Feature
Technical Specifications
Enhancement
Ambient temperature
-20 …  80 °C
without oil fill
-10 …  80 °C
with oil fill
Relative humidity
condensation inadmissible
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP52, IP65, IP68
EN 60529

More information

pin assignment

without transducer

Signal
 Cable color E1
 PIN E12
Po
 white
 1
S
 green
 2
Pe
 brown
 3
nc
 -
 4

MWI transducer

Signal
 Cable color E1
 PIN E12
I-
 white
 1
nc
 -
 2
I+
 brown
 3
nc
 -
 4

MWU transducer

Signal
 PIN E12
GND
 white
 1
Uout
 green
 2
+24 V DC
 Braun
 3
nc
 -
 4

Purchase order

Gear ratio calculation

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Gear ratio

0,184

0.184

0.184
0.27
0.361
0.740
1
2
2.503
3.048
4
5.213
6
8.003
10
12
15.238
20
24.167
40.034
45.494
53.333
58.333
76.190
100.392
150.036
0

others on request

torque pin/
form

A

A

A

form A, cylindrical pin

B

form B, for tolerance compensation

potentiometer type

01

01

01

1 helix, hybrid

02

10 helices, wire

03/0,1

10 helices, hybrid, linear tolerance ±0.1 %

analog output

MWI

MWI

MWI

transducer 4 … 20 mA

MWU

transducer 0 … 10 V

P01

potentiometer 1 kΩ

P05

Potentiometer 5 kΩ

P10

potentiometer 10 kΩ

Sense of rotation

<leer>

<leer>

<leer>

no information required

only for P01, P05, or P10 analog output
e

counter-clockwise ascending values

only for MWI or MWU analog output
i

clockwise ascending values

only for MWI or MWU analog output

Type of connection

E1

E1

E1

open cable ends

E12

connector, M12

Cable length

00,3

00.3

00.3 m, in intervals of 0.1 m
00.3  20.0 m, in intervals of 0.1 m

Protection category

IP52

IP52

IP52

IP52

IP65

IP65

IP68

IP68

with oil filling, against condensation

number of revolutions

<leer>

<leer>

<leer>

no information required, adjustable by customer

except with IP68
0.17
0.25
0.333
0.6
1
2.5
4
5
10
12
20
24
40
60
75
100
only with IP68 type of protection and analog output MWI, MWU
0

others on request

only with IP68 type of protection and analog output MWI, MWU

Your order key

GP09 - 0.184 - 20 - A - 01 - MWI - <leer> - E1 - 00.3 - IP52 - <leer>
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Accessories

SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 4-pole, socket
83526

Comparable products

SIKO Global, Absolute encoder AH25S

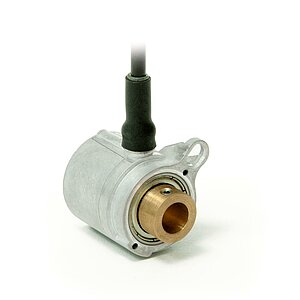

Absolute encoder AH25S

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection class

Go to Product
SIKO Global, Absolute encoder AH36M

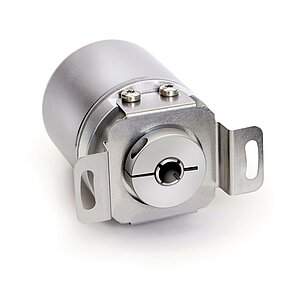

Absolute encoder AH36M

  • Absolute analog encoder

  • 13 Bit (8192) resolution over the measuring range

  • 13 Bit (8192) resolution over the measuring range

Go to Product

Scope of delivery

  • GP09
  • Installation Instructions

Industries relevant to the product

Yellow excavator at work
Construction Machines
Wooden boards at a woodworking company
Woodworking
Rear view of three yellow mobile cranes
Crane and Lifting Technology
SIKO encoder systems for linear or rotary motor feedback
Motor Feedback
SIKO positioning systems for packaging technology
Packaging Technology
Highly precise electronic manufacturing thanks to SIKO's encoder solutions
Assembly and Handling Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Xing

Linkedin

Instagram

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2024 SIKO GmbH
