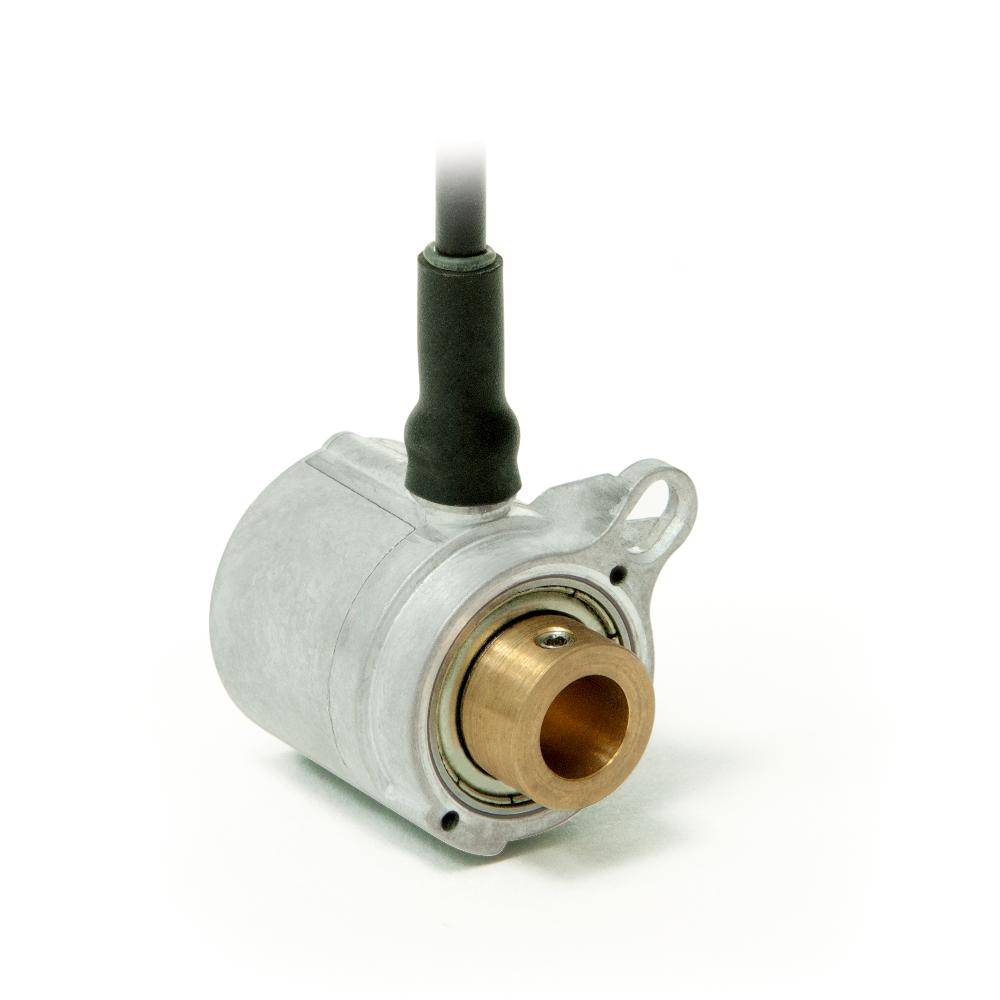

Absolute encoder AH25S
robust absolute single-turn rotary encoder
- Miniature absolute analog encoder
- 12 bit (4096) resolution over 360°
- IP65 protection class
- -40 … 85° C operating temperature
- Voltage (0 … 10 V, 0.5 … 4.5 V), current (0 … 20 mA, 4 … 20 mA) outputs
- Easy mounting by hollow shaft ø8mm
Technical Specifications
More information
pin assignment
Transducer, power output
Assignment |
Cable color E1 |
GND |
white |
IOUT |
green |
+UB |
brown |
Transducer, voltage output
Assignment |
Cable color E1 |
GND |
white |
UOUT |
green |
+UB |
brown |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
Cable length
01.0
output
0.5/4.5V
Sense of rotation
i
Comparable products
Scope of delivery
- AH25S
