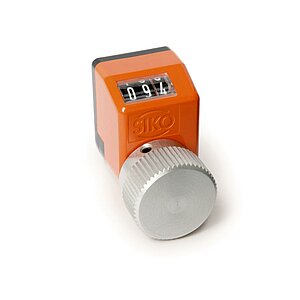

Digital position indicator DA02
Very small design
- Ultra-small design
- Hollow shaft with max. Ø of 10 mm
- Minimum axle base of 19 mm
- Counter can be designed for “mm” or “inch”
- Stainless-steel driving shaft as an option
Technical drawing
Technical Specifications
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
010 |
500 (1500) |
|
015 |
500 (1000) |
|
020 |
500 (750) |
|
025 |
500 (600) |
|
030 |
500 |
|
040 |
375 |
|
050 |
300 |
|
060 |
250 |
|
080 |
180 |
|
100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Purchase order
Ordering information
Product configuration
Feature
Select specifications
Enhancement
Mounting position
02
indication after 1st revolution
7/5
decimal place
0
Counting direction
i
hollow shaft/
diameter
10
Color
O
Scope of delivery
- DA02
