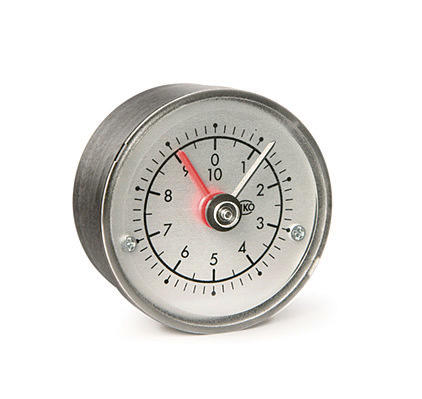

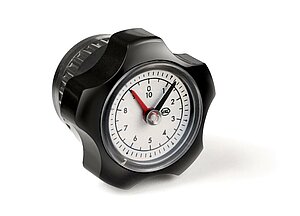

Analog position indicator S50/1

For small SIKO handwheels
SIKO Global, Analog position indicator S50/1
SIKO Global, Analog position indicator S50/1
  • analog position indicator
  • Measured value acquisition based on the gravity principle
  • High stability thanks to doubly supported pointer shaft
  • Very robust, glass-fiber reinforced plastic housing
  • Wide range of gear ratios
  • Special scales, also for small numbers of pieces
  • Dustproof, oil-filled or waterproof versions
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • System components
  • Purchase order
  • Downloads

Technical drawing

SIKO Global, Analog position indicator S50/1

Technical Specifications

Mechanical data
Feature
Technical Specifications
Enhancement
Weight
 0.1  kg
N, W design
 0.1  kg
P design
Housing
 reinforced plastic

System components

SIKO Global, Handwheel HG5
Handwheel HG5
SIKO Global, Handwheel HR6
Handwheel HR6
SIKO Global, Handwheel HST7
Handwheel HST7
SIKO Global, Handwheel KHB9
Handwheel KHB9
SIKO Global, Analog position indicator S50/1
Analog position indicator S50/1

Purchase order

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

version

N

N

N

dust-proof

P

oil-filled

W

waterproof

Gear ratio

1

1

1
2
3
6
10
12
15
18
20
24
30
36
48
50
60
72
84
96
100
0

others on request

Sense of rotation

i

i

i

clockwise ascending values

e

counter-clockwise ascending values

Pointer

1

1

1

red with transmission

2

red with transmission + black 1:1

covering glass

S

S

S

plastic

A

synthetic material, aceton-resistant

scale

N…

N…

N…

normal scale

related to the transformation ratio
VK…

special scale

customer-specific, no VK for first production

multi-color scale

C1

C1

C1

1-colored

C2

2-colored

C3

3-colored

Your order key

S50/1 - N - 1 - i - 1 - S - N… - C1
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Scope of delivery
