Magnetic tape MB320/1
Incrementally coded scale, pole length 3.2 mm
- Easy adhesive mounting, self-assembly possible
- Reels up to 100 m available
- Linearity deviation up to ±50 μm
- Linearity deviation up to ±50 μm
Technical drawing
Technical Specifications
Dimensions
Reference points [m] |
|
Fixed distance X |
0.032 |
Periodic P |
0.032, 0.32 |
Onetime E |
0.032, 0.064, 0.096, 0.128, 0.3, 0.32 |
Purchase order
Ordering information
Measured distance + sensor length "S" + (2 x forerun or overrun "B", resp.).
S |
see the drawing of the sensor used |
B |
10 mm (forerun and overrun) |
1 |
7 |
Product configuration
Feature
Select specifications
Enhancement
length
000.10
tapewidth
10
material carrier tape
St
adhesive carrier tape
TM
cover strip
AM
reference point
O
reference point position
0.032
reference point position
0.032

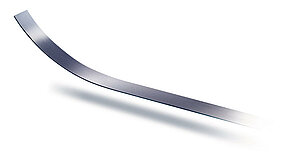

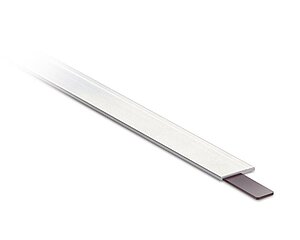

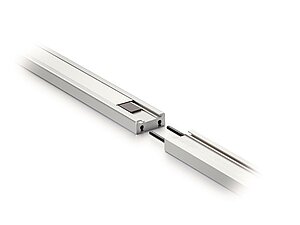

Accessories
Scope of delivery
- MB320/1
