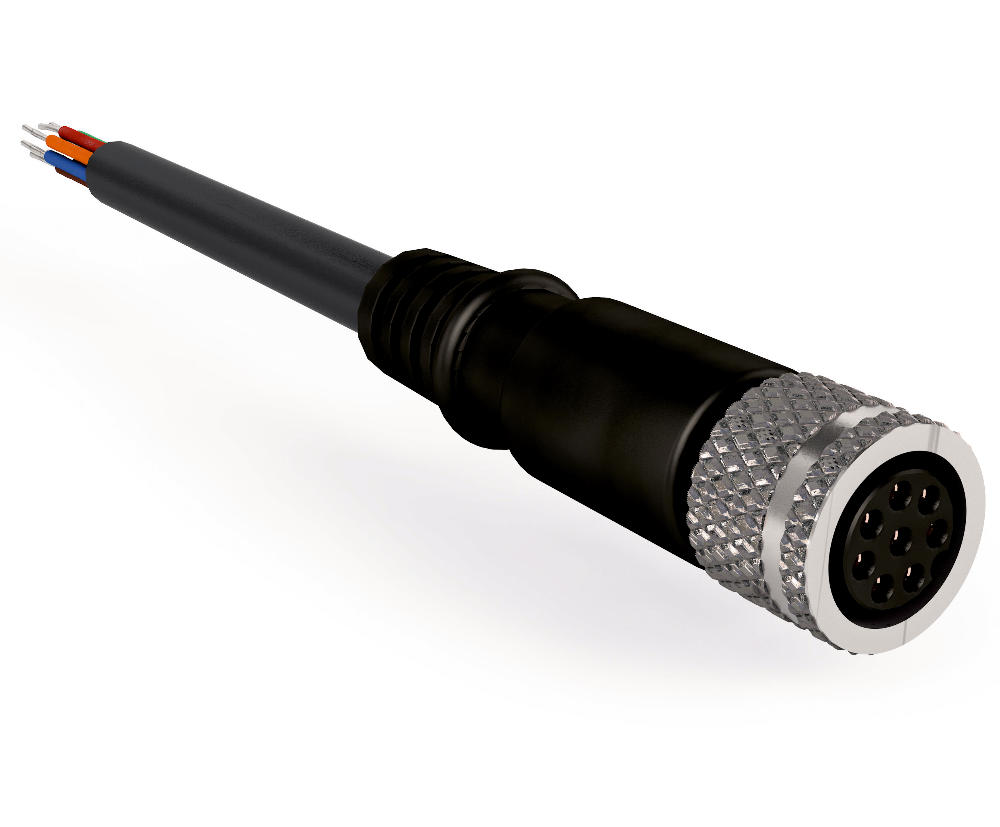

Cable extension KV1C
Accessories MSC…
- Ready-to-use cable connection
- Cable lengths up to 20 m
- Connection technology socket, 8-pole
Note
Voltage drop should be envisaged with increasing cable length. This should be taken into account for the electrical design.
Technical drawing
Technical Specifications
More information
pin assignment
Signal |
4-core |
5-core |
6-core |
8-core |
PIN |
A |
red |
red |
red |
red |
2 |
B |
orange |
orange |
orange |
orange |
3 |
I, R |
blue |
blue |
6 |
||
+UB |
Braun |
Braun |
Braun |
Braun |
8 |
GND |
black |
black |
black |
black |
1 |
/A |
yellow |
yellow |
4 |
||
/B |
green |
green |
5 |
||
/I, /R |
violet |
7 |
Purchase order
Product configuration
Feature
Select specifications
Enhancement
core number
4
Cable length
02.0
Scope of delivery
- KV1C
