Electronic position indicator DE04

Freely programmable
SIKO Global, Electronic position indicator DE04
SIKO Global, Electronic position indicator DE04
SIKO Global, Electronic position indicator DE04
SIKO Global, Electronic position indicator DE04
The DE04 is a freely programmable and battery-powered position indicator. The position indicator DE04 provides maximum flexibility, since the always same basic device can be parameterized to the desired spindle pitch, display accuracy and reading position in an application-specific manner. Parameterization is conveniently performed via programming software via an external interface.
  • Freely programmable electronic digital display for length or angular measurement
  • Freely programmable via the ProToolDE programming software
  • Hollow shaft, max. Ø 14 mm
  • LCD display with 5 digits and special characters
  • Digit height approx. 8 mm
  • Reset, incremental measurement, offset via keyboard
  • Long battery life
  • Easy battery change without dismantling of the device
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical Specifications
  • Purchase order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Electronic position indicator DE04

Technical Specifications

Mechanical data
Electrical data
Ambient conditions
Feature
Technical Specifications
Enhancement
Weight
~0.05  kg
shaft
 Burnished steel (plain bearing)
(≤ ø16H7)
Housing
 plastic
Speed
≤600  min-1
(100% duty cycle)
Feature
Technical Specifications
Enhancement
Battery
 lithium coin cell, 3 V, CR2032 type
~2-year service life
 lithium coin cell, 3 V, CR2477 type
~8-year service life
Display/display range
 5-digit LCD 7-segment, ~8 mm height
-19999 … 99999
Feature
Technical Specifications
Enhancement
Ambient temperature
-10 …  60 °C
Storage temperature
-30 …  80 °C
EMC
 EN 61000-6-2
interference resistance / immission
 EN 61000-6-4
emitted interference / emission
Protection category
 IP51
EN 60529
Shock resistance
300 m/s2, 15 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6
200 m/s2, 100 … 2 kHz
EN 60068-2-6

Purchase order

Ordering information

Note: Highlights in orange are order features.

Note

Please note that the value displayed (=measured value per revolution / display divisor) must be at least 2!

Product configuration

Feature

Select specifications

Enhancement

Select your specifications:

Mounting position *

02

02

02

04

Measured value per revolution *

00002

00002

00002
00002  00002
see calculation of displayed value
90000
90000  90000
see calculation of displayed value
W3600

angle mode 0° ... 360°, resolution 0.1°

"only with comma position ""1"""
Z3600

angle mode -180° ... +180°, resolution 0.1°

"only with comma position ""1"""

decimal place *

0

0

0

0 = 00000

1

1 = 0000.0

2

2 = 000.00

3

3 = 00.000

Display divisor *

1

1

1
10
100
1000
see calculation of displayed value

Counting direction *

i

i

i

clockwise ascending values

e

counter-clockwise ascending values

key pad operation

D

D

D

direct zeroing*

V

zeroing delayed by 5 s*

K

only incremental measurement function

OF

without function keys

hollow shaft/
diameter

14

14

14

ø14 mm

16

ø16 mm

RH6
RH8
RH9.525
RH10
RH12
reducing bushes

Color

O

O

O

orange RAL 2004

S

black RAL 9005

Battery

B2

B2

B2

~2-year service life

B8

~8-year service life

observe technical drawing
* Programmable via ProTool DE programming software

Your order key

DE04 - 02 - 00002 - 0 - 1 - i - D - 14 - O - A - B2
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Data sheet

PDF

DE
EN
ES
ZH
FR

Installation Instructions

PDF

DE | EN

EU-conformity declarations

PDF

DE | EN | FR

Safety specifications sheet

PDF

EN
EN

3D-CAD model

Link/URL

CAD-Modell

CKCA conformity declarations

PDF

EN

Accessories

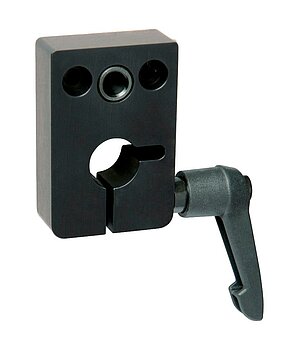

SIKO Global, Clamping plate KPE04
Clamping plate KPE04

  • Contour matching with DE04, AP05 position indicators

  • For shaft diameters 10 … 20 mm

  • Lateral position of the clamping lever

Go to Product

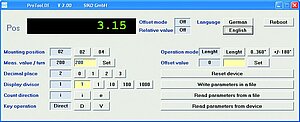

SIKO Global, Programming software ProTool DE
Programming software ProTool DE

  • Parameters can be freely programmed

  • Toggle mode between angle and linear measurement

  • With USB connection cable

Go to Product

Comparable products

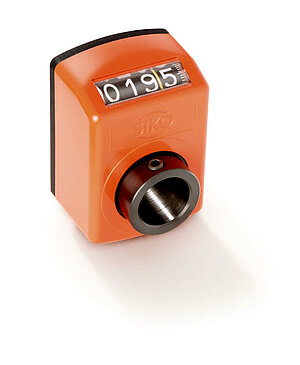

SIKO Global, Digital position indicator DA04
Digital position indicator DA04

  • Hollow shaft, max. Ø 14 mm

  • Counter with 4 decades and fine reading

  • Detent as an option

Go to Product

Scope of delivery

  • DE04
  • Installation Instructions

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
