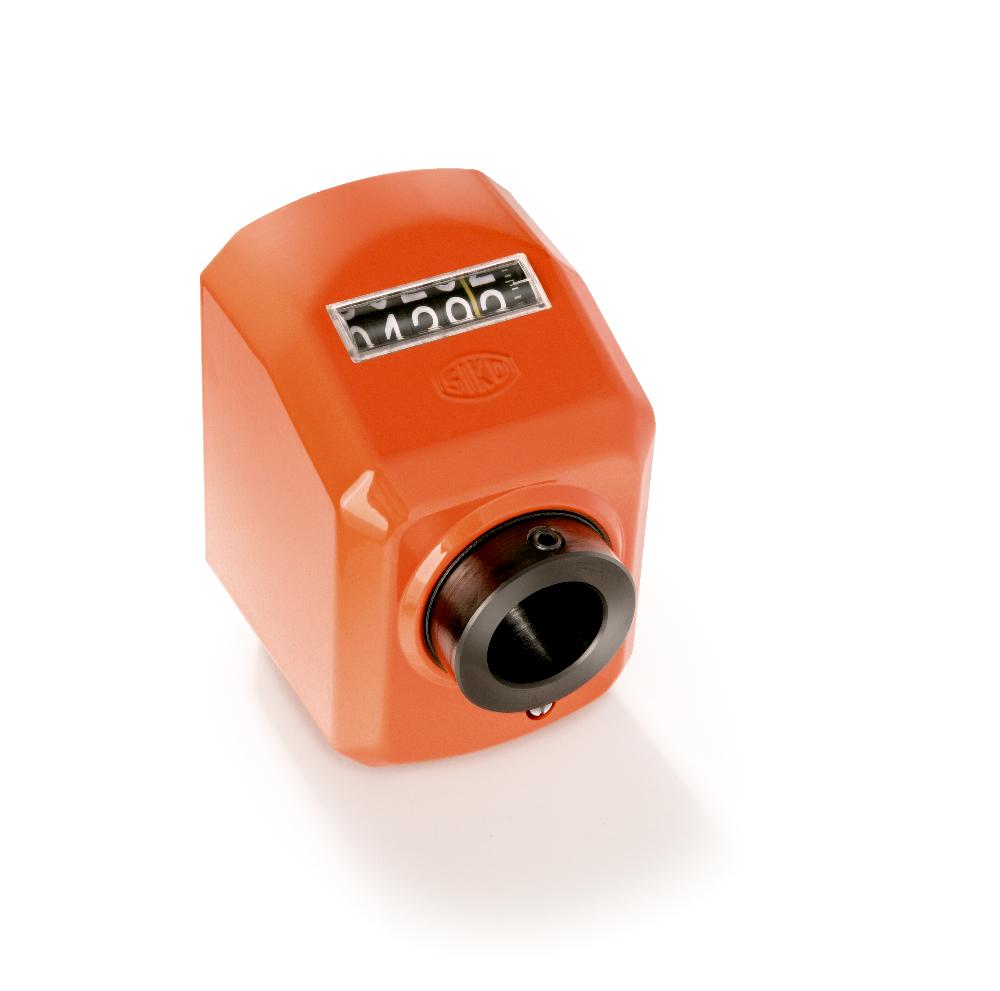

Digital position indicator DA05/1
with fine adjustment
- Robust design in a metal housing
- Hollow shaft, max. Ø 20 mm
- Counter with 5 decades and fine reading
- Display can be designed for “mm” or “inch”
- Attenuated counter system
- Fine setting for correction of dimensions
- Reversible counting direction
Technical drawing
Technical Specifications
max. speed
|
Display (after 1st revolution) |
max. speed [rpm] |
|
00010 |
500 (1500) |
|
00015 |
500 (1000) |
|
00020 |
500 (750) |
|
00025 |
500 (600) |
|
00030 |
500 |
|
00040 |
375 |
|
00050 |
300 |
|
00060 |
250 |
|
00080 |
180 |
|
00100 |
150 |
Note
Speeds >500 rpm must only be run for short periods.
Purchase order
Ordering information
Product configuration
Feature
Select specifications
Enhancement
Mounting position
02
indication after 1st revolution
10
decimal place
0
Counting direction
i
hollow shaft/
diameter
20
Color
O
fine adjustment
FE
slipping clutch
RK
labyrinth seal
OLD
Scope of delivery
- DA05/1
- Installation Instructions
