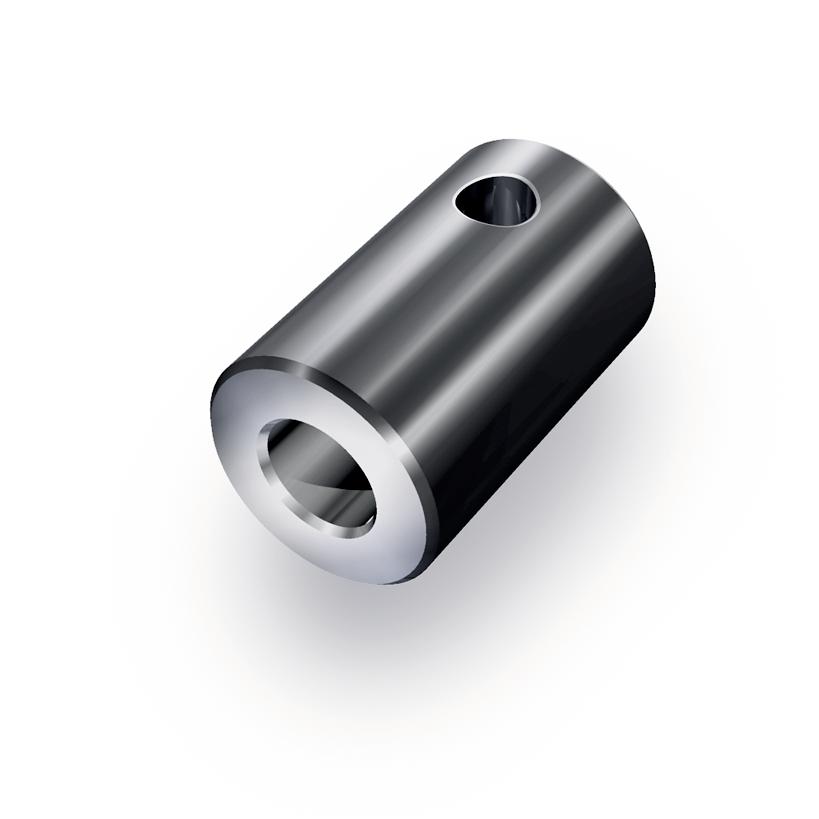

减径套 RH
附件
- 安装简便快捷
- 发篮处理钢材或不锈钢
技术制图
技术数据
|
RH01 |
RH02 |
RH03 |
RH04 |
RH05 |
RH07 |
RH08 |
RH09 |
|
|
匹配指示器 |
DA05/1 DA08 DA09S DE10*** |
DA10* DA10R/1* DE10**** DE10P |
DA10** DA10R/1** |
DA04 DE04 |
KP09P |
DA02 DK05 |
DK01 DK02 |
AP05 AP10*** AP20*** GS04 |
|
ødH7 ，抛光钢材料号 |
6, 6.35, 8, 10, 12, 12.7, 14, 15, 15.875, 16, 17, 18 |
10, 12, 12.7, 14, 15, 16, 18, 19.05, 20, 22, 24, 25, 25.4, 26, 28 |
18, 20, 22 |
4, 5, 6, 6.35, 8, 9.525, 10, 12 |
12, 14, 15, 16, 20 |
6, 6.35, 7, 8 |
5, 6, 6.35, 8, 9, 9.525, 10, 12 |
|
|
ødH7， 不锈钢材料号 |
VA8, VA9.525, VA10, VA12, VA12.7, VA14, VA15, VA15.875, VA16, VA19.05 |
VA12.7, VA20, VA24, VA25, VA25.4 |
VA6.35, VA8, VA9.525, VA10, VA12, VA12.7, VA13 |
VA8 |
VA8, VA9.525, VA10, VA12, VA12.7, VA14, VA15, VA15.875, VA16, VA18, VA19.05 |
注意：橙色突出显示的是订单特征。
订单代码
系统技术配置
特征
选择类型规格
内容补充
安装位置
RH01
内径 d1
…
供货范围
- RH
- 螺纹杆
